SPS5000X Series User Manual
SPS5000X Series
Wide Range Programmable
Switching DC Power Supplies
User Manual
WWW.SIGLENT.COM
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPS5000X Series and is the answer not in the manual?

Questions and answers

Related Manuals for SIGLENT SPS5000X Series

Summary of Contents for SIGLENT SPS5000X Series

  • Page 1 SPS5000X Series User Manual SPS5000X Series Wide Range Programmable Switching DC Power Supplies User Manual WWW.SIGLENT.COM...

  • Page 2: Table Of Contents

    DELIVERY OF THE POWER SUPPLY ....................21 ........................... 21 ENERAL NSPECTION ..........................22 BOUT ARRANTY ........................23 AINTENANCE GREEMENT INTRODUCTION OF SPS5000X SERIES ..................... 24 ......................25 ERFORMANCE AND EATURES .......................... 26 ODEL NTRODUCTION SPS5000X SERIES OVERVIEW ......................27 ............................27 PPEARANCE ............................
  • Page 3 SPS5000X Series User Manual ........................38 Reverse current regenerative load ........................ 38 Reverse current connection method ................................39 Grounding SWITCH ON / OFF AND OUTPUT PORT ..................... 41 ......................... 41 ONNECT THE OWER ............................41 OWER ............................42 OWER ............................43 UTPUT USER INTERFACE..........................
  • Page 4 SPS5000X Series User Manual CONTACT US ............................93 WWW.SIGLENT.COM...

  • Page 5: Introduction

    SPS5000X Series User Manual Introduction This user manual includes important safety and installation information related to the SPS5000X series wide range programmable Switching DC Power Supply and includes simple tutorials for basic operation of the supply. The series includes the following models:...

  • Page 6: Important Safety Information

    SPS5000X Series User Manual Important Safety Information This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition. General Safety Summary Carefully read the following safety precautions to avoid personal injury and prevent damage to the instrument and any products connected to it.

  • Page 7: Safety Terms And Symbols

    SPS5000X Series User Manual local SIGLENT dealer immediately. Do not operate in wet/damp conditions. Do not operate in an explosive atmosphere. Keep the surface of the instrument clean and dry. Anyone operating this equipment should refer to the instruction manual to understand the protection afforded by the equipment.

  • Page 8: Working Environment

    SPS5000X Series User Manual CAUTION The "CAUTION" symbol indicates a potential hazard. It calls attention to a procedure, practice, or condition which may be dangerous if not followed. Do not proceed until its conditions are fully understood and met. WARNING The "WARNING"...
  • Page 9 SPS5000X Series User Manual Non-operating: ≤ 15,266 m Overvoltage category This product is intended to be powered by MAINS that comply with Overvoltage Category II, which is typical of cord-and-plug connected equipment. Note: Measurement Category II. For measurements performed on circuits directly connected to the low-voltage installation.

  • Page 10: Cooling Requirements

    SPS5000X Series User Manual IP20 (as defined in IEC 60529). Cooling requirements This instrument relies on forced air cooling with internal fans and ventilation openings. Care must be taken to avoid restricting the airflow around the apertures (fan holes) at the back of the power supply. Please keep good ventilation when using, and regularly check the vents and fans.

  • Page 11: Cleaning

    N. Wire connections must be made by a professional. If you have questions, please refer to the instructions or contact your local SIGLENT dealer. Cleaning Clean only the exterior of the instrument, using a damp, soft cloth. Do not use chemicals or abrasive elements.

  • Page 12: Abnormal Conditions

    SPS5000X Series User Manual Warning: Electrical Shock Hazard! No operator serviceable parts inside. Do not remove covers. Refer servicing to qualified personnel Abnormal conditions Only operate the instrument for the purposes specified by the manufacturer. Do not operate the power supply if there are any visible signs of damage or if it has been subjected to severe transport stresses.
  • Page 13 SPS5000X Series User Manual Documentation conventions For the symbols appearing in the subsequent text, the convention with a represents the menu option on the front panel of the machine, the convention with represents the menu option displayed by the machine, and the convention with represents the selected item of the machine menu.

  • Page 14: Informations Essentielles Sur La Sécurité

    SPS5000X Series User Manual Informations essentielles sur la sécurité Ce manuel contient des informations et des avertissements que les utilisateurs doivent suivre pour assurer la sécurité des opérations et maintenir les produits en sécurité. Exigence de Sécurité Lisez attentivement les précautions de sécurité ci - après afin d 'éviter les dommages corporels et de prévenir les dommages aux instruments et aux...
  • Page 15 SPS5000X Series User Manual Le potentiel de la ligne de signaux est égal à la terre, de sorte que la ligne de signaux ne doit pas être connectée à une haute tension.Ne touche pas les contacts ou les composants nus.

  • Page 16: Termes Et Symboles De Sécurité

    SPS5000X Series User Manual Termes et symboles de sécurité Lorsque les symboles ou termes suivants apparaissent sur le panneau avant ou arrière de l'instrument ou dans ce manuel, ils indiquent un soin particulier en termes de sécurité. Ce symbole est utilisé lorsque la prudence est requise. Reportez- vous aux informations ou documents joints afin de vous protéger...
  • Page 17 SPS5000X Series User Manual Cet instrument est utilisé à l 'intérieur des locaux et doit être utilisé dans un environnement propre et sec. Température ambiante En fonctionnement: 0 ℃ à +40 ℃ Hors fonctionnement: -20 ℃ à +60 ℃ Note: pour évaluer la température de l'environnement, il convient de tenir...

  • Page 18: Exigences De Refroidissement

    SPS5000X Series User Manual La catégorie II d'installation (surtension) est un niveau de signal applicable aux terminaux de mesure d' équipement reliés au circuit source.Dans ces bornes, des mesures préventives sont prises pour limiter la tension transitoire à un niveau inférieur correspondant.

  • Page 19: Connexions D'alimentation Et De Terre

    SPS5000X Series User Manual Ne bloquez pas les orifices de ventilation de l ATTENTION: 'arrière de l' alimentation. Ne laisse aucun objet étranger entrer dans l ATTENTION: 'alimentation électrique, par exemple par le trou de ventilation. Connexions d'alimentation et de terre L'instrument fonctionne avec une alimentation CA monophasée de 100 à...

  • Page 20: Nettoyage

    N. Le câblage doit être effectué par un professionnel.Si vous avez des questions, consultez les instructions ou contactez votre revendeur siglent local. Nettoyage Nettoyez uniquement l'extérieur de l'instrument à l'aide d'un chiffon doux et humide.

  • Page 21: Conditions Anormales

    SPS5000X Series User Manual Conditions anormales Utilisez l'instrument uniquement aux fins spécifiées par le fabricant. N'utilisez pas la lunette s'il y a des signes visibles de dommages ou si elle a été soumise à de fortes contraintes de transport. Si vous doutez que la protection de l 'alimentation électrique soit compromise, désactivez la ligne d' alimentation et fixez l 'appareil afin d' éviter toute...

  • Page 22: Delivery Of The Power Supply

    SPS5000X Series User Manual Delivery of The Power Supply General Inspection Note: Before your first use of the equipment, please check the condition using the steps below. • Inspection of transport packaging If it is found that the packing box or foam plastic pad is seriously damaged, please save it for subsequent inspection.

  • Page 23: About Warranty

    SPS5000X Series User Manual About Warranty The power supply has a 3-year warranty for normal use and operation from the date of delivery. SIGLENT may repair or choose to replace any product returned to the authorized service center during the warranty period. But to do so, we...

  • Page 24: Maintenance Agreement

    SPS5000X Series User Manual Maintenance Agreement We provide various services based on individual maintenance agreements. We offer extended warranties which can extend the warranty period beyond the standard period. We provide installation, training, enhancement and on-site maintenance and other services through a dedicated supplemental support agreement.

  • Page 25: Introduction Of Sps5000X Series

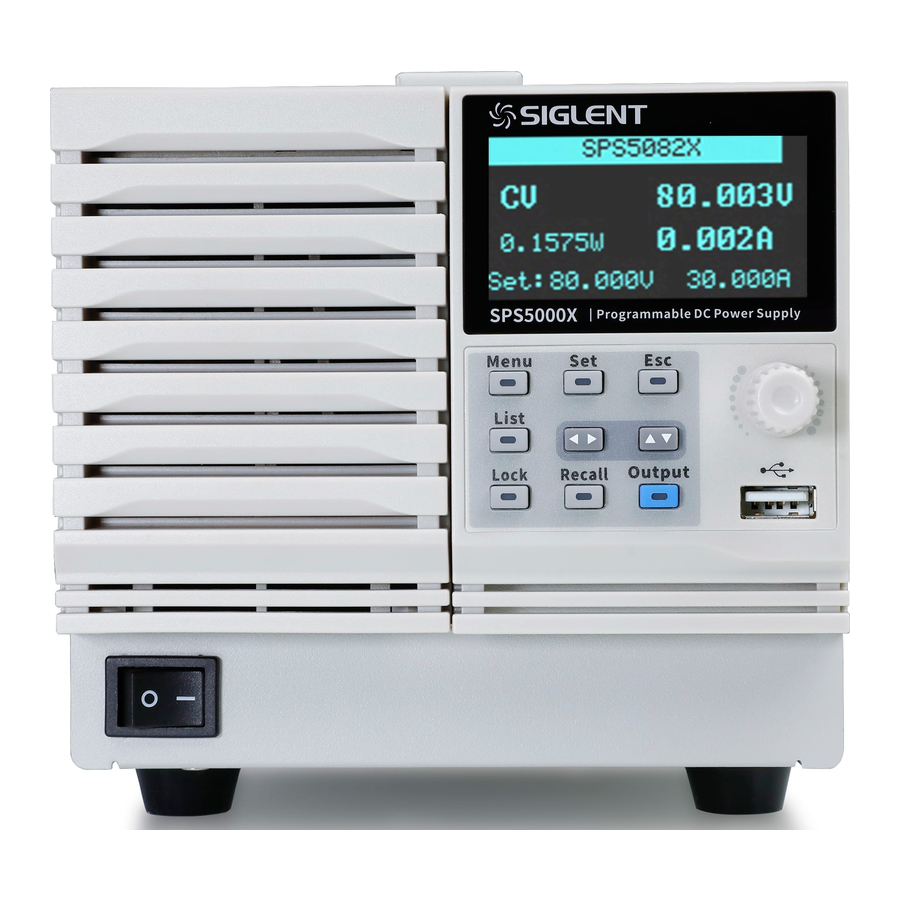

    SPS5000X Series User Manual Introduction of SPS5000X Series The SIGLENT SPS5000X series is a programmable DC switching power supply with single/multiple outputs and constant power features. The series includes 15 models, with 40 V, 50V, 80 V, 160 V rated output voltage values and 180W, 360 W, 720 W, 1080 W maximum output power levels.

  • Page 26: Performance And Features

    SPS5000X Series User Manual Performance and Features Rated voltage: 40 V, 50V, 80 V, 160 V Rated output power: 180W, 360 W, 720 W, 1080 W Constant power output, a wide range of voltage and current outputs, high efficiency switching power supply CV, CC priority mode selection, better protection for the circuit/DUT Fast recovery time, <...

  • Page 27: Model Introduction

    SPS5000X Series User Manual Model Introduction The SPS5000X series includes 16 models, with four voltage output types of 40V / 50V / 80V / 160V, with up to three output channels: Model Type Channels Voltage (V) Current (A) Power (W)

  • Page 28: Sps5000X Series Overview

    SPS5000X Series User Manual SPS5000X Series Overview Appearance The SPS5000X series has three different appearance panels, distinguished by TypeⅠ, TypeⅡ/TypeⅣ, TypeⅢ/TypeⅤ: TypeⅠ TypeⅡ/TypeⅣ TypeⅢ/TypeⅤ WWW.SIGLENT.COM...
  • Page 29 SPS5000X Series User Manual Screen All SPS supplies include a 2.4-inch OLED display for displaying system output status, system parameter settings, menu options, and promotion information. Button Used to view system information and configure power parameters. In the main interface, press this key to select and set the output voltage value or output current value.

  • Page 30: Rear Panel

    SPS5000X Series User Manual Direction knob When setting parameters, turn the knob to increase or decrease the value at the cursor. When setting objects (voltage or current, operation mode, internal resistance configuration, etc.), rotate the knob to quickly move the cursor position or switch...
  • Page 31 SPS5000X Series User Manual Type Ⅲ Type Ⅳ Type Ⅴ Analog connector port Output for the monitor signals of voltage and current output. Also used for analog control of the current and voltage outputs. This interface can be connected to a PC for remote communication via USB using the USBTMC protocol.
  • Page 32 SPS5000X Series User Manual The temperature-controlled fan effectively dissipates the heat of the power supply line over all operating conditions. LAN port Supplies a connection between the power supply and a LAN. SPS5000X conforms to the VXI-11 instrument standard and supports Socket-based and remote commands, and remote control.

  • Page 33: Theory Of Operation

    SPS5000X Series User Manual Theory of Operation This chapter introduces the function and principles of operating the SPS5000X series power supply. Operating Area Description SPS5000X are DC switching power supplies with high voltage and current output. All models have continuous voltage (CV) and continuous current (CC) output control modes with working ranges limited only by the output power.

  • Page 34: Cc And Cv Mode

    SPS5000X Series User Manual CC and CV Mode When the power supply is operating in CV mode, the load receives a constant voltage, and the current output changes with the load. When the load resistance is too low to maintain the constant voltage, the power supply switches to CC mode, and the current limit remains constant.

  • Page 35: Slew Rate

    SPS5000X Series User Manual Slew Rate The slope of CV and CC mode can be selected to limit the voltage and current consumption. The slope setting is divided into high-speed priority and slope priority. The high-speed priority mode does not allow setting the slope in CV or CC mode, while the rising and falling slopes can be set independently in the slope priority mode.

  • Page 36: Internal Resistance

    SPS5000X Series User Manual The bleeder resistor is turned on by default. In battery Note charging applications, make sure to turn off the bleeder resistor when the instrument is turned off because the bleeder resistor will discharge the connected battery.

  • Page 37: Alarms

    SPS5000X Series User Manual SPS Model Internal Resistance Range SPS5041X 0 ~ 1.5 Ω SPS5042X 0 ~ 0.75 Ω SPS5043X 0 ~ 0.5 Ω SPS5044X 0 ~ 1.5 Ω SPS5045X 0 ~ 1.5 Ω SPS5051X 0 ~ 6 Ω SPS5081X 0 ~ 6 Ω...

  • Page 38: Considerations

    SPS5000X Series User Manual the load from being damaged by high current and triggers the output to be disconnected. Overtemperature protection function can prevent the instrument from overheating damage automatically disconnect the output. Alarm output The alarm output is a separate open collector photocoupler output.

  • Page 39: Pulsed Or Peaked Loads

    SPS5000X Series User Manual Pulsed or Peaked loads The load is subject to current peaks or pulses, and the maximum current may exceed the average current value. The power supplies only display the average current value. For pulsed current loads, the actual current may be greater than the displayed value.

  • Page 40: Grounding

    SPS5000X Series User Manual current may flow into the power supply. To prevent damage to the power supply, connect a reverse protection diode in series between the power supply and the load. Ensure that the reverse voltage of the protection diode...
  • Page 41 SPS5000X Series User Manual voltage of the power supply. Grounded output terminal If the positive/negative terminal is connected to the protective ground terminal, the insulation capacity required by the load and the load line will be greatly reduced. The insulation capacity only needs to be greater than the maximum output voltage of the power supply.

  • Page 42: Switch On / Off And Output Port

    SPS5000X Series User Manual Switch On / Off and Output Port Connect the Power Cord Type I / type II / type IV supplies have a power interface with a 10 A input port: use the power cord provided to connect to the socket on the rear panel.

  • Page 43: Power Off

    SPS5000X Series User Manual When the switch is in 1 state, it means that the switch is on. At this time, if there is sufficient AC power from MAINS, the power supply is in the on state. The power supplies generate an inrush current when turned on.

  • Page 44: Output Port

    SPS5000X Series User Manual Output Port Before connecting the output terminal to the load, consider the cable specifications and the maximum voltage of the load. Connect the output terminal and load line with M4 screw or M8 bolt (> 30A). If remote voltage measurement is used, remove the connection terminals on S +, S - and output, and connect the S +, S - detection lines to the load.

  • Page 45: User Interface

    SPS5000X Series User Manual User Interface According to different output channels, the SPS5000X series has different user interfaces. TypeⅠ/TypeⅡ/TypeⅢ Type IV Type Ⅴ: ① Type I/Type II/Type III are single-channel models. The status bar here displays the machine model information. If it is multi-channel, the status of each channel is displayed here.
  • Page 46 SPS5000X Series User Manual Type V is a three-channel model: Three channels of CH1, CH2, and CH3 are displayed. ② Display the current status of the power supplies. The symbol display and meaning of the power supply are as follows:...
  • Page 47 SPS5000X Series User Manual ⑦ Output current value, take the average value of current. ⑧ Current setting value, you can set the size of the output current value. Method: Press the Set key to switch the cursor position, press the...

  • Page 48: Basic Operation

    SPS5000X Series User Manual Basic Operation This chapter will introduce the functions and operation methods of the control panel of SPS5000X in detail so that you can have a more comprehensive understanding of the SPS5000X for better work. System Settings View Version Information Operation method: Press menu →...

  • Page 49: Restore Default

    SPS5000X Series User Manual Restore Default Operation method: After pressing Menu → 1.System → 2.Default Setting on the front panel, press the knob on the interface, turn the knob to select and press the knob to confirm, and automatically return to the main interface after successful setting.
  • Page 50 SPS5000X Series User Manual Parallel 2 units: The master set to Master/Parallel2, two slaves set to Slave/Parallel. One set in series: Schematic diagram of analog interface wiring. Slave unit Load Master unit Two units in parallel: Schematic diagram of analog interface wiring.
  • Page 51 SPS5000X Series User Manual Parallel or Series among channels 1) The SPS5000X dual-channel model supports two-channel series-parallel mode and expands the output capabilities. There are two connection modes of CH1/CH2 series connection and CH1/CH2 parallel connection between the two channels. Only CH1 channel can be used as the master, and the other channels can be used in slave mode.
  • Page 52 SPS5000X Series User Manual Combination modes between three channels: CH1/CH2/CH3 output separately, CH1/CH2 in series, CH1/CH2 in parallel, and CH1/CH2/CH3 in parallel. Setting method: Menu → 1.System → 5.M/S mode settings to enter the setting interface, press in the interface to switch between CH1/CH2/CH3.

  • Page 53: Function Settings

    SPS5000X Series User Manual Function Settings Set List Function 1) Single-channel models Press the List key directly on the operation panel to enter the List setting interface, and press the List key again to exit the List mode: ① Display model, not editable.
  • Page 54 SPS5000X Series User Manual When the power supply is set to CC mode priority, here is the current slope. When set to CV priority, this is the voltage slope. Setting method: In the List setting interface, move the cursor to here, turn the knob to change the level, and press the knob to confirm the setting.

  • Page 55: Set Ocp/Ovp

    SPS5000X Series User Manual For other settings, refer to the single-channel output model method. During List output, press the knob to pause the time, and press the knob again to continue the output countdown. 3-channel List mode output example Set OCP/OVP Setting method: Menu →...

  • Page 56: Set Cc/Cv Priority

    SPS5000X Series User Manual Press the knob in the interface, turn the knob to switch the Off/On options, press the knob to confirm and the setting takes effect. Set CC/CV Priority The SPS5000X operation mode can be set to select CC high-speed priority, CC slope priority, CV high-speed priority, and CV slope priority.

  • Page 57: Set Ouput On/Off Delay Time

    SPS5000X Series User Manual Set Output On/Off Delay Time The SPS5000X can be set to turn on the output delay function and turn off the output delay function. Setting method: menu → 2.Configure → 4.Output delay to enter the setting interface. In the interface, press the knob to display a cursor, press...

  • Page 58: Set Measurement Verage

    SPS5000X Series User Manual Set Measurement Accuracy The SPS5000X has three measurement accuracy modes to choose from: Low, Mid and High. When Low is selected, the measurement rate is the fastest but has less accuracy. High is the slowest measurement, but more accuracy. High is selected by default.
  • Page 59 SPS5000X Series User Manual ◆ External resistance control voltage output: The operation method is the same as (external voltage control voltage output), select and confirm External resistance control voltage output ◆ External voltage control current output: Setting method: Menu → 2.Configure → 8.Current control , press the...

  • Page 60: External Control Output On/Off

    SPS5000X Series User Manual External resistance control current output External Control Output On/Off When set to ON, the Output button on the front panel is invalid. The output is controlled by the rear analog interface pin15 low-level effective control, and the reference ground is pin 2 (COM).

  • Page 61: Multi-Channel Settings

    SPS5000X Series User Manual Use relay switch If you use a switch to control multiple instruments, make sure that each instrument is independent and use a relay Note to complete the operation. Setting method: Menu → 2.Configure → 9.Ext on/off to enter the setting interface.

  • Page 62: Analog Interface

    SPS5000X Series User Manual turned on, the channel outputs according to the voltage and current values set by the List. The figure shows that the CH2 and CH3 channels are Off. Analog Interface Pin Number Description The shutdown signal will turn off the output when a low TTL signal is applied.
  • Page 63 SPS5000X Series User Manual Used when operating 2 or more units in parallel. Current sum output signal when used in parallel mode. Master unit current sum input signal from the first slave CURRENT SUM OUTPUT. Used in parallel mode only.

  • Page 64: Communication Interface Settings

    SPS5000X Series User Manual A voltage of 0~10V is used to control the full-scale current output (0%~100%) of the instrument External resistance control of the current output. A resistance of 0kΩ ~ 10kΩ is used to control the full-scale current output (0%~100%) of the instrument.
  • Page 65 SPS5000X Series User Manual ◆ GPIB Setting method: Menu → 3. Communication → 2. GPIB enters the setting interface, press the knob to display a cursor, turn the knob to change the value, and press the knob to make the setting effective.

  • Page 66: Remote Control

    SPS5000X Series User Manual Remote Control The SPS5000X supports communication with a computer via USB, LAN, and GPIB-USB interfaces using a SCPI (Standard Commands for Programmable Instruments) compliant command set. This chapter will introduce how to build a programming environment and explain the SCPI commands supported by the SPS5000X.

  • Page 67: Grammatical Conventions

    SPS5000X Series User Manual Users can also use Sockets to communicate with SPS5000X based on the TCP/IP protocol through the network port. Socket communication is a basic communication technology of computer networks, which allows applications to communicate through network hardware and standard network protocol mechanisms built into the operating system.

  • Page 68: Command Summary

    SPS5000X Series User Manual Among them, the keyword VOLTage. You can enter VOLT or VOLTage, and combine upper and lower case letters at will. Therefore, VolTaGe, volt, and Volt are all acceptable. Other formats (such as VOL and VOLTAG) will produce errors.

  • Page 69: Ieee Common Command Subsystem

    SPS5000X Series User Manual Command Description IEEE Common Command Subsystem *IDN? Command format: *IDN? Description: Get device information string (return string content includes: manufacturer, device model, device serial port number, software version number) E.g: *IDN? Response: Siglent Technologies,SPS5082X,SPS5X2006005,3.1.1.5\n *RST Command format: *RST Description: Restore the state of the device to the initial state.
  • Page 70 SPS5000X Series User Manual E.g: *ESE? Response: 64 *ESR? Command format: *ESR? Description: Query and clear the event value of the standard event status register. E.g: *ESR? Response: 0 *OPC Command format: *OPC Description: Operation complete. E.g: *OPC *OPC? Command format: *OPC? Description: Query whether the current operation is complete.

  • Page 71: Measure Command Subsystem

    SPS5000X Series User Manual E.g: *SRE? Response: 24 *STB? Command format: *STB? Description: Query the event value of the status byte register E.g: *STB? Response: 72 *TST? Command format: *TST? Description: Query the result of instrument self-test E.g: *TST? Response: 0...
  • Page 72 SPS5000X Series User Manual Command format: [:SOURce]:VOLTage[:SET]? (CHn) Description: Get the set voltage value of the selected channel E.g: :SOURce:VOLTage:SET? CH1 Response: 3.000000\n Obtain the measured voltage value Command format: MEASure:VOLTage? (CHn) Description: Get the voltage measurement value of the selected channel E.g: MEASure:VOLTage? CH1...

  • Page 73: Configure Configuration Command Subsystem

    SPS5000X Series User Manual E.g: MEASure:POWER? CH1 Response:19.959515\n Get the running status of the channel Command format: MEASure[:RUN]:MODE? (CHn) Description: Get the running status of the selected channel E.g: MEASure:RUN:MODE? CH1 Response: CV\n Configure Configuration Command Subsystem Set OVP value Command format: [:SOURce]:OVP (CHn) ,{<value>...
  • Page 74 SPS5000X Series User Manual Set OCP switch state Command format: SYStem:OCP:STATe {ON | OFF | 0 | 1} Description: Set the ocp switch state of the selected channel E.g: SYStem:OCP:STATe CH1, 1 Description: Set to open OCP function Command format: SYStem:OCP:STATe? (CHn) Description: Get the ocp switch status of the selected channel E.g: SYStem:OCP:STATe? CH1...
  • Page 75 SPS5000X Series User Manual Set current rising slope Command format: [:SOURce]:CURRent:RISE:SLOPe (CHn) ,{<value> | MINimum | MAXimum |DEFault} Description: sSet the current rising slope value of the selected channel E.g: :SOURce:CURRent:RISE:SLOPe CH1,8 Description: Set the current rising slope of CH1 channel to 8A/s...
  • Page 76 SPS5000X Series User Manual E.g: :SOURce:VOLTage:RESPonse:MODE? CH1 Response: Slope priority\n Set current response change mode Command format: [:SOURce]:CURRent [:RESPonse]:MODE (CHn), {FAST| SLOPE} Description: Set the current response change mode of the selected channel (FAST / SLOPE) E.g: :SOURce:CURRent:RESPonse:MODE CH1, FAST...
  • Page 77 SPS5000X Series User Manual Description: Set the current control mode of the selected channel (LOCAL| EXT_V | EXT_R | EXT_R_MAX) E.g: :SOURce:CTRL:CURRage:MODE CH1, LOCAL Description: Set CH1 channel current control mode to LOCAL mode Command format: [:SOURce]:CTRL:CURRage:MODE? (CHn) Description: Get the current control mode of the selected channel E.g: :SOURce:CTRL:CURRage:MODE? CH1...
  • Page 78 SPS5000X Series User Manual Set output ON delay Command format: [:SOURce]: OUTPut:ON:DELay (CHn) ,{<value> | MINimum | MAXimum |DEFault} Description: Set the delay time of the output ON of the selected channel E.g: OUTPut:ON:DELay CH1,3 Description: Set the output ON delay to 3 seconds...
  • Page 79 SPS5000X Series User Manual Response: 1\n Set external output enable state Command format: [:SOURce]:OUTPut:LOCAL:ENable (CHn) , {ON | OFF | 0 | 1} Description: Set the external output enable state of the selected channel (ON | OFF | 0 | 1) E.g: OUTPut:LOCAL:ENable CH1,0...

  • Page 80: List Configuration Command Subsystem

    SPS5000X Series User Manual E.g: PRIOrityq? Response: CC\n Set the measurement average Command format: SYStem:MEASure:AVERage { LOW| MIDDLE| HIGH} Description: Set the average measurement value (LOW| MIDDLE| HIGH) E.g: SYStem:MEASure:AVERage LOW Command format: SYStem:MEASure:AVERage? Description: Get average measurement value E.g: SYStem:MEASure:AVERage?
  • Page 81 SPS5000X Series User Manual Description: Get the List mode status of the selected channel E.g: LIST? CH1 Response: 1\n Set the total number of steps in List Command format: [:SOURce]:LIST:STEP (CHn) , {<value> | MINimum | MAXimum |DEFault} Description: Set the number of List steps of the selected channel E.g: LIST:STEP CH1,2...
  • Page 82 SPS5000X Series User Manual Description: Set the current setting value of the current step number of the selected channel List E.g: LIST:CURRent CH1,1,5 Description: Set the current value of step 1 to 5A Command format: [:SOURce]:LIST:CURRent? (CHn) , <step> Description: Get the current setting value of the current step number of the selected channel List E.g: LIST:CURRent? CH1,1...

  • Page 83: System Configuration Command Subsystem

    SPS5000X Series User Manual Description: Get the delay time of the current step number of the selected channel List E.g: LIST:DELAy? CH1,1 Response:9.000000\n Set the slope of the specified number of steps Command format: [:SOURce]:LIST:SLOPe (CHn) , <step>,{<value> | MINimum |...
  • Page 84 SPS5000X Series User Manual Set warning sound Command format: MENU:SOUNd:ALARm {ON | OFF | 0 | 1} Description: Set warning sound switch state E.g: MENU:SOUNd:ALARm 1 Description: Set warning sound on Command format: MENU:SOUNd:ALARm? Description: Get warning sound switch status E.g: MENU:SOUNd:ALARm?
  • Page 85 SPS5000X Series User Manual Command format: LAN:IPADdress? Description: Get IP address E.g: LAN:IPADdress? Set the subnet mask Command format: LAN:SMASk <value> Description: Set the subnet mask E.g: LAN:SMASk 255.255.255.0 Command format: LAN:SMASk? Description: Get the subnet mask E.g: LAN:SMASk? Set up the gateway Command format: LAN:GATeway <value>...
  • Page 86 SPS5000X Series User Manual Command format: GPIB:ADDRess? Description: Get GPIB address E.g: GPIB:ADDRess? Restore factory settings data Command format: FACTory:RESET Description: Restore factory settings data E.g: FACTory:RESET Restore default data Command format: DEFAult:RESET Description: Restore default setting data E.g: DEFAult:RESET...

  • Page 87: Web Service

    SPS5000X Series User Manual Web Service The SPS5000X can be remotely controlled through its embedded web control interface. The first connection method: The PC computer is not connected to the network, and the SPS5000X and the PC computer are directly connected through a network cable(cross-over cable).
  • Page 88 SPS5000X Series User Manual Select [Use the following IP address] to set the IP address, subnet mask and default gateway, and click OK after setting The PC computer setting is completed. ① Set an IP address different from SPS ② Set the same subnet mask as SPS ③...
  • Page 89 SPS5000X Series User Manual SPS and PC are connected to the same network, SPS can automatically obtain IP or manually change the IP address to be connected. Web interface After obtaining the IP address of the SPS5000X by any of the above methods, open the Google browser on the PC and directly enter the IP address in the input field to enter.
  • Page 90 SPS5000X Series User Manual 3) Set the voltage and current parameters of each step, and click Download after the output is completed to send the List data to the power supply 4) Turn on the Output switch of the channel and click Submit. After the setting is successful, the power supply sets the output according to the number of List steps, and the setting is completed.
  • Page 91 SPS5000X Series User Manual Operating: Click [Configure] in the left column to switch to the configuration interface If it is a multi-channel model, select the channel to be configured at the top bar. After performing function configuration on the Configure interface, you need to click Submit at the arrow to send the data to the power supply.

  • Page 92: Troubleshooting

    SPS5000X Series User Manual Troubleshooting The following lists the power supply in the use of the process of possible failures and troubleshooting. When you encounter these faults, please follow the corresponding steps to deal with them. If you can't handle them, please contact siglent in time.
  • Page 93 ➢ Make sure that the flash-type U disk is used, and the power supply does not support hard disk-type U disk devices. ➢ Re-plug the U disk, or restart the power and insert the U disk again. ➢ If you still cannot use the U disk normally, please contact SIGLENT. WWW.SIGLENT.COM...
  • Page 94 SPS5000X Series User Manual Contact Us Asia/Headquarters SIGLENT TECHNOLOGIES CO., LTD. Address: Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China. Tel:400-878-0807 E-mail:Service@siglent.com Website: Http://www.siglent.com North America SIGLENT TECHNOLOGIES North America Address: 6557 Cochran Rd, Solon, OH 44039 Tel:440-398-5800 E-mail: info@siglentna.com...
