SIGLENT SPS5000X Series Quick Start Manual

Wide range programmable switching dc power supply
Hide thumbs Also See for SPS5000X Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SPS5000X Series
Wide Range Programmable
Switching DC Power Supply
QuickStart

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPS5000X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT SPS5000X Series

Summary of Contents for SIGLENT SPS5000X Series

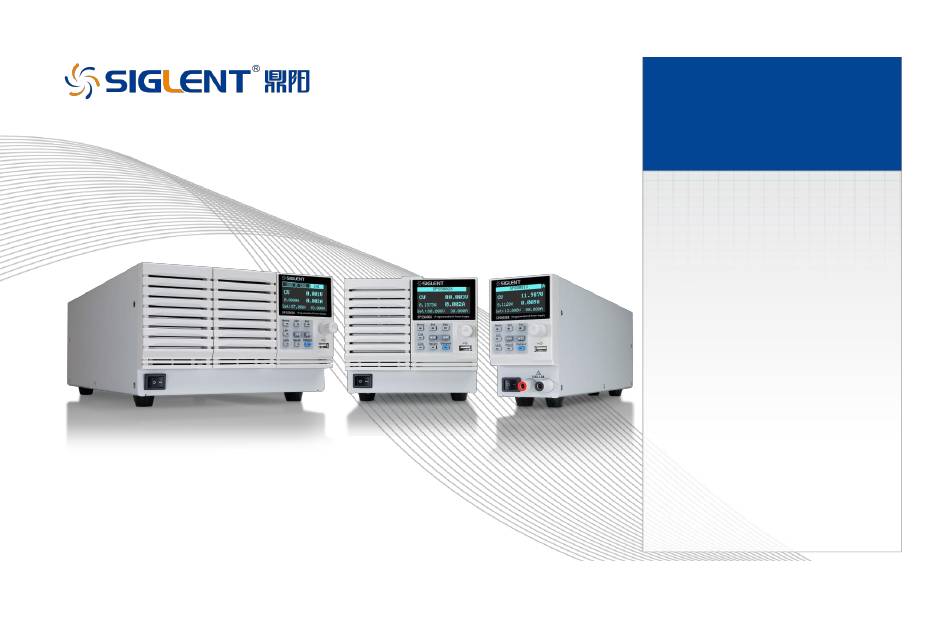

  • Page 1 SPS5000X Series Wide Range Programmable Switching DC Power Supply QuickStart...

  • Page 3: Table Of Contents

    Contents Copyright Notice Safety Guidelines General Inspection Preparation Before Use Quick Start Front Panel Back Panel User Interface Basic Operation Remote More Information Troubleshooting SPS5000X QuickStart - 1...

  • Page 4: Copyright Notice

    Without the consent of the company, the contents of this manual may not be copied, excerpted or translated in any form or method. Product certification SIGLENT certified that this product meets China's national product standards and industry product standards, and further certified that this product meets the relevant standards of other international standards organization members.

  • Page 5: Safety Guidelines

    Safety Guidelines Understand the following safety precautions to avoid personal injury and prevent damage to this product or any other products connected to it. In order to avoid possible dangers, please use this product in accordance with regulations. Only qualified technicians can perform maintenance procedures. Prevent fire or personal injury.

  • Page 6: General Inspection

    Check the whole machine If the external damage of the instrument is found and the corresponding test fails, please contact the SIGLENT distributor or local office responsible for this business. SIGLENT will arrange for repair or replacement of the new machine.

  • Page 7: Preparation Before Use

    Preparation Before Use Connect AC power According to the machine you get, please use the power cord provided in the accessories to connect to the power source as follows. Figure 1- 1 Type Ⅰ Figure 1- 2 Ty pe Ⅱ Connection method TypeⅠ...

  • Page 8: Quick Start

    Quick Start Technical specifications For detailed technical specifications, please refer to the data sheet of SIGLENT's official website (www.siglent.com) The main parameters Number of output channels 1/2/3 Output voltage 40V/50V/80V/160V Output current 7.5A/10A/15A/22.5A/30A/45A/60A/90A Output power 180W/360W/720W/1080W Power ratio 3.33 Standard accessories:...
  • Page 9 The SPS5000X series includes 16 models, with 4 voltage output types: 40V/50V/80V/160V, with up to three output channels: Model Type Channel Rated voltage (V) Rated current(A) power(W) number(/CH) Ⅰ SPS5041X 0~40 0~30 Ⅱ SPS5042X 0~40 0~60 Ⅲ SPS5043X 0~40 0~90 1080 Ⅳ...

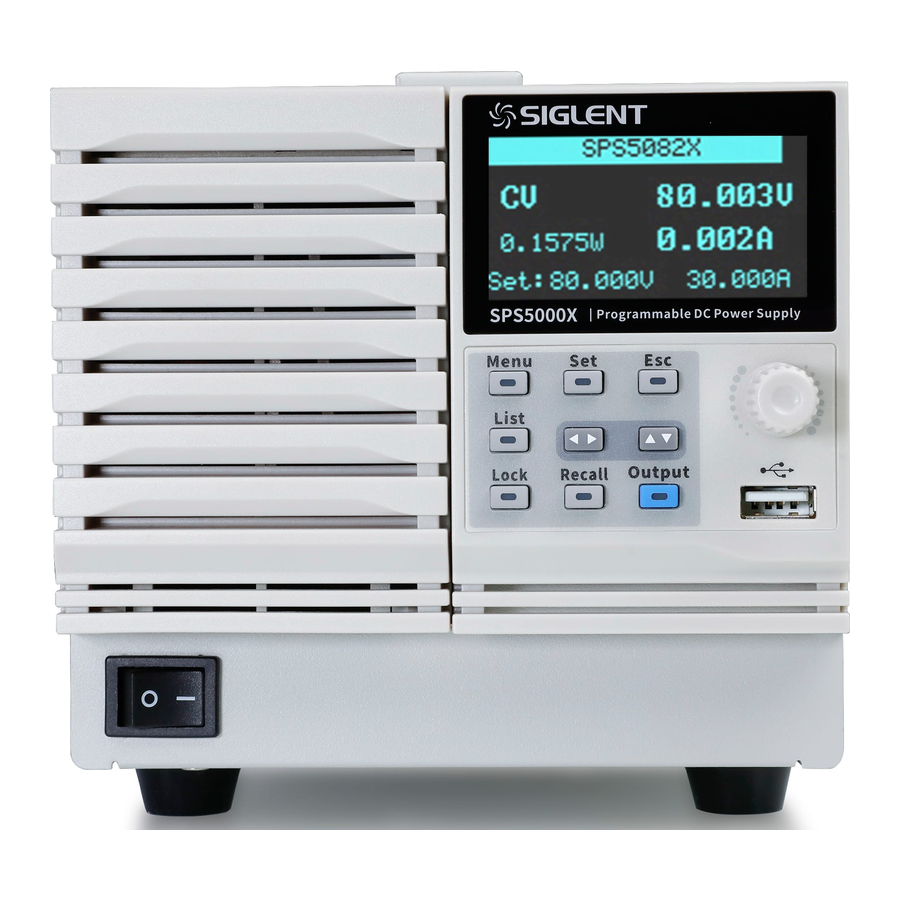

  • Page 10: Front Panel

    Front Panel Type Ⅲ/TypeⅤ： SPS5000X QuickStart - 8...
  • Page 11 Type Type /Type Screen Equipped with a 2.4-inch OLED display for displaying system output status, system parameter settings, menu options, and promotion information. SPS5000X QuickStart - 9...
  • Page 12 Button Used to view system information and configure power parameters. In the main interface, press this key to select and set the output voltage value or output current value. Press this key in the function area to enter the next menu, which is equivalent to the confirm key. Press Menu to enter the menu list, press this key to return to the previous menu.
  • Page 13 Direction knob When setting parameters, turn the knob to increase or decrease the value at the cursor. When setting objects (voltage or current, operation mode, internal resistance configuration, etc.), rotate the knob to quickly move the cursor position or switch options, press the knob to set the current parameters, rotate the knob to increase or decrease the value at the cursor, and press again to make the current setting effective.

  • Page 14: Back Panel

    Back Panel Type Ⅴ: SPS5000X QuickStart - 12...
  • Page 15 TypeⅠ: TypeⅡ: SPS5000X QuickStart - 13...
  • Page 16 Analog connector port Used to detect the output of voltage and current, and also used for analog control of current and voltage output. USB Device port This interface can be connected to a PC to realize USBTMC communication, and control the power supply by sending commands through the upper computer software.

  • Page 17: User Interface

    User Interface The SPS5000X series has three different user interfaces according to different output channels: ① For single-channel models, the status bar here displays the machine model information, if it is multi-channel, the status of each channel is displayed here.
  • Page 18 ⑦ The output current value of the power supply ⑧ The setting value of the current, you can set the size of the output current value, Operation method: Press the Set key to switch the cursor position, press the left and right direction keys to switch the cursor to the number odigits, turn the knob to increase or decrease the value, press the knob to confirm.
  • Page 19 ⑥ Slope. The same rising and falling slope of the current step. ⑦ Number of List groups in the current setting interface, 01 means the first group. Setting method: In the List setting interface, press the key when the cursor is hidden to switch the current group number interface. ⑧...

  • Page 20: Basic Operation

    Basic Operation View system information Users can view the system information through Menu -> System -> Version, and the contents to be viewed include: ⚫ Boot times ⚫ Supplier name ⚫ Product model ⚫ Specifications ⚫ Serial number ⚫ Software version ⚫...
  • Page 21 List setting For single-channel models, press the List key on the panel to enter the List setting interface, press the knob or the Set key, and the selection cursor appears. At this time, press the up and down direction key to switch the cursor to the parameter to be set, and press the left and right direction keys to switch the cursor position number.
  • Page 22 10. Channel Mode Multi-channel model configuration options, the parameters that can be set are Off, Normal, and List. One in series: the master is set to Master/series through System → M/S mode settings, and one slave is set to Slave/series M/S mode settings through System →...
  • Page 23 Connect two units in parallel Master unit Slave unit 1 Load Slave unit 2 SPS5000X QuickStart - 21...

  • Page 24: Remote

    Remote Based on the SCPI (Standard Commands for Programmable Instruments) command set, the power supply supports communication with the computer via USB, LAN, and GPIB-USB interfaces to realize remote control. Press Menu → Communication to configure the remote control parameters of the power supply View the USB resource information of the power supply.

  • Page 25: More Information

    For more information about this product, please refer to the following manual: (you can log in to the SIGLENT website to download Http://www.siglent.com) “SPS5000X User Manual” Provide a detailed description of the functions of this product, as well as a detailed description of the SCPI commands and programming of this product.

  • Page 26: Troubleshooting

    The following lists the possible failures and troubleshooting methods during the use of the power supply. When you encounter these faults, please follow the corresponding steps to deal with them. If you cannot deal with them, please contact SIGLENT in time.
  • Page 28 www.siglent.com...
