Page 1: Quick Start
Quick Start SPD3303C Series Programmable DC Power Supply QS0503C-E01B 2014 SIGLENT TECHNOLOGIES CO., LTD... -
Page 2: Copyright Information
1. SIGLENT TECHNOLOGIES CO., LTD. All Rights Reserved. 2. Information in this publication replaces all previous corresponding material. 3. SIGLENT reserves the right to change the specifications and price of the product. 4. Any way of copying, extracting and translating the contents of the manual are not allowed without permission of SIGLENT. -
Page 3: General Safety Summary
SIGLENT General Safety Summary Please review the following safety precautions carefully to avoid personal injury or damage to this product or any product connected to it. To prevent potential danger, please use the instrument as specified. Use proper power cord Only the power cord designed for the instrument and authorized by local country could be used. - Page 4 SIGLENT Keep proper ventilation Inadequate ventilation may cause an increase of temperature, which will lead to further damage. Please keep proper ventilation and check the fan and air-vents regularly when using the instrument. Operate condition Location: indoor, no strong light, almost no Interfering pollution;...
-
Page 5: Safety Terms And Symbols
SIGLENT Safety Terms and Symbols Terms may appear on the product: DANGER: Indicates direct injury or hazard that may happen. WARNING: Indicates potential injury or hazard that may happen. CAUTION: Indicates potential damage to the instrument or other property that may happen. -
Page 6: Brief Introduction
SIGLENT Brief Introduction SPD3303C LED series Programmable DC Power Supply is convenient, flexible and multi-function. It is designed with three groups of independent output terminals, the output voltage of two groups is adjustable and another group is fixed to select: 2.5V, 3.3V, and 5V. -
Page 7: Table Of Contents
CH1/CH2 Series Mode .......................13 CH1/CH2 Parallel Mode.....................14 Save and Recall ........................15 Version Upgrade.........................16 Upgrade in normal Interface..................16 Upgrade via the Guiding Procedure..............18 Chapter 3 Remote Control ....................19 Command List........................19 Command Description ......................20 Chapter 4 Troubleshooting.....................25 Specification........................27 Contact SIGLENT........................29 SPD3303C Quick Start... -
Page 8: Chapter 1 Quick Guide
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT would not provide free maintenance or replacement. 2. Inspect the instrument. If there are instruments found damaged, defective or failure in electrical and mechanical tests, please contact SIGLENT. -
Page 9: Safety Considerations
SIGLENT Safety Considerations To ensure that the instrument can work normally, please conduct necessary inspection before using the SPD3303C. Input Power Requirement The SPD3303C allows a 50Hz/60Hz frequency, and four levels of AC power: 100V/120V/220V/230V. You can select wanted power voltage with the “DIP Switch ”... -

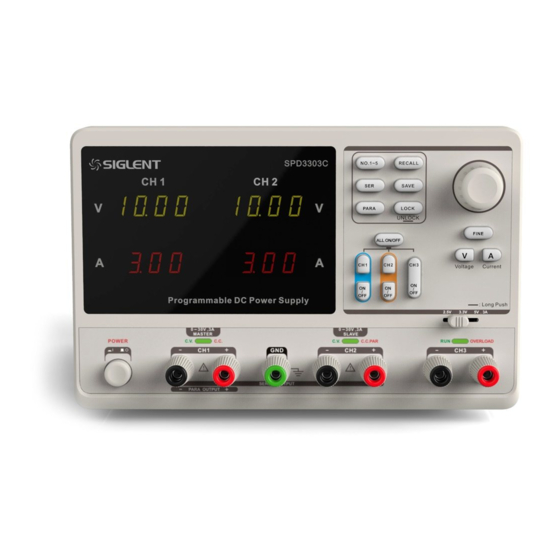

Page 10: The Front Panel
SIGLENT The Front Panel ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Description Description Logo CH3 DIP Switch LED Display Power Switch Model CH1 Output Terminal System Parameter Ground Terminal Configuration button Multi-function knob... -
Page 11: Instruction For Buttons
SIGLENT Instruction for Buttons Buttons for setting parameters NO.1- 5 : Press the button to choose the storage location ; : Press the button to set series mode of CH1/CH2. PARA : Press the button to set parallel mode of CH1/CH2. -
Page 12: The Front Panel Terminals
SIGLENT The Front Panel Terminals The positive/negative output terminals of CH1, CH2, CH3, and the common GND for CH1, CH2 are located on the front panel. Refer to later “control panel operation” for wiring method details. SPD3303C Quick Start... -
Page 13: User Interface
SIGLENT User Interface ○ ○ ○ ○ Channel Logo; ○ Voltage set/Readback value; ○ Current set/Readback value; SPD3303C Quick Start... -
Page 14: The Rear Panel
SIGLENT The Rear Panel ○ ○ ○ ○ ○ ○ ○ Description: ○ Warning message ○ AC power DIP switch ○ Instruction for the AC input voltage ○ AC power socket ○ Fan vent ○ CE certification mark ○ USB interface... -
Page 15: Output Checking
SIGLENT Output Checking To make sure the instrument can correctly respond to operation from the front panel, please perform the output checking, which includes voltage checking when all channels are with no load and current checking when short circuit occurs. -
Page 16: Chapter 2 Control Panel Operation
SIGLENT Chapter 2 Control Panel Operation n this chapter，the function and operation of SPD3303C control panel will be introduced in detail to give you an all-around understanding of it. Brief introduction Output Summary CH1/CH2 Independent Output CH3 Independent Output Parallel Output... -
Page 17: Output Summary
SIGLENT Output Summary SPD3303C is designed with three independent outputs, two of which are adjustable in voltage value and the other includes a set of selectable voltage values: 2.5V, 3.3V or 5.0V. Independent/Parallel/Series SPD3303C has three output modes: independent, parallel and series that could be selected through the track switch on the front panel. -
Page 18: Ch1/Ch2 Independent Output
SIGLENT CH1/CH2 Independent Output Instruction CH1 and CH2 are working in independent mode and insulated from the ground. Output ratings 0~30V/0~3A (Max: 32V, 3.2A) Operation steps 1. Make sure that parallel/series mode is off. 2. Connect load to the positive and negative terminals of CH1/CH2. -
Page 19: Ch3 Independent Mode
SIGLENT CH3 Independent mode Instruction CH3 works independently from CH1, CH2, and its voltage and current ratings are: 2.5V, 3.3V, 5V, 3A. Output ratings 2.5V/3.3V/5V, 3A Operation steps: 1. Connect the load to the positive and negative terminal of CH3 channel. -
Page 20: Ch1/Ch2 Series Mode
SIGLENT CH1/CH2 Series Mode Instruction：In the series mode, CH1 and CH2 are linked internally into one channel controlled by CH1. The output voltage value is twice compared with that of single channel. Output ratings 0~60V/0~3A (Max: 64V, 3.2A) Operation steps：... -
Page 21: Ch1/Ch2 Parallel Mode
SIGLENT CH1/CH2 Parallel Mode Instruction In the parallel mode, CH1 and CH2 are linked internally into one channel controlled by CH1. The output current value is twice as much as the single channel. Output ratings 0~30V/0~6A (Max: 32V, 6.4A) Operation steps: 1. -
Page 22: Save And Recall
SIGLENT Save and Recall Five groups of setups can be saved in memory. Contents of setups including: Independent/series/parallel mode Output voltage/current value Steps for saving setup 1. Set the state needed to save; 2. Press SAVE to enter the save interface;... -
Page 23: Version Upgrade
SIGLENT Version Upgrade The software of the instrument is upgraded with a fixed name file via PC management software with USBTMC. The upgrade method is below: Upgrade in normal Interface 1. Open the EasyPower software after correct connection of the USB cable with the instrument. - Page 24 SIGLENT Figure 2 Figure 3 4. As it shows in figure 4, click the “Upgrade” to start upgrading. The instrument will run the upgraded software as soon as the upgrading completed. Figure 4 SPD3303C Quick Start...
-
Page 25: Upgrade Via The Guiding Procedure
SIGLENT Upgrade via the Guiding Procedure Upgrading via the guiding procedure can be used if the upgrading method above failed. Specific steps: 1. Pressing the knob prior to power on the instrument to enter the guiding procedure mode. 2. As shown in figure 2, select the “Firmware Mode” option instead and the following upgrading steps are the same as method 1. -
Page 26: Chapter 3 Remote Control
SIGLENT Chapter 3 Remote Control SCPI Commands can be used to conduct remote control on the SPD3303C Power Supply through the USBTMC. To realize the remote control, the installation of EasyPower or NI （Measurement & Automation ） software for the computer is required prior to connecting the instrument with it using an USB cable. -
Page 27: Command Description
Query the manufacturer, product model, series NO. and software version. Return Info Manufacturer, product model, series NO., software version. Example Siglent, SPD3303C, SPD00001130025, 1.01.01.02. 2.*SAV Command format *SAV <name> Description Save the current state in nonvolatile memory with the specified name. - Page 28 SIGLENT 4. INSTrument Command format INSTrument <CH1|CH2> Description Select the channel that will be operated. Example INSTrument CH1 Command format INSTrument? Description Query the current operating channel Example INSTrument? Return Info 5. MEASure Command format MEASure: CURRent? < CH1|CH2> Description Query current value for specified channel, if there is no specified channel, query the current channel.
- Page 29 SIGLENT 6. SOURce Command format <SOURce:>CURRent <value> <SOURce>:={CH1 | CH2} Description Set current value for the current channel Example CH1:CURRent 0.5 Command format <SOURce>: CURRent? <SOURce>:={CH1 | CH2} Description Query the current value for the current channel. Example CH1: CURRent?
- Page 30 SIGLENT 7. OUTPut Command format OUTPut <SOURce>, <state> <SOURce>:={CH1 | CH2}; <state>:={ON | OFF} Description Turn on/off the specified channel. Example OUTPut CH1, ON Command format OUTPut: TRACK <NR1> <NR1>:={0[Independent] | 1[Series] | 2[Parallel]} Description Select the operation mode Example OUTPut: TRACK 0 8.
- Page 31 SIGLENT Command format SYSTem: STATus? Description Query the current working state. Example SYSTem: STATus? Return info 0x0224 Instruction The return info is in Hexadecimal format, which means that you must translate the return info into binary format. The correspondence relationship is as shown below.
-
Page 32: Chapter 4 Troubleshooting
SIGLENT Chapter 4 Troubleshooting Question 1: What to do if there occurs a short circuit on output terminal? Answer1: There are over current protection and short circuit protection inside the power, so the current will be controlled in safety range. -
Page 33: Specification
SIGLENT Specification Test conditions: warm-up for about 30minitus, with temperature ℃ ℃ between +20 ~+30 . Output CH1/CH2 independent 0～30V , 0～3A Ratings CH1/CH2 series 0～60V , 0～3A CH1/CH2 parallel 0～30V , 0～6A 2.5V/3.3V/5.0V , 0～3A Constant power change rate ≤0.01%+3mV... - Page 34 SIGLENT Operating Indoor environment Altitude ≤2000 m Environment temperature 0 ~ 40℃ Comparative humidity Ⅱ Installation level Pollution level Storage Environment temperature -10 ~ 70℃ environment Comparative humidity ≤ 70% Power supply AC 100V/120V/220V/230V±10%, 50/60HZ Volume 275mm x 225mm x 136mm Weight 7.5kg...
-
Page 35: Contact Siglent
SIGLENT Contact SIGLENT MTR Add: 3/F, Building 4, Antongda Industrial Zone, 3rd Liuxian Road, 68 District, Baoan District, Shenzhen, P.R. CHINA Tel: +86-755-36615186 E-mail: sales@siglent.com http: //www.siglent.com SPD3303C Quick Start...
