Summary of Contents for SIGLENT SPD1000X

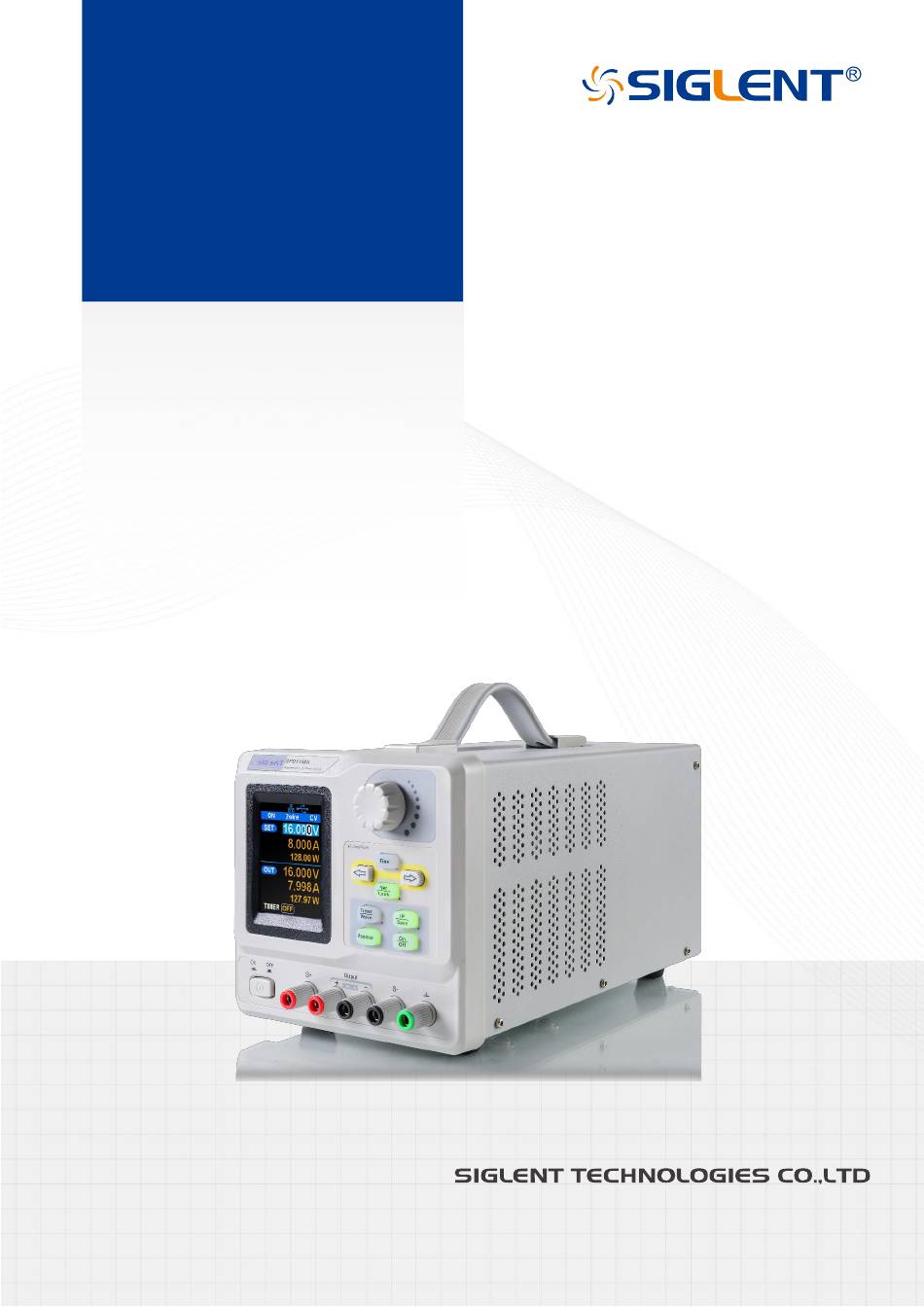

- Page 1 SPD1000X Programmable Linear DC Power Supply Quick Start EN03B...
- Page 3 Declaration SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at the company’s sole decision. Information in this publication replaces all previously corresponding material.
- Page 4 Safety Terms and Symbols ....................4 Allgemeine Sicherheitsübersicht.................... 5 Sicherheitsbegriffe und -symbole ..................7 General Care and Cleaning ....................8 General Inspection ........................ 8 SPD1000X Brief Introduction ....................9 Panel Introduction ........................ 10 Connect power ........................13 User Interface ........................14 Output Inspection ........................ 14 Fuse Replacement ......................
- Page 5 Always ground both the internal and external conductors of the cable to release static before connecting. Do not operate in an explosive atmosphere To avoid personal injury or damage to instrument, please do not operate in an explosive atmosphere. SPD1000X Quick Start...
- Page 6 Indicates potential injury or hazards that may happen. CAUTION Indicates potential damage to the instrument or other property that may happen. Symbols used in this product. These symbols may appear on the product: Hazardous Warning Protective Earth Ground Power Switch Voltage Earth Ground SPD1000X Quick Start...
- Page 7 Sorgen Sie daher für eine gute Belü ftung und überprüfen Sie regelmä ßig die Ansaugung und den Lü fter. Vermeiden Sie freiliegende Schaltkreise oder Komponenten Berü hren Sie keine freiliegenden Kontakte oder Bauteile, wenn das Gerät eingeschaltet ist. Richtige Sicherung verwenden Verwenden Sie nur die angegebene Sicherung. SPD1000X Quick Start...
- Page 8 Wenn Sie vermuten, dass das Gerät beschä digt ist, lassen Sie es vor dem weiteren Betrieb von qualifiziertem Servicepersonal überprü fen. Jegliche Wartung, Einstellung oder Austausch, insbesondere von Schaltkreisen oder Zubehör, muss von SIGLENT autorisiertem Personal durchgeführt werden. Nicht in feuchter Umgebung betreiben Um einen Kurzschluss im Geräteinneren oder einen elektrischen Schlag zu vermeiden, betreiben Sie das...
- Page 9 Hazardous Protective Warning Terminal Ground Power Switch Voltage Earth Ground Wenn Sie solche Symbole auf dem Produkt finden, ziehen Sie das Handbuch zu Rate, um die Art der potenziellen Gefahr und die zu ergreifenden Maßnahmen zu erfahren SPD1000X Quick Start...
- Page 10 The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement if the instrument has been damaged in shipment. ...
- Page 11 SPD1000X Brief Introduction Siglent’s SPD1000X Programmable DC Power Supply has a 2.8 inch TFT-LCD screen, programmable output, and real time measurement graphing. The SPD1168X has a maximum output values of 16 V/8 A, while the SPD1305X has a maximum output values of 30 V/5 A. Both models have remote sense capability, output short circuit and overload protection.
- Page 12 Panel Introduction Front Panel Figure 2: The front panel of the SPD1000X 2.8 inch TFT display. It is used to display system parameter settings, system output state, menu options, prompt messages, etc. Knob When setting parameters, rotate the knob to increase or decrease the value of the digit at the cursor.
- Page 13 Used to sense the actual voltage at the load. This allows the source to compensate the voltage drop caused by the leads between the power supply and the load and increases the accuracy of the voltage delivered to the load. Power key Turn on or off the instrument. SPD1000X Quick Start...
- Page 14 Rear Panel Figure 3: The rear panel of the SPD1000X Warning message To note to ground the instrument and non-professional personnel should not disassemble the instrument and so on. AC input voltage description The frequency voltage and the specified fuse have to match with AC input.
- Page 15 WARNING Before switching the input power supply voltage, please disconnect the power supply before setting the voltage selector To the appropriate gear. WARNING To avoid electric shock, make sure that the instrument is correctly grounded. SPD1000X Quick Start...
- Page 16 SPD1168X by adjusting the current setpoint from the minimum (0 A) to the maximum value (8 A) and the current range of the SPD1305X by adjusting the current setpoint from the minimum (0 A) to the maximum value (5 A). SPD1000X Quick Start...
- Page 17 Re-insert the fuse holder into the power socket (please pay attention to the direction). WARNING To avoid personal injuries, unplug the power supply before replacing the fuse. To avoid electric shock or fire, select the proper power supply specification and replace only with the proper fuse. SPD1000X Quick Start...
- Page 18 If the fuse needs to be changed, refer to “To Replace the Fuse”. If the problem remains, please contact SIGLENT. The constant voltage output is abnormal. Check whether the maximum output power of the scale currently selected fulfills the load requirement.
- Page 19 Contact SIGLENT Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com North America:...
- Page 20 Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com North America: SIGLENT Technologies America, Inc...
Need help?
Do you have a question about the SPD1000X and is the answer not in the manual?
Questions and answers

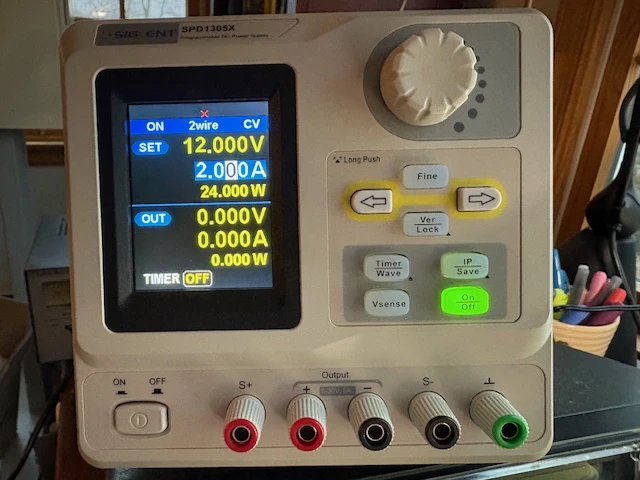

Hi! I just bought an SPD1305X from Amazon and it has no output voltage. Is there something I **** doing wrong, or could this unit be defective? Thank you!
If the SIGLENT SPD1305X has no output voltage, follow these steps to check for possible issues:
1. Check Output Power – Ensure the power supply is providing the required output power.
2. Inspect Connections – Verify there is no short circuit or poor contact between the load and the power supply.
3. Verify Voltage Setting – Ensure the voltage setting is not too low.
4. Constant Current Mode – If in constant current mode, check if the current setting is too low.
5. Hardware Issues – If the issue persists, inspect the screen backlight circuit board and the mainboard.
If none of these steps resolve the problem, contact SIGLENT for further support or possible warranty service.
