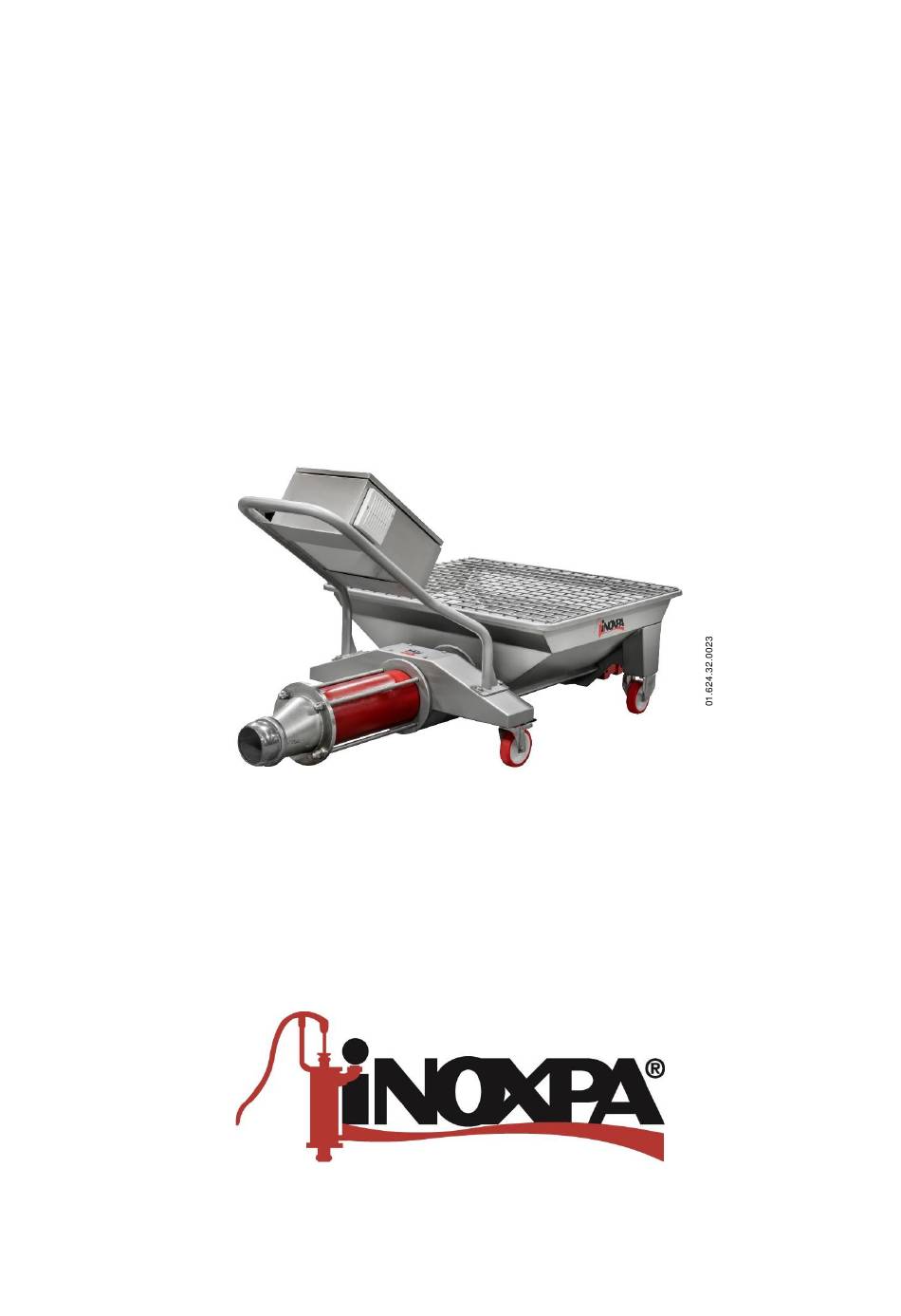

- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS HELICOIDAL PUMP KIBER KTE Manual Original 01.624.30.01EN (0) 2021/05...
- Page 2 12100:2010, 13857:2008, 60204-1:2016, CEI EN 61439-1:2012, CEI EN 61439-2:2012, EN 809:1998+A1:2009 The technical file has been prepared by the signer of this document in INOXPA S.A.U. David Reyero Brunet Technical Office Manager Banyoles, 3 de mayo de 2021 The serial number may be preceded by a slash and by one or two alphanumeric characters...
-
Page 3: Table Of Contents
8.6. Storage ................................ 14 8.7. Cleaning ..............................14 8.8. Disassembly and assembly of the pump ....................15 9. Technical Specifications 9.1. Dimensions ans weights ..........................17 9.2. Exploded drawing, technical section and parts list ..................18 INOXPA S.A.U. · 01.624.30.01EN · (0) 2021/05... -
Page 4: Generalities
The non-compliance of the prescribed indications in this manual means misuse of this gear on the technical side and the personal safety and this, exempt INOXPA of all responsibility in case of accidents and personal injuries and/or property damage. Also, excluded from the warranty all breakdowns caused by improper use of the gear. -
Page 5: Safety
Important instruction for the protection of the equipment and its functions ATTENTION 3.2. GENERAL SAFETY INSTRUCTIONS Read the instruction manual carefully before installing and starting the pump. Contact INOXPA in case of doubt. 3.2.1. During the installation Technical Specifications of chapter 9 should always be observed. -
Page 6: General Information

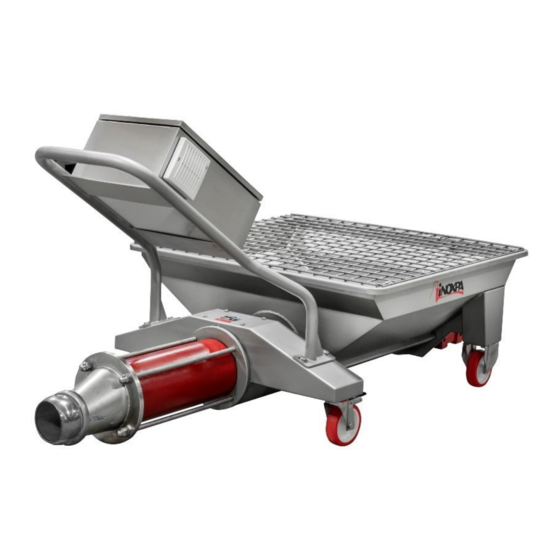

4. General Information 4.1. DESCRIPTION The Kiber KTE pumps, with a compact and robust design, form part of our range of positive-displacement pumps with a helical rotor, intended for the wine industry. The hydraulic parts that form the pump are the rotor and the stator. Due to the friction between the rotor and the stator, a vacuum is created in the suction area that makes easier the entry of the product into the pump. -
Page 7: Installation
Installation 5. Installation 5.1. RECEPTION OF THE PUMP INOXPA cannot be held responsible for the damage sustained by the equipment during transport or unpacking. Please visually check that the packaging is not damaged. The pump package includes the following documents: •... -
Page 8: Transport And Storage
Installation 5.3. TRANSPORT AND STORAGE ATTENTION The Kiber KTE pumps are often too heavy to be stored manually. Use an appropriate means of transport. Use the points which are indicated in the drawing for lifting the pump. Only authorized personnel should transport the pump. -
Page 9: Pipes
ALWAYS check the direction of rotation of the motor with liquid inside the pump. For models with a seal chamber, ALWAYS make sure that the chamber is full of fluid before checking the direction of rotation. · INOXPA S.A.U. 01.624.30.01EN · (0) 2021/05... -
Page 10: Level Sensor
Installation 5.7. LEVEL SENSOR The level sensor of the KTE pump is resistive type. Mount the level sensor as indicated in the next figure to sure the good functioning of the pump. INOXPA S.A.U. · 01.624.30.01EN · (0) 2021/05... -
Page 11: Start-Up
Prior to starting the pump, carefully read the instructions in section Installation. Carefully read section 9. Technical Specifications. INOXPA will not be liable for improper use of the equipment. NEVER touch the pump or the lines if hot liquids are being pumped. 6.1. CHECKS BEFORE STARTING THE PUMP •... -
Page 12: Troubleshooting
The following table provides solutions to problems that might arise during the operation of the pump. The pump is assumed to have been properly installed and be suitable for the relevant application. Please contact INOXPA if technical assistance is required. Motor overload... -
Page 13: Maintenance
The period between each preventive maintenance service will vary depending on the operating condition of the pump: temperatures, flow, number of operating hours, cleaning solutions used, etc. 8.4. LUBRICATION The Kiber KTE pumps use a bearing which is lubricated for life therefore it is not needed re-lubricated. · INOXPA S.A.U. -
Page 14: Tightening Torque
Check the concentration of the cleaning solutions. Incorrect concentrations may lead to the deterioration of the pump seals. To remove any traces of cleaning products ALWAYS perform a final rinse with clean water at the end of the cleaning process. INOXPA S.A.U. · 01.624.30.01EN · (0) 2021/05... -
Page 15: Disassembly And Assembly Of The Pump
Incorrect assembly or disassembly may cause damage in the pump’s operation and lead to high repair costs and a long period of down time. INOXPA is not responsible for accidents or damages cause by a failure to comply with the instructions in this manual. - Page 16 10. Place the discharge nozzle (34) tightening the nuts (54A) and the washers (53A). 8.8.3. Disassembly of the obturation 1. Perform steps 4 to 10 of chapter 8.8.1 Disassembly of the Kiber KTE pump. 2. Remove the shaft motor (05).
-
Page 17: Technical Specifications
20/25 KTE-90 30/40 KTE-100 45/55 Materials Parts in contact with the product 1.4301 (AISI 304) Stator Other materials options of the stator consult with INOXPA Surface finish matt Obturation 9.1. DIMENSIONS ANS WEIGHTS Size Weight (kg) 1685 KTE-60 2032 KTE-80... -
Page 18: Exploded Drawing, Technical Section And Parts List
Technical Specifications 9.2. EXPLODED DRAWING, TECHNICAL SECTION AND PARTS LIST INOXPA S.A.U. · 01.624.30.01EN · (0) 2021/05... - Page 19 Technical Specifications Detail A Detail A · INOXPA S.A.U. 01.624.30.01EN · (0) 2021/05...
- Page 20 Stainless steel Fixed wheel Polyurethane Rotary wheel Polyurethane 1.4301 (AISI 304) Trolley handle O-ring O-ring Plug seal Plug 1.4301 (AISI 304) Double lip seal Seal Motor Gear Electrical control Plastic or stainless steel INOXPA S.A.U. · 01.624.30.01EN · (0) 2021/05...
- Page 21 NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
- Page 22 NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
- Page 23 NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
- Page 24 How to contact INOXPA S.A.U.: contact details for all countries are continually updated on our website. Please visit www.inoxpa.com to access the information. INOXPA S.A.U. Telers, 60 – 17820 – Banyoles – Spain Tel.: +972 575 200 – Fax.: +34 972 575 502...
