Smappee Infinity Install Manual page 12

HomeLine
1
In the charging station, remove two hex-bolts then move the controller and modem
1
PCB up out of the support.
2

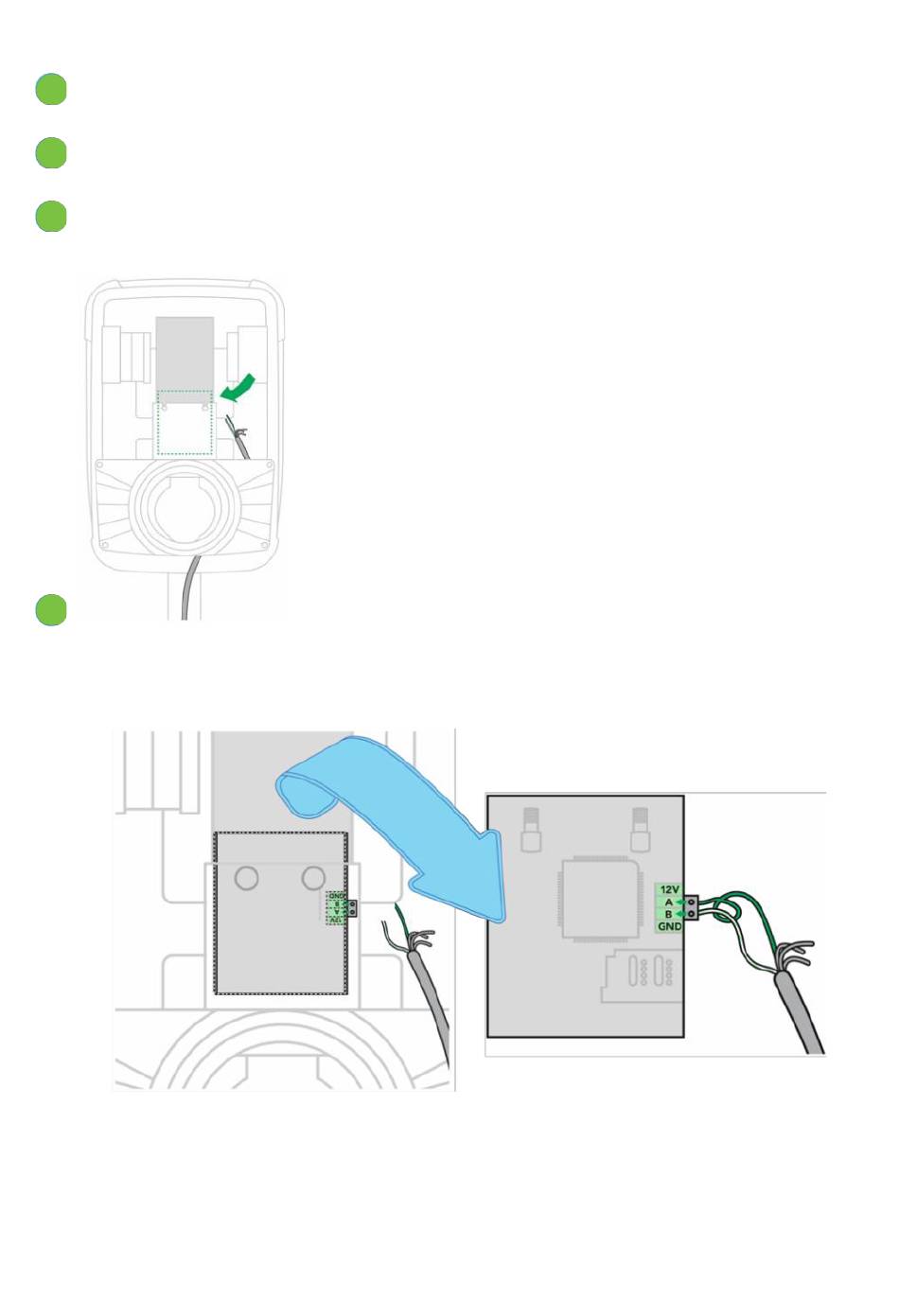

2 Find the RS485 connection on the modem board PCB. The figures below will help you
find the connection.
3
Route the network cable into the charging station along the same route as the power cable.
3
Connect the network cable to the modem board PCB using the gray 2-pole Phoenix
4
4
plug (supplied):
• Green > RS485 pin A
• Green/White > RS485 pin B
English – Version 1.2 – January 2021
12
