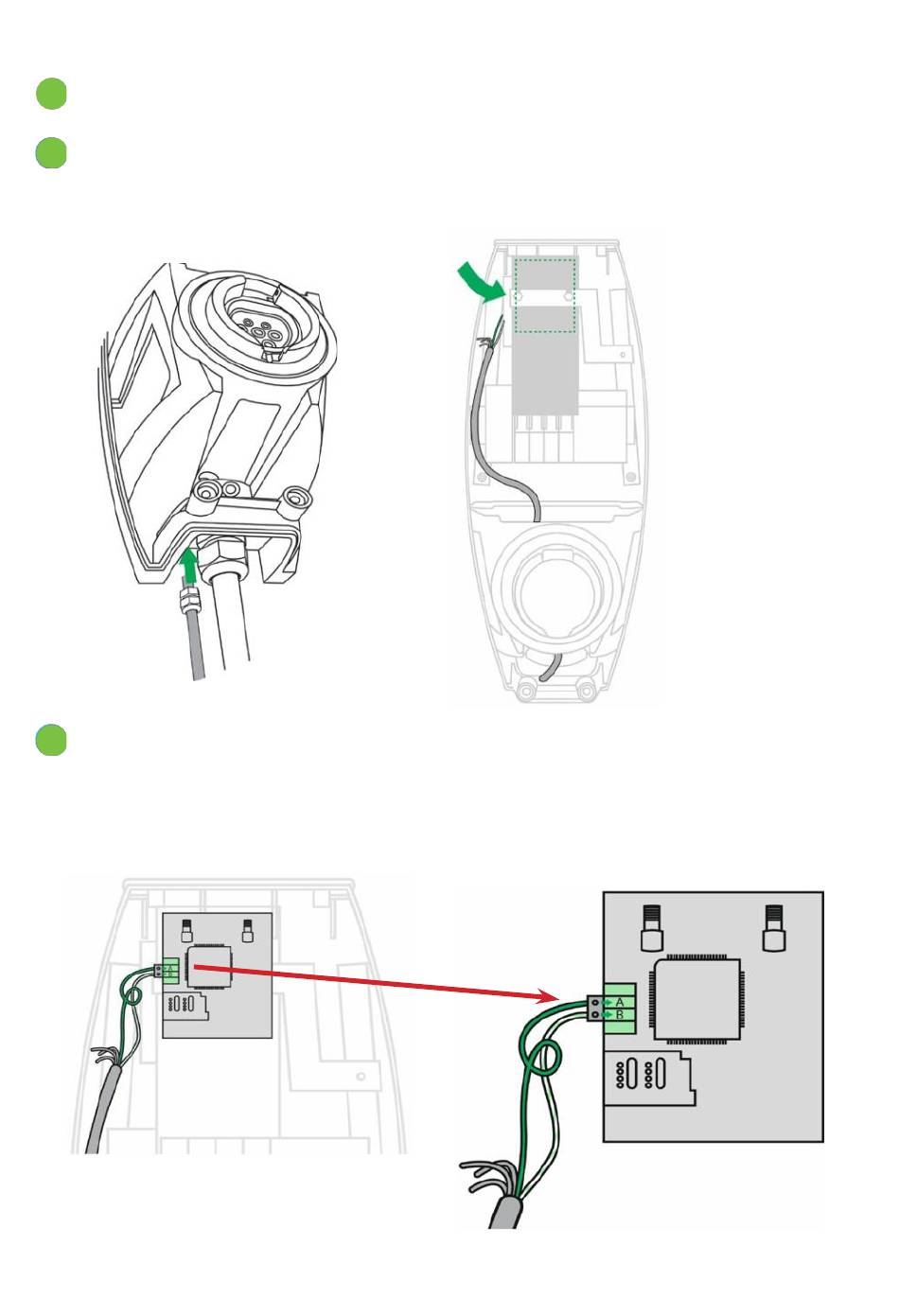

In the charging station, find the RS485 connection on the modem board PCB. The
1
figures below will help you find the connection.
2
2 Route the network cable into the charging station along the same route as the power
cable. When the cable enters the base of the station, drill a hole and use a cable
gland.
Connect the network cable to the modem board PCB using the gray 2-pole Phoenix
3
3
plug (supplied):
• Green > RS485 pin A
• Green/White > RS485 pin B
