Smappee Infinity
Installation manual
English – Version 1.3 – June 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity and is the answer not in the manual?

Questions and answers

Related Manuals for Smappee Infinity

Summary of Contents for Smappee Infinity

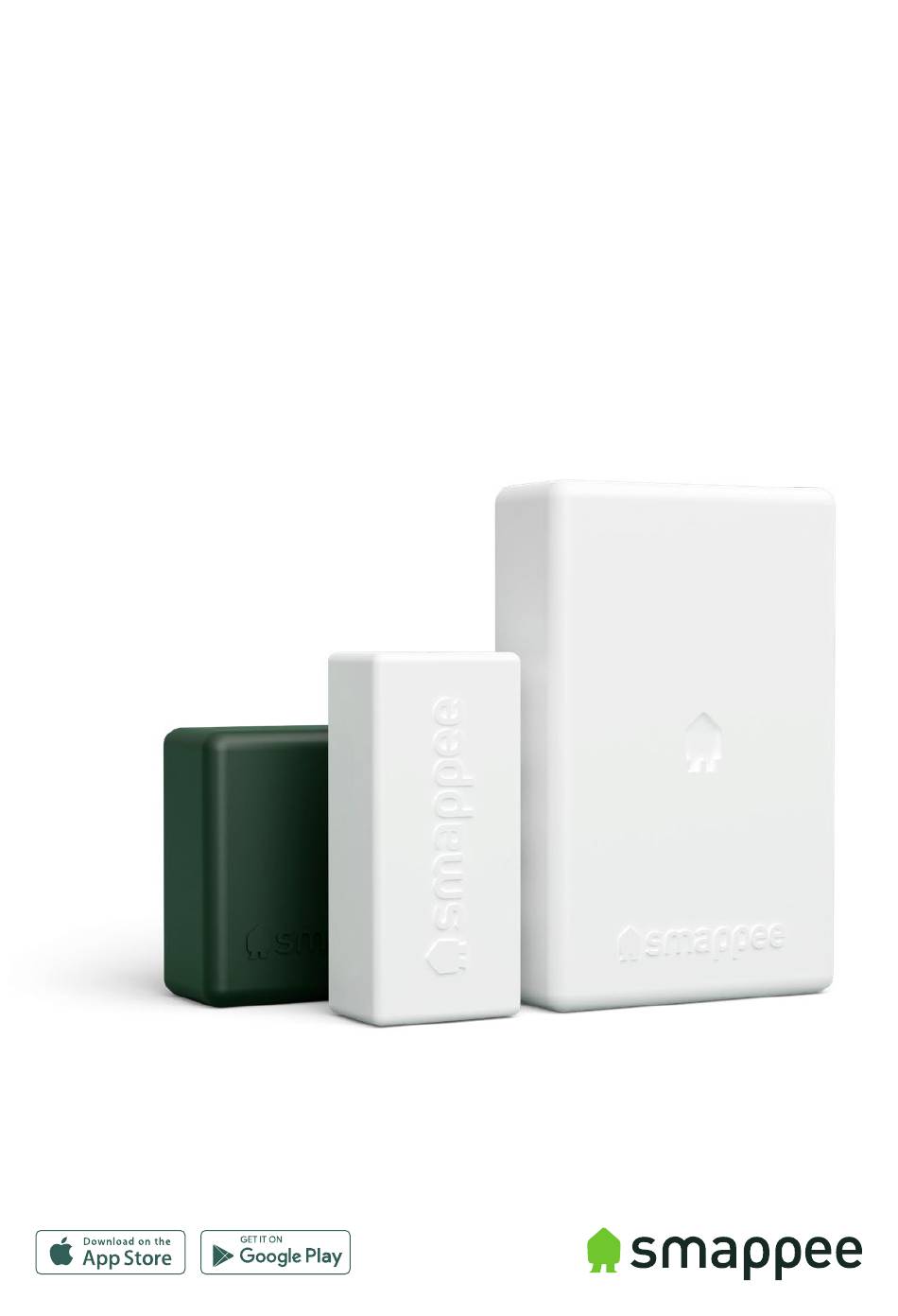

  • Page 1 Smappee Infinity Installation manual English – Version 1.3 – June 2019...

  • Page 2: Table Of Contents

    Addendum 2 – Wi-Fi connection properties and firewall rules Addendum 3 – Components overview dum 1 – Colour code explanation Addendum 2 – Wi-Fi connection properties and firewall rules Addendum 3 – Components overview Smappee Infinity – Installation manual – English Page 2 o f...

  • Page 3: Safety Instructions

    • Do not use damaged current transformers or cables. • Do not immerse the product in water or any other liquids. • Do not expose the product to heat, flame, or extreme cold. Smappee Infinity – Installation manual – English Page 3 of...
  • Page 4 Class II equipment does not require an earth connection. This device has been tested according to IEC 62262 and complies to IK 06 impact class 6. (Impact energy: 1 Joule). Smappee Infinity – Installation manual – English Page 4 of...
  • Page 5 • When there is visible damage to the device’s housing, it is recommended to replace the device to prevent any hazardous situation to occur. Support Only certified electricians or equivalent may install the Smappee Infinity. If you have any questions, please contact your local distributor. Vista...

  • Page 6: Smappee Infinity Modularity

    2. Smappee Infinity modularity Smappee Infinity is a modular energy monitoring solution, which is designed to be easily installed in existing and new installations. Smappee Infinity’s modular design allows you to add additional CTs through the use of CT Hubs.
  • Page 7 A typical Smappee Infinity setup consists of one Power Box, one Genius or Wi-Fi Connect, CT Hubs, and CTs. The different components communicate through the Smappee Bus. The Smappee Infinity is configured through the Smappee Energy Monitor mobile app (which you can download from the Apple App store or Google Play store). The real-time and historical monitoring data are accessible for visualisation and analysis purposes.

  • Page 8: How To Install

    Initial setup and configuration: The creation of a location, its properties, and the loads to be measured. Physical installation: The physical installation of all the Infinity components. Smappee cloud connection: The selection of internet connectivity and configuration. Configuration of CTs Validation of the installation: Checking the accuracy of live power values.

  • Page 9: Planning And Site Preparation

    4. Planning and site preparation The first step is to determine the complete monitoring solution. This consists of listing all the loads that need to be measured, their properties, and the required hardware (Smappee and others). The checklist provided helps you to determine all necessary technical information for the next steps and also to collect all the necessary hardware.
  • Page 10 Supplies (not included) Cable ties Single or three-phase circuit breaker (fuse for Smappee Power Box only) Ethernet cable in the case of wired communication External Smappee Wi-Fi antenna in the case of low Wi-Fi signal 3G/4G Dongle in case of cellular communication Smappee Infinity –...

  • Page 11: Initial Setup And Configuration

    (e.g. house, store, or site address). This procedure is done with the Smappee Energy Monitor mobile app. Remarks • The Smappee App will guide you through the various steps to fill in all the required information. Steps • Log in to the Smappee App with the corresponding Smappee username or create a new account.

  • Page 12: Physical Installation

    Connect the installed CTs to their corresponding CT Hub. Make the following interconnections: a. The first CT Hub to Port A of the Power Box using the supplied Smappee Bus cable. b. Connect all the CT Hubs with the supplied Smappee Bus cable or a custom twisted- pair RJ10 cable.
  • Page 13 CT Hub. You can use a custom RJ10 cable instead of the standard Smappee Bus cable. The RJ10 must be a twisted pair cable. Pins 1 & 4 and Pins 2 & 3 must be twisted pairs.
  • Page 14 REMARK: The above wiring and colour scheme is indicative. National regulations must be respected. Wiring for Europe must be at least 1mm / 600 V and protected by a 6A circuit breaker. Smappee Infinity – Installation manual – English Page 14 of...
  • Page 15 REMARK: The above wiring and colour scheme is indicative. National regulations must be respected. Wiring for Europe must be at least 1mm / 600 V and protected by a 6A circuit breaker. Smappee Infinity – Installation manual – English Page 15 of...
  • Page 16 REMARK: The above wiring and colour scheme is indicative. National regulations must be respected. Wiring for Europe must be at least 1mm / 600 V and protected by a 6A circuit breaker. Smappee Infinity – Installation manual – English Page 16 of...
  • Page 17 REMARK: The above wiring and colour scheme is indicative. National regulations must be respected. Wiring for the Americas region must be at least 18AWG / 600 V UL-style 1015 and protected by a 6A circuit breaker. Smappee Infinity – Installation manual – English Page 17 of...
  • Page 18 REMARK: The above wiring and colour scheme is indicative. National regulations must be respected. Wiring for the Americas region should be at least 18AWG / 600 V UL-style 1015 and protected by a 6A circuit breaker. Smappee Infinity – Installation manual – English Page 18 of...

  • Page 19: Smappee Cloud Connectivity

    • The Smappee Genius will open its hotspot, which allows configuring the Wi-Fi network and password. • The Smappee Genius will emit a flashing blue colour when the hotspot can be selected in the list of available Wi-Fi networks on your smartphone. Please note that it can take a few minutes before the hotspot is open.

  • Page 20: Configuration Of Cts

    8. Configuration of CTs In this procedure, the initial setup and configuration are linked to each physical CT. Proceed in the Smappee Energy Monitor mobile app and follow the steps as shown. Smappee Infinity – Installation manual – English Page 20 of...

  • Page 21: Validation Of The Installation

    Incorrect line voltage and current mapping could lead to incorrect power values and wrong monitoring data. To check the correct operation of the Smappee Infinity, Smappee provides real-time values of all measured loads. You can access these real-time values with the mobile app or via the Smappee Dashboard.
  • Page 22 Please note that the colour code inside the fuse box and/or phase numbering may be incorrect. 0 volt is measured when both loads are on the same phase. Smappee Infinity – Installation manual – English Page 22 of...

  • Page 23: Troubleshooting

    Keep the reset button of serial number of the Genius the Genius pressed in for is invalid. approximately 20 seconds until the Genius is blue. Restart the installation procedure. Smappee Infinity – Installation manual – English Page 23 of...
  • Page 24 The Ethernet cable is not Check Ethernet cable flashes blue after startup connected correctly. connection and restart the with an Ethernet connection. Genius by unplugging the RJ10 cable and plugging it back in. Smappee Infinity – Installation manual – English Page 24 of...
  • Page 25 L1, L2, L3 the current phases (phase- corresponds with the Load mapping). Configuration of the Grid (phase setting). See the tips in the chapter “Validation of the installation”. Smappee Infinity – Installation manual – English Page 25 of...

  • Page 26: Smappee Bus Cable Specification

    (109 yards) (109 yards) WARNING: The bus termination plug must be plugged into the output of the last CT Hub. And is supplied in Port A of the Power Box. Smappee Infinity – Installation manual – English Page 26 of...

  • Page 27: Addendum 1 - Colour Code Explanation

    The Wi-Fi hotspot access point has been activated to allow the Genius Yellow Steady to reconfigure the Wi-Fi settings. Smappee is trying to open a Wi-Fi hotspot access point. Please wait a Yellow Flashing few seconds. The light will turn to a steady yellow in a few moments.

  • Page 28: Addendum 2 - Wi-Fi Connection Properties And Firewall Rules

    • Allowed special characters for the Wi-Fi password: #$%@?/ \ • MAC filtering must not be active on the router • Your firewall should allow Smappee to create outbound secure HTTP connections • The maximum number of characters for the WPA2/PSK is 20.

  • Page 29: Addendum 3 - Components Overview

    Smappee Bus cable – 150 cm (59 inches) AC-IBC150 Smappee Bus cable set – 100m (109 yards) - 50 RJ10 connectors AC-IBCS-100m You can also use a custom RJ10 cable. See Smappee Bus cable specification in section 11. Current Transformers Standard...
