Lee & Plumpton Domino Beam Wooden Modesty Assembly Instructions

Advertisement

Quick Links

www.leeandplumpton.co.uk
ASSEMBLY INSTRUCTIONS
RANGE
Domino Beam Wooden Modesty
REF:
All modesty sizes for Domino Beam Desks
Read this leaflet before
assembly

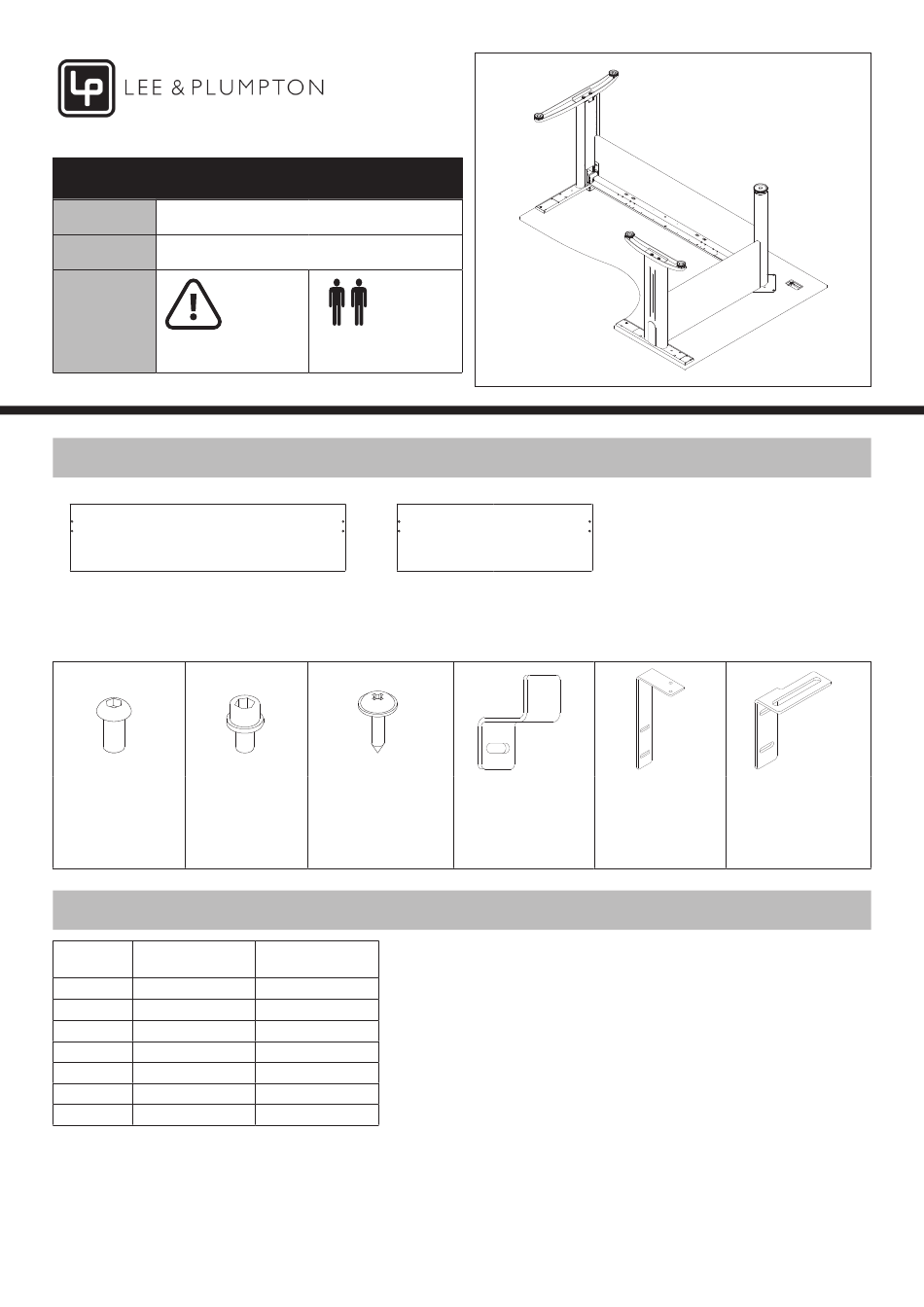

COMPONENT PARTS
Item 1
Large Modesty Panel
Qty 1
Item 3
Item 4
F.0603
F.0605
M6x12mm Button
M6x12mm Socket
Screw
Cap
Qty See Table 1
Qty See Table 1
COMPONENT PART QUANTITIES FOR UNIT SIZE VARIATIONS (TABLE 1)
ITEM
All Cresents
2
1
3
8
4
2
5
4
6
2
7
2
8
2
2 People
Required
Item 2
Small Modesty Panel
Qty See Table 1
Item 5
F.0619
10x3/4 Pozi Flange
Screw
Qty See Table 1
All Waves/
Rectangular Desks
0
4
1
2
1
1
1
NOTE
The process for attaching the smaller
modesty to the desk is the exact same
process for the large modesty. For
simplicity we shall only show the larger
modesty being attached.
Item 6
Item 7
DOM/001
DOM/002
Mod Z Bracket
Mod L Bracket
Qty See Table 1
Qty See Table 1
No. 140 A/2287 Revision A 20/03/2020
Item 8
DOM/003
Mod L-Slot Bracket
Qty See Table 1
1
