CyberData 011184 Installation Quick Reference page 2

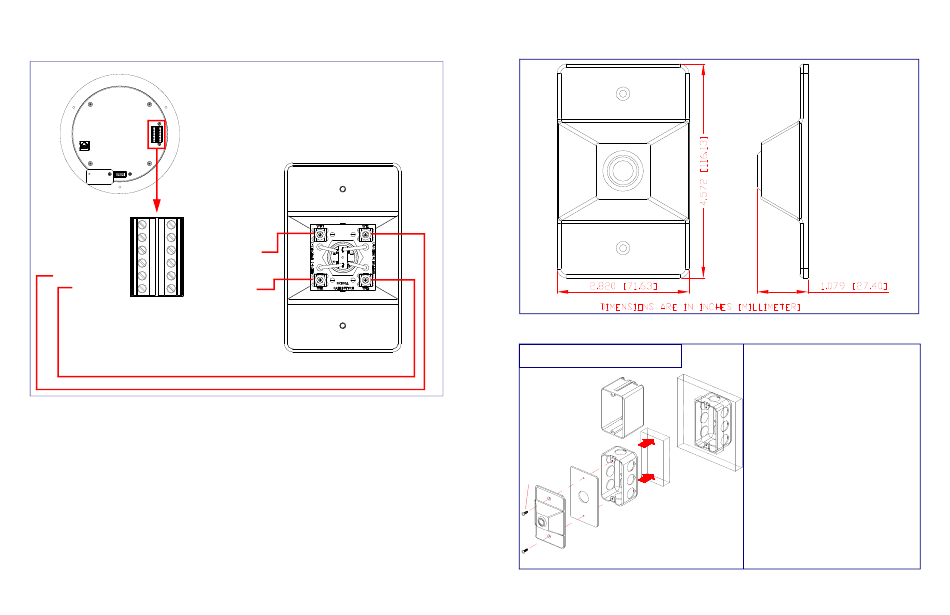

Connections
Speaker
AUX POWER (+)
AUX SPEAKER (-)
(+12VDC @ 1A)
AUX SPEAKER (+)
AUX POWER (-)
RELAY COM BTN SENSE GND
RELAY NO
LINE OUT (-)
BUTTON LED (+)
LINE OUT (+)
BTN SENSE
BUTTON LED (-)
J10 J9
© 2012, CyberData Corporation, ALL RIGHTS RESERVED 930464A
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Back View
Quick Reference
Dimensions
Mounting Options—One-Gang Box (Metal or Plastic)
To be installed and or used in accordance with the
appropriate electrical codes and regulations.
One-Gang Box
(Plastic)
Optional
Gasket
Mounting
Screw (2x)
Wall Opening
One-Gang Box
(Metal)
Remote Call
Button Assembly
Quick Reference
Wall Plate Mounting Bracket
One-Gang Box (Metal or Plastic)
Tools Required: Wall board saw
Instructions:
1. Use the outside area of the One-Gang Box to trace
the hole cut onto the wall.
2. Using a wall board saw or matt knife, cut along the
stencil line.
3. Place One-Gang Box through the wall opening.
4. Optional: Nail the One-Gang Box to the stud or
connect it to the set screw connect and conduit.
5. Place the optional gasket over the One-Gang Box.
6. Mount the flush mount wall plate to the One-Gang
Box.
930464A © 2012, CyberData Corporation, ALL RIGHTS RESERVED
