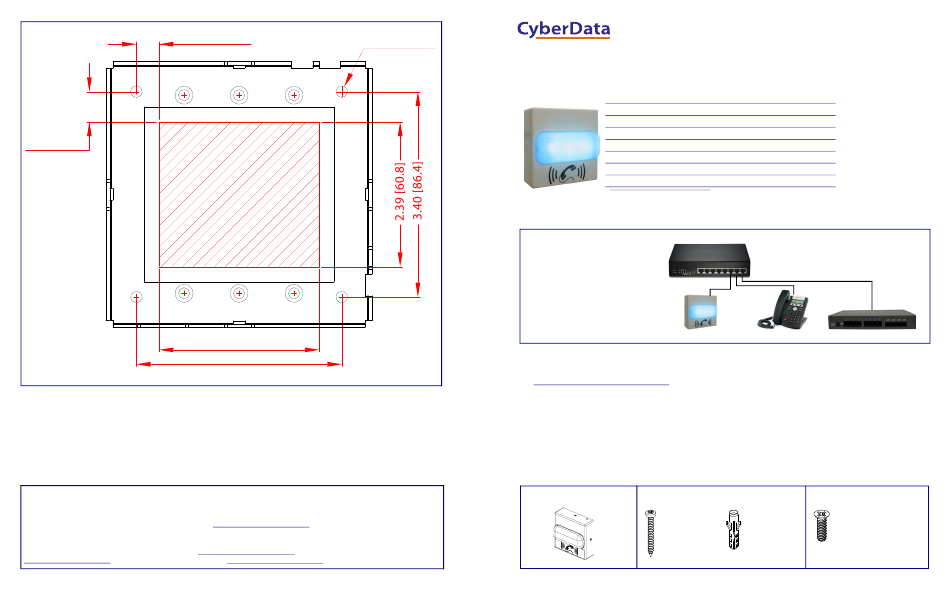

CyberData 011377 Installation Quick Reference

Wall Mounting with Single or Two Gang Box
0.38 [9.5]
0.50 [12.8]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
ø0.19 [ø4.8]
(4 Places)
2.65 [67.3]
3.40 [86.4]
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931307B Quick Reference
Installation Quick Reference

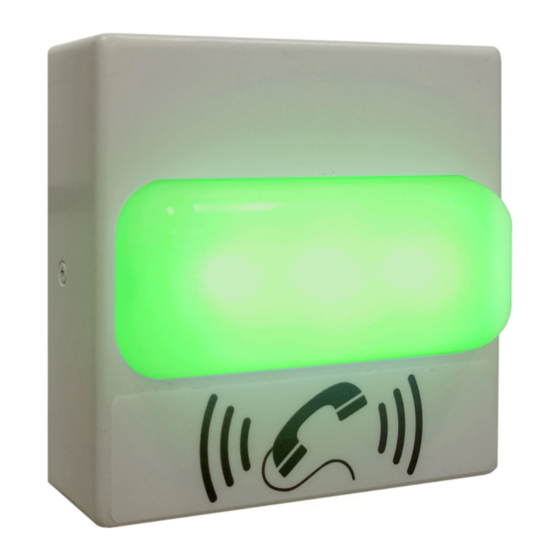

Singlewire InformaCast RGB Strobe
The IP Endpoint Company
011377
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
802.3af Compliant Ethernet Switch
*More installation and mounting
options are available in the
Operations Guide.
RGB Strobe
Getting Started
• Download the Operations Guide PDF file, from the Singlewire InformaCast RGB Strobe product page at:
http://www.cyberdata.net/voip/011377/
• Create a plan for the locations of your Singlewire InformaCast RGB Strobes.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) RGB Strobe Assembly (1) Wall Mounting Kit
(4) #6 x 1.5 inches
Sheet Metal Screw
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
IP Phone IP PBX Server
(1) Gang Box Mounting Kit
(4) #6-32 x 0.625-inch
(4) #6 Ribbed Plastic
Flat-Head Machine Screw
Anchor
