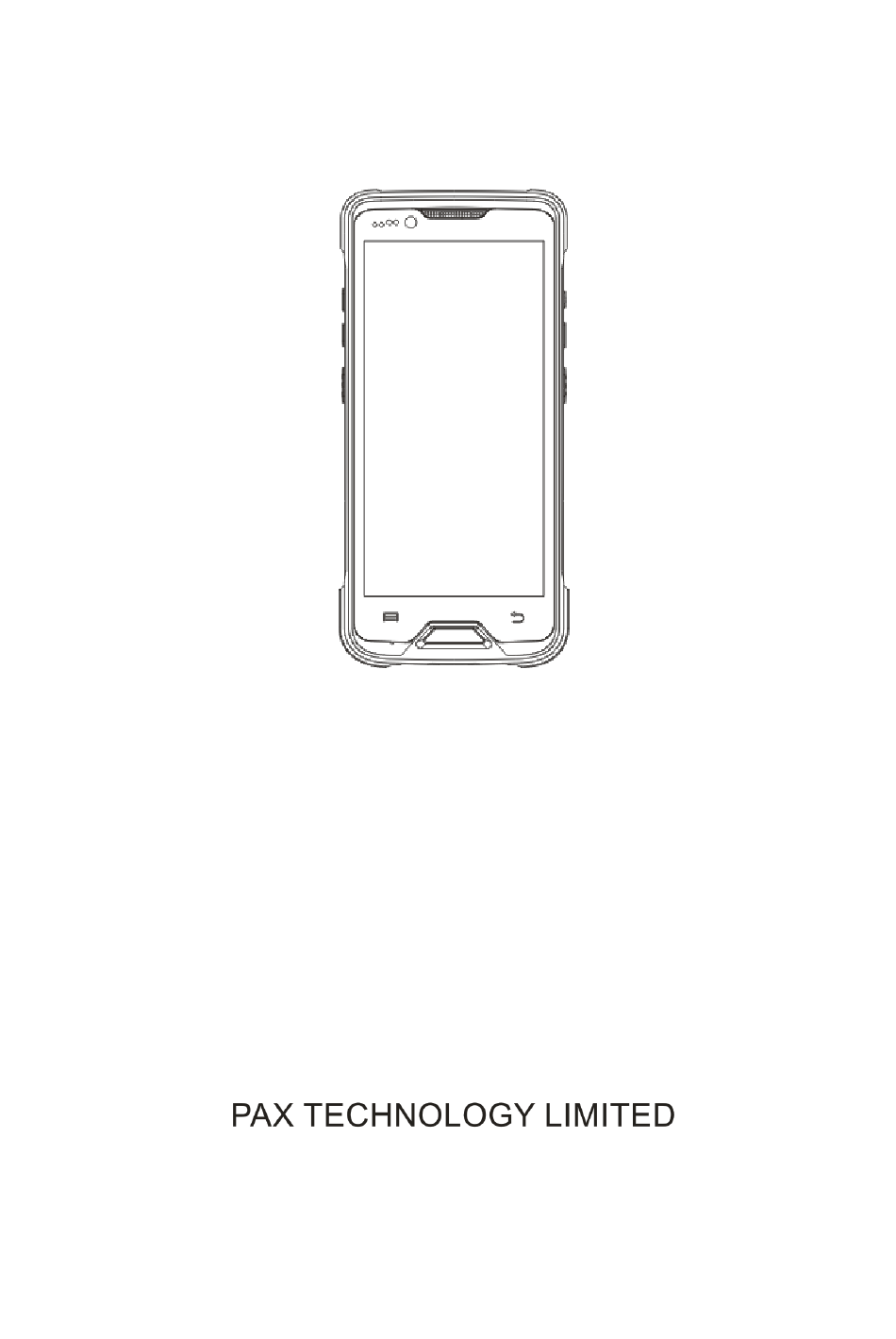

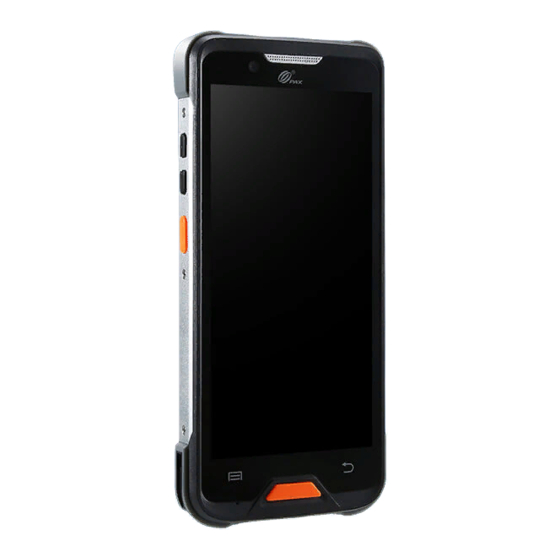

- Page 1 X5 Wireless Data Terminal Note: Product images shown may be different than actual product received...
-
Page 2: Contents Checklist
1.Contents Checklist Please check the components after unpacking. If any are missing, please contact the dealer. Part Qty. X5 mobile smart terminal Charger USB Cable Wrist Strap Battery Product manual Unscrew Piece Base (optional) 2.Product Description 3.Installation 1. Unlock and lock the rear cover To unlock the rear cover: Unscrew the four screws on the cover with screwdriver, then take the cover off the terminal. - Page 3 Figure 3-1-1 To lock the rear cover: Put back the rear cover and make the 4 screws aligned with the 4 holes, then tighten the screws to lock the cover. As the figure shown below. Figure 3-1-2 2. Install and remove the battery To install battery: Put battery into the battery storehouse in the right direction as shown below.
- Page 4 Figure 3-2-2 3. Install SIM card/PSAM card /TF card Install SIM card/PSAM card /TF card in direction shown below. Figure 3-3-1 Remove SIM card/PSAM card /TF card in direction shown below. Figure 3-3-2...
- Page 5 4. Device Charging The device can be charged in two ways: Using USB cable or charging base By USB cable : Connect terminal to USB cable via Type-C port to charge. See port location as figure below. By charging base: Place the terminal vertically into the base, the pogo pins will be connected themselves to charge.
- Page 6 4.Instructions 1. Use of two-dimensional scanner (one-dimensional optional) The scanner is on the top of the device. When using, enter the “Menu” ，select “DEMO”> two-dimensional (or one-dimensional) scan, align the reading window with the barcode, slightly press the left , right scan button on the device or click "start" on the interface, the reading window will emits the two-dimensional illumination region or one-dimensional light beam, cover the barcode with the lighting beam emitted by the scanner, then the barcode will be read correctly.
-
Page 7: Installation And Usage Tips
distance is 0-4cm. You can use it by following these steps: 1) When running the contactless card reading and writing program, the contactless card function, which is closed by default, will be opened. 2) Enter the “Menu” >” DEMO” > select the type (ISO 14443A/B or ISO 15693) according to the label protocol. - Page 8 6.Lithium Ion Battery Usage Tips WARNING: 1）Don't use the battery in sunlight or smoke, dust environment. 2）Prohibited to strike, squeeze and tread on battery or throw it into the liquid and fire. 3）If battery is impressive, deformed, damaged or exothermic seriously, please stop using immediately and replace it! 4）If the continuous working time is only half of new one, the battery life may be end.
- Page 9 FCC RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. The exposure standard for wireless employs a unit of measurement known as the Specific Absorption Rate, or SAR.
- Page 10 Cetappareilnumérique de la classe B estconforme à la norme NMB-003 du Canada. IC:11689A-X5 IC Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209.
- Page 11 PAX TECHNOLOGY LIMITED reserves the right to change product technology specifications without notifying. PAX TECHNOLOGY LIMITED Manufacturer: PAX Computer Technology (Shenzhen) Co.,Ltd. Address:4/F, No.3 Building, Software Park, Second Central Science-Tech Road, High-Tech Industrial Park, Shenzhen, Guangdong, P.R.C. Tel: 0755-86169630 Fax: 0755-86169634 Website: http://www.pax.com.cn...
