Pax Technology A35 Quick Setup Manual

Pos terminal

A35 Quick Setup Guide

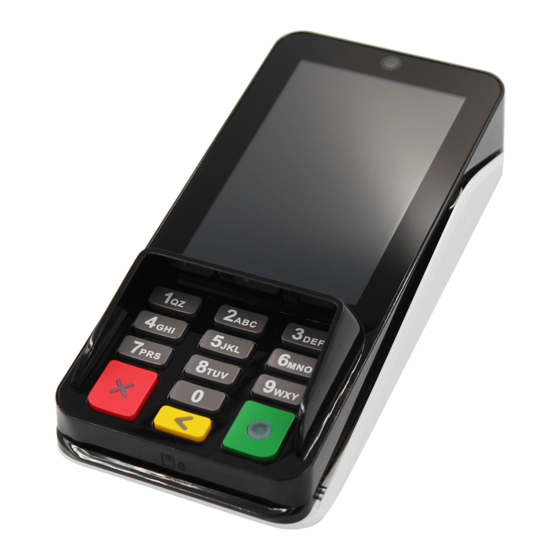

A35 POS Terminal

Note: Product images shown may be different than actual product received

PAX Technology Limited

1. Checklist

Congratulations on receiving your PAX Technology payment terminal. We do hope you enjoy it!

The box you have just opened should contain the following items:

1 x A35 POS Terminal

1 x Quick Setup Guide

1 x Communication Cable

1 x AC Power Adapter (Optional)

Table of Contents

Do you have a question about the A35 and is the answer not in the manual?

Page 1 Note: Product images shown may be different than actual product received PAX Technology Limited 1. Checklist Congratulations on receiving your PAX Technology payment terminal. We do hope you enjoy it! The box you have just opened should contain the following items: 1 x A35 POS Terminal...
Page 2 To use it correctly, you should refer to following instructions: 1) Power Connections Power can be supplied to the A35 by connecting the AC power adapter to the communication cable in the case of RS232 or USB configurations, or via a powered USB cable (12V Powered USB) where the connected POS terminal provides the power.
Page 3 To use the 1D/2D code reader, put the 1D/2D code toward the top center area of the LCD. 10) Electronic signature A35 supports electronic signature. Please be sure to use the finger to sign, do not use metal or sharp objects to operate the touch screen, so as not to damage the touch screen.
Page 4 Storage Environment Temperature:-20℃~70℃(-4℉~158℉)(Non-Charging) Humidity: 5%~95% (non-condense) 7. Icons Trademark notice: microSD logo is a trademark of SD-3C LLC. 8. Certifications The A35 passed the following certifications: • PCI PTS 6.x, SRED • EMV L1 & L2 • EMV CL L1 •...
Page 5 • • • • RoHS • PAX Technology reserves the right to change product technology specifications at any time. PAX Technology Limited Manufacturer: PAX Technology Website: http://www.pax.us...
