Summary of Contents for Pax Technology PX7A

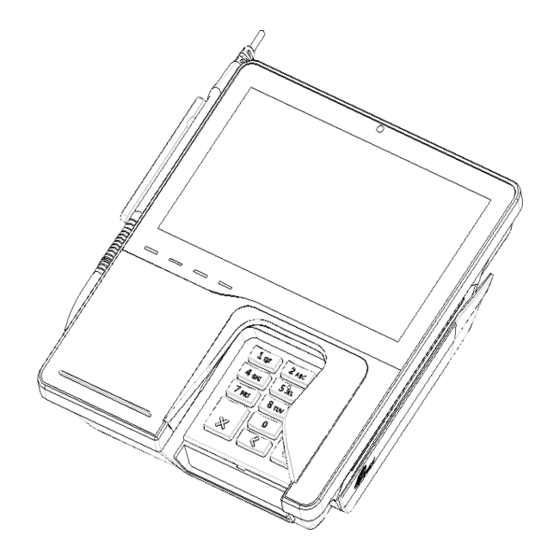

- Page 1 PX7A Multi-Lane Terminal PAX TECHNOLOGY LIMITED...

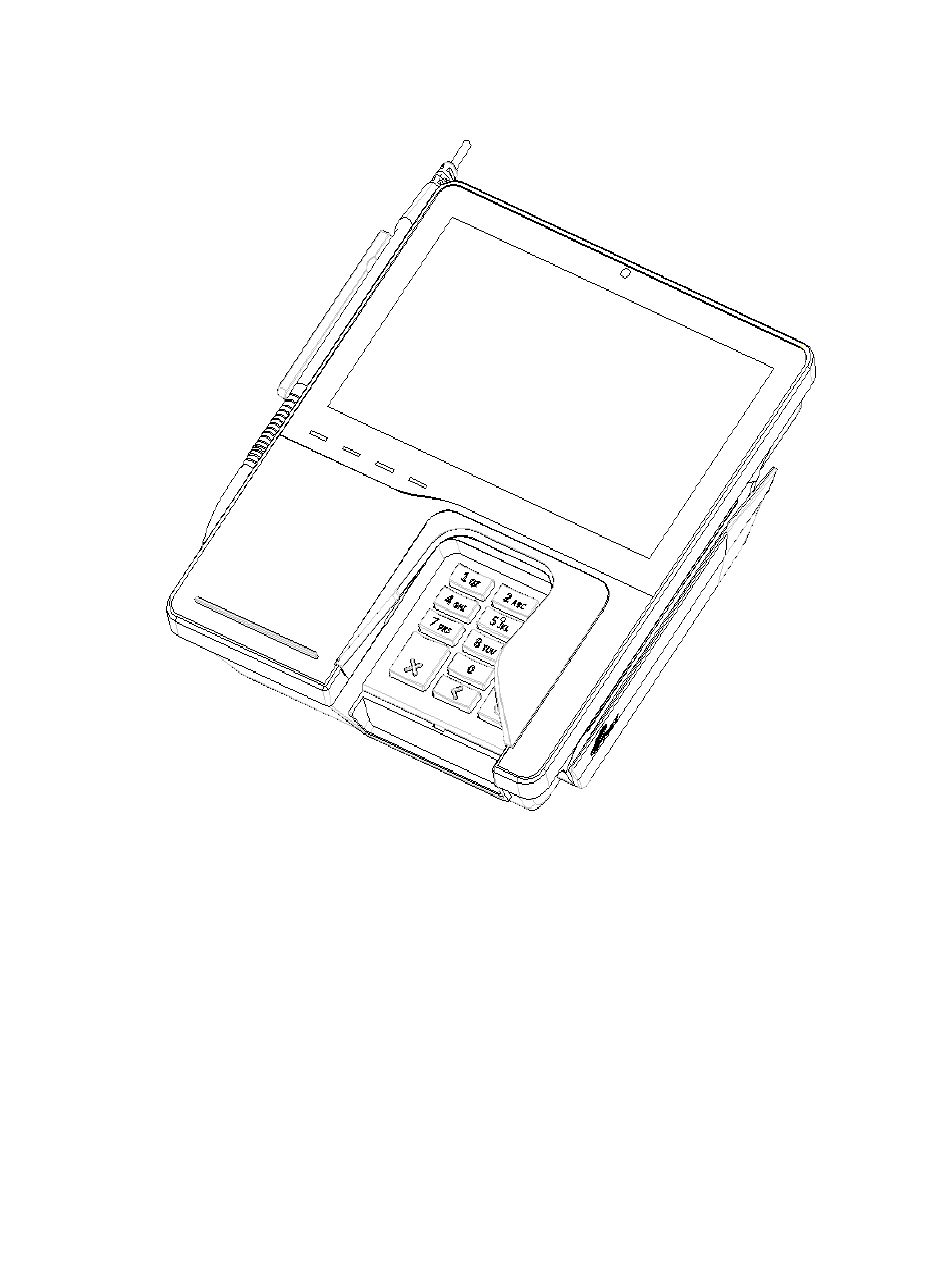

- Page 2 1.Product Description Top view Bottom View...
- Page 3 SAM Slots View PORTS View...
- Page 4 When pulling a magnetic card along the slot, make the magnetic stripe face the operator as indicated on the PX7A card. Bi-directional pulling the magnetic card is acceptable. It is recommended from top to bottom or vice versa, with constant speed.
- Page 5 Power Adapter: Input: 100～240VAC，50Hz/60Hz, 0.8 A Output: 9 VDC, 1 A Working Environment: Temperrature: 0℃～50℃(32℉~122℉) R.H.: 10%～93% (non-condense) Storage Environment: Temperrature: -20℃～60℃(-4℉~158℉) R.H.5%～90% (non‐condense) Dimensions: 200mm×185mm×44mm (L×W×H) Weight: 741g optional： Contactless card reader WIFI module BT module 5.Notice at Installation and Use Adopt a power socket with fuse and well-grounded.
- Page 6 PIN safe. Table：PX7A PIN-entry observation corridors v.s. PIN protection methods Observation Corridors Method Cashier Customers Customers On-Site Remote in Queue Elsewhere Camera Cameras PX7A in Check-Stand with shield PX7A on...
- Page 7 This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.
