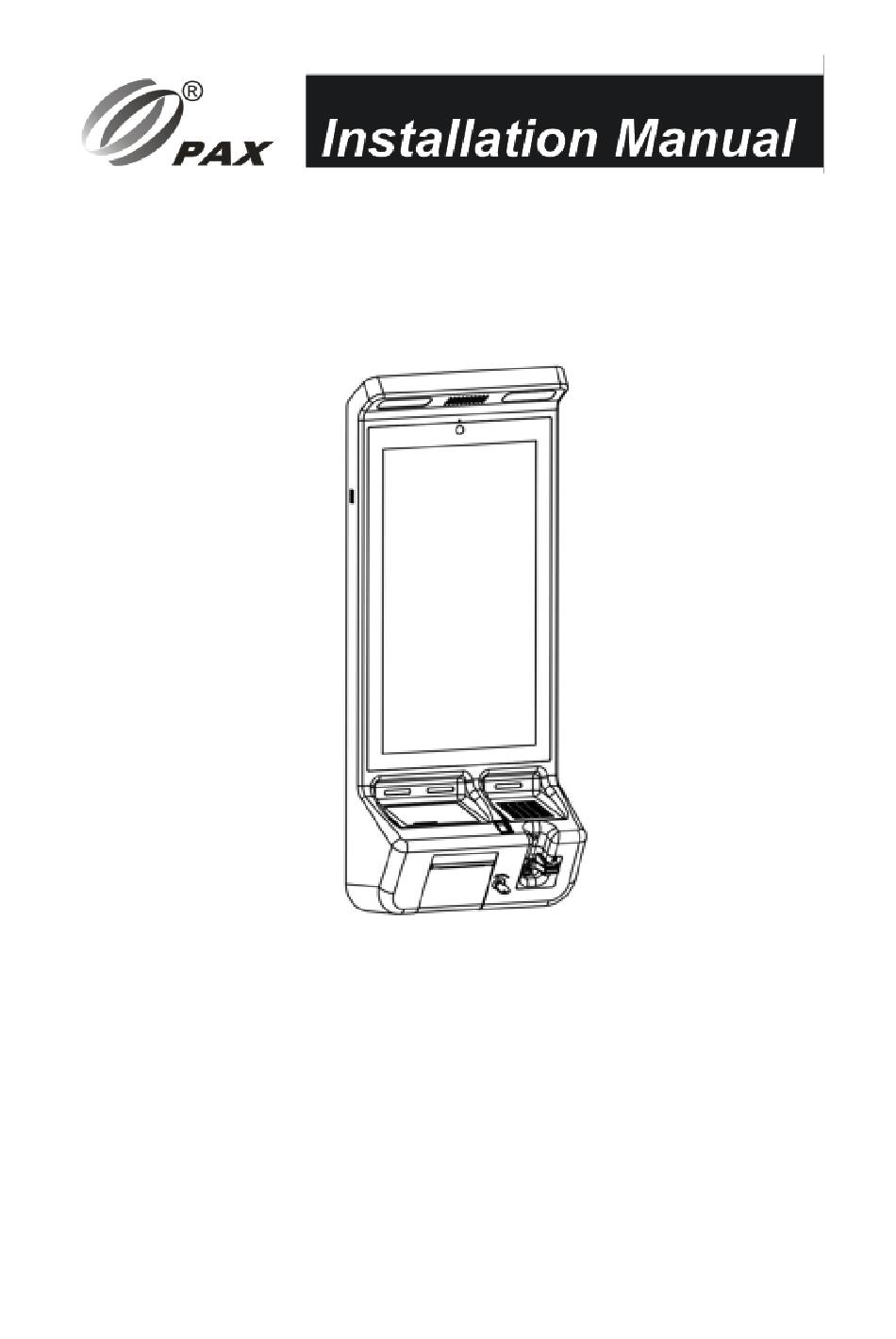

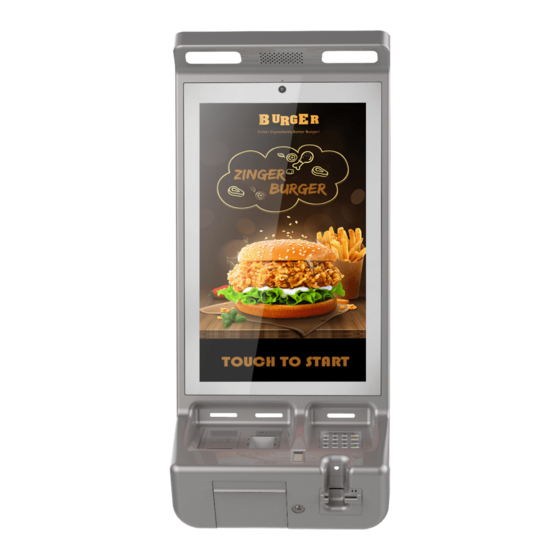

- Page 1 SK800 Smart Kiosk Note: Product images shown may be different than actual product received PAX TECHNOLOGY LIMITED...
-
Page 2: Contents Checklist
1、ContentsChecklist Please check the components after unpacking. If any are missing, please contact the dealer. Part SK800 Smart Kiosk SK800 Wall Bracket Printer Key Thermal Paper Roll M4-12 Combination Screw Expansion Screw Plastic Packaging Power Cable Telephone Handle (optional) Product Manual 2、Product Description... -
Page 3: Specifications
Interface Diagram 3、Operating Instruction · Power on: Plug in the AC power cable and turn on the power button. · Contactless module indicator: Light indication when using the Contactless module. · LED working indicator: Light indication when the device is working at night. ·... -
Page 4: Load Printer Paper
Micro SD card slot(Support maximum of 128GB) x 1 Peripheral Ports: RJ45 (LAN) x1 RS232 (DB9)x1 RS485 Half-duplex (RJ-11) x1 HDMIPort(1.4)x1 Power Port x1 Micro USB x1 Card Readers: 2-in-1 magnetic stripe card / IC card reader; Contactless card reader ... - Page 5 4. Pull out the end of the paper so that itextends past the cutting blade, Make surethe paper roll is placed in the direction asshown in the figure below. 5.Close the printer cover, and pull outthe key. Printer will automatically cut offthe extra paper, the paper is changed successfully.
-
Page 6: Install Introduction
6、Install introduction Installation List Part Picture Qty/pcs SK800Kiosk Wall Bracket M6-50 Expansion Screw M4-12 Combination Screw Installation Steps 1. Use 6pcs expansion screws to fix the bracket on the wall. Use an 8.0 mm diameter drill bit to drill holes in the wall according to the position of the bracket fixing hole. - Page 7 2.Use the 4pcs hooks on the back of the device to hang the whole device on the wall bracket. 3. Use 2pcs M4-12 combination 3screws to attach the machine to the wall bracket at the bottom of the machine.
-
Page 8: Installation And Usage Tips
4. The device installation is completed. 7、Installation and Usage Tips 1) There is no built-in battery, and the device can only be powered by the power adapter. 2) Avoid exposing the device in overheated, humid, dusty, or strong electromagnetic environment. 3) Do not vibrate, shake, or drop the device. - Page 9 Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for ...
- Page 10 Moving parts Keep body parts away from moving parts Hereby, PAX Computer Technology (Shenzhen) Co., Ltd. declares that the radio equipment type SK800 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address：...
- Page 11 PAX TECHNOLOGY LIMITED reserves the right to change product technology specifications without notifying. PAX TECHNOLOGY LIMITED Manufacturer: PAX Computer Technology (Shenzhen) Co.,Ltd. Address:4/F, No.3 Building, Software Park, Second Central Science-Tech Road, High-Tech Industrial Park, Shenzhen, Guangdong, P.R.C. Tel: 0755-86169630 Fax: 0755-86169634 Website: http://www.pax.com.cn...
