Summary of Contents for Pax Technology D200

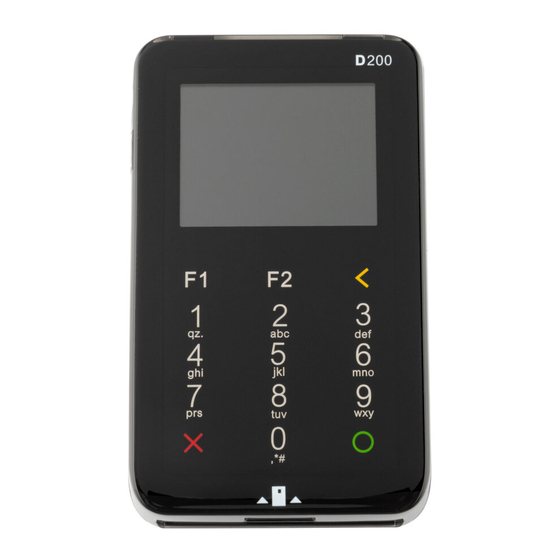

- Page 1 D200 Wireless POS Terminal PAX TECHNOLOGY LIMITED...
-

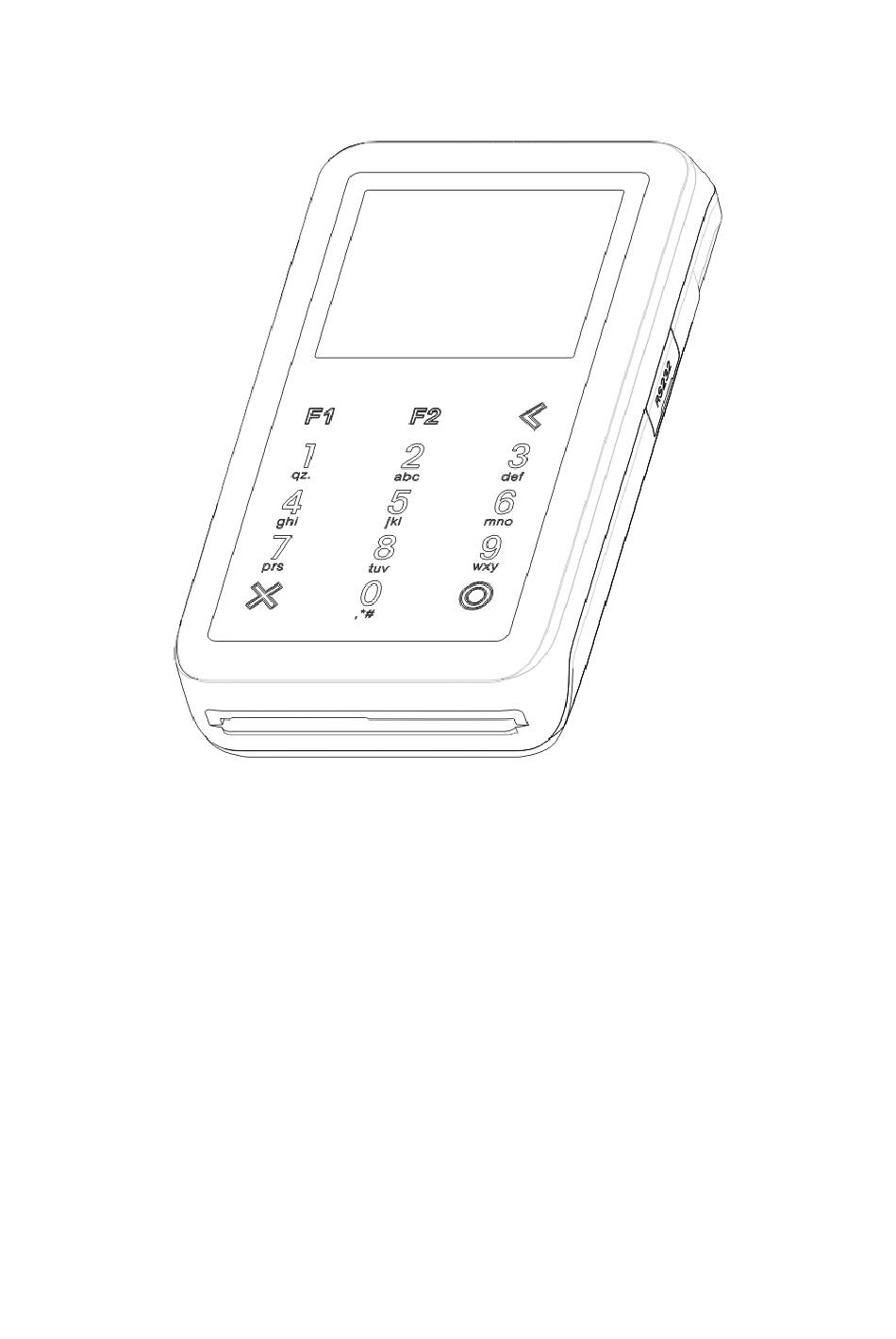

Page 2: Front View
Production Description： LCD Di spl ay M agnet ic St r ip Car d Solt RF Ant enna Ar ea Rs2 32 Conncet USB Connect Capacit ive Key Ar ea Bat t er y Cover Ic Car d Slot Front View Back View Screw M agneti c St ri p Car d Solt... - Page 3 ‘Di’ is heard, and then PAX LOGO will display on LCD. Power off: Press button for 3 seconds until Shutting down... can be seen. POS terminal is being turned off. 2） Magnetic Stripe Card When user swipes magnetic stripe card along the slot, the backside of card, which contains magnetic strip information, should be facing to the terminal.
- Page 4 Please refer to the picture below, the card read area is above the LCD. 4. Specifications Default CPU： 32-bit，ARM11 Memory：64MB SDRAM , 128MB NAND Flash Display：2.4 -inch 240x320 pixel color TFT LCD；LED backlight； Keypad：10 alphanumeric keys, 5 functional keys，touch key; Magnetic Card Reader ：Track 1/2/3，bi-directional swipe IC Card Reader：1 user card （EMV2000）...
- Page 5 8)When charged by the USB port of PC, charge time will be longer, we recommend charging using the adapter. 9)When D200 is in charging, if you can't turn on the device, and you just hear "Di Di", please charge it for longer, and try again later.
- Page 6 tested frequency bands, and placed in positions that simulate RF exposure in usage near the body. Although the SAR is determined at the highest certified power level, the actual SAR level of the while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network.
- Page 7 ISED Radiation Exposure Statement This EUT is in compliance with SAR for general population/uncontrolled exposure limits in ISED RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
