  • Page 1 D180 mPOS Terminal PAX TECHNOLOGY LIMITED...

  • Page 2: Product Description

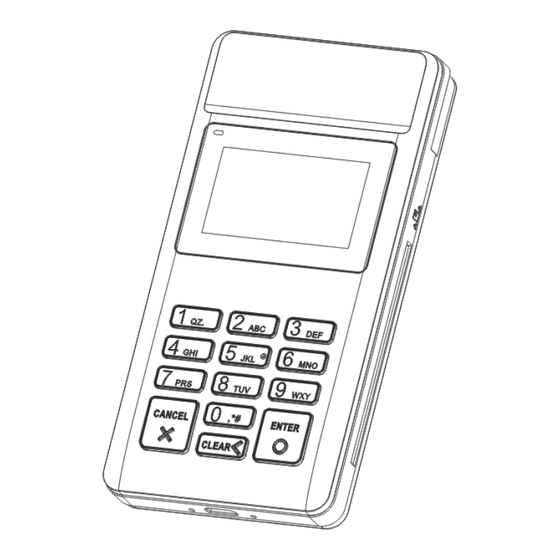

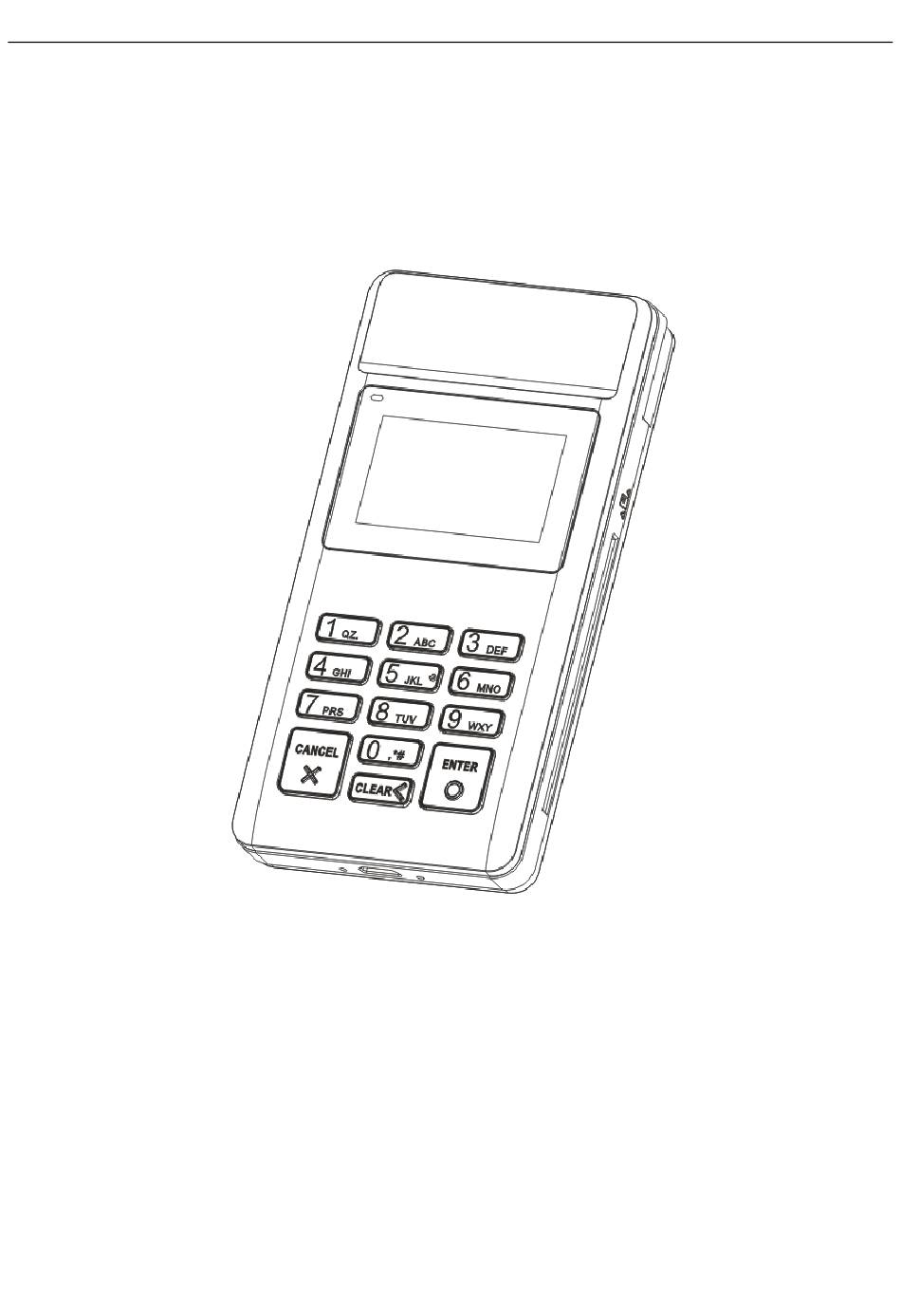

    1.Product Description Figure 1. Front view 1. Charging LED indicator 2. Power key 3. Magnetic stripe card reader 4. Display 5. Smart card reader 6. Keyboard...

  • Page 3: Quick Start

    Figure 2. Back view 7. MicroUSB 8. Serial number 9. Nameplate 10. PAX Logo 2.Quick Start Connect to PC with USB cable 1) Connect PC with D180 by USB cable. 2) Shopping and click PAY button on PC. 3) Confirm amount displayed on D180 screen. 4) Prompt for reading card on D180.
  • Page 4 Connect mobile equipment through Bluetooth 1) Turn on Bluetooth of the mobile equipment and scan for D180. By default, the device name of D180 is PAX D180_XXXX, and XXXX are the last 4 letters of the Bluetooth MAC address of D180, please notice that the device name may be modified according to user requirement.
  • Page 5 Swiping magnetic stripe card Figure 3.Swipe magnetic stripe card When swiping, the backside of the card must be faced up as shown in Figure 3. Bi-directional swiping is supported. Pleas swipe the card with a constant speed.
  • Page 6 Reading smart card Figure 4. Insert smart card When inserting smart card into its slot, the chip of smart card must be faced up. In order to avoid any physical damage to the card or the smart card slot of the terminal, it is recommended to insert the card gently.

  • Page 7: Specifications

    4.Specifications CPU: 32-bit secure processor Memory: 512KB Flash，64KB SRAM，External: 4M independent space Display: 128*64, 1.69’ LCD Keyboard: 10 numeric keys 3 soft-function keys 1 power key MSR Reader: Encryption transmission, track l/2/3, bi-directional Smart Card Reader: 1 User card (EMV 4.3) Optional Contactless card reader Communication: USB 2.0...

  • Page 8: Fcc Regulations

    FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 9: Rf Exposure Information

    This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. IC: 11689A-D180RF NEW labeling requirement: CAN ICES-3 (B)/NMB-3(B) IC Radiation Exposure Statement This EUT is very low power and compliance with IC RSS-102 exemption requirements.
