MSDB SERIES
ASSEMBLY, INSTALLATION AND OPERATION
MANUAL
P/N 110989 R1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSDB Series and is the answer not in the manual?

Questions and answers

Related Manuals for Finish Thompson MSDB Series

Summary of Contents for Finish Thompson MSDB Series

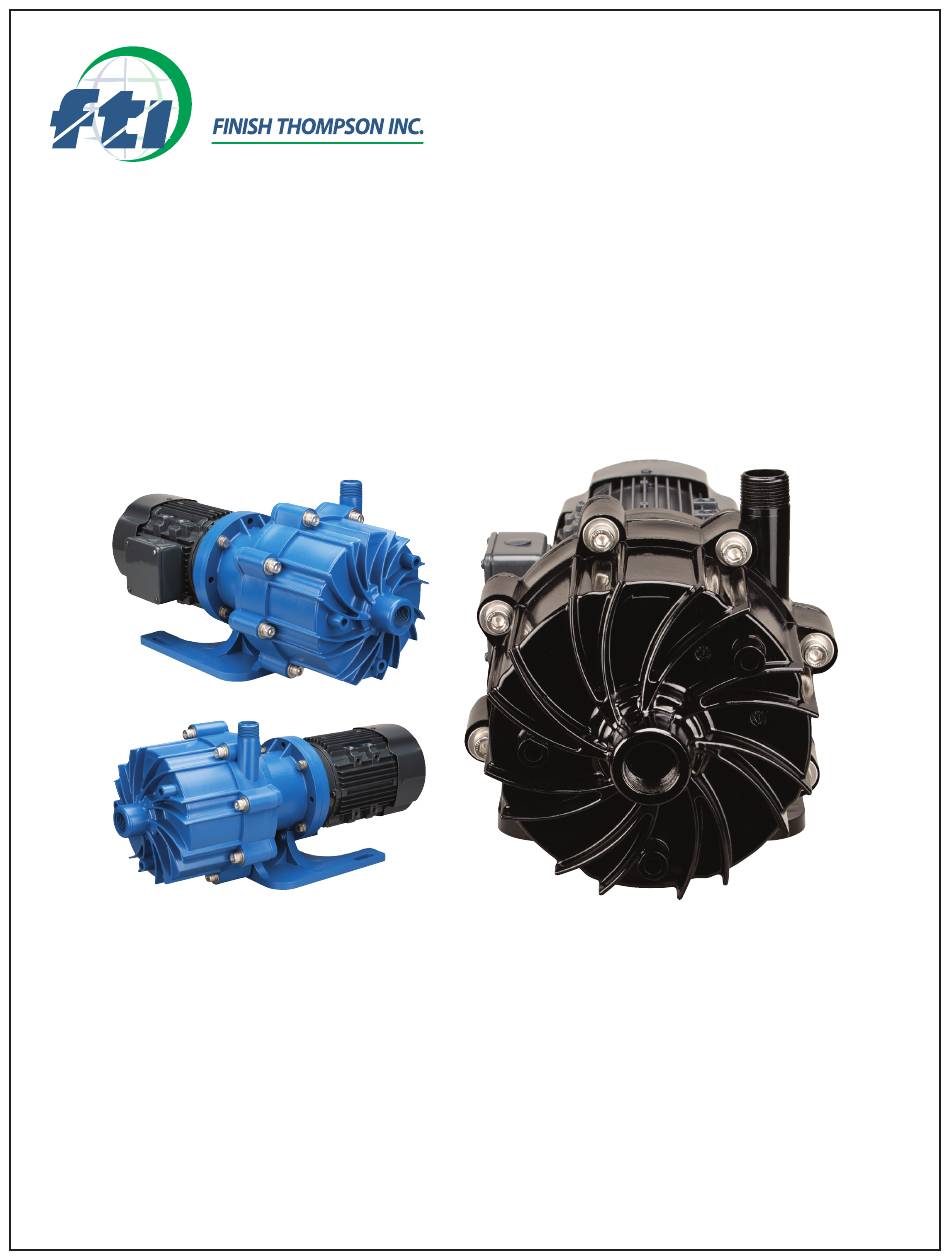

  • Page 1 MSDB SERIES ASSEMBLY, INSTALLATION AND OPERATION MANUAL P/N 110989 R1...
  • Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the drive motor for the centrifugal pump complies with the provisions of all relevant EU Directives.
  • Page 3 Atmosphere Group IIC/IIIC category 2 areas. This declaration applies to Finish Thompson, Inc ATEX MSDB Series pumps only manufactured out of carbon fiber filled PVDF with a conductive motor adapter and non-sparking ring designated by the letter “V” and “A” in the model number.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Description Page Number Important Information ..............5 Chemical Reaction Disclaimer ............ 5 Safety Precautions ................. 5 Installation/Operation Precautions ..........6 ATEX Safety Precautions ............6-7 MSDB Capabilities ................. 7 MSDB OIM Section I - Assembly ..........8 MSDB OIM Section II – Installation ..........9 MSDB OIM Section III - Start-up and Operation ....10 MSDB OIM Section IV - Maintenance ........13 MSDB OIM Section V - Disassembly ........

  • Page 5: Important Information

    WARNING: When pumping flammable or combustible liquids with a MSDB Series pump it is important to only pump liquids that are water soluble (miscible) and to follow these guidelines: You must use a PVDF pump.

  • Page 6: Installation/Operation Precautions

    3. You must select an explosion-proof FTI motor or provide your own explosion-proof motor. When pumping non-flammable or non-combustible liquids in a hazardous area using a MSDB Series pump, it is important to take these guidelines: You must select the non-sparking (Ns) bronze bump ring option. The non-sparking ring is pressed into the clamp ring or motor adapter and prevents sparking should the motor bearings fail and the outer mag drive assembly runs out of round.
  • Page 7 Protection Control A power monitor, flow switch, pressure switch or similar device must be used to protect against dry running, closed discharge valve or decoupling. Any of these conditions could lead to a rise in surface temperature of the pump. Construction Materials Pump must be manufactured from PVDF with a PVDF motor adapter and bronze bump ring and have the designation “-A”...

  • Page 8: Msdb Capabilities

    examined after six months of operation or after 2,000 hours of operation. If the pump is used on fluids with solids, high temperatures or other items that could cause accelerated wear, then this initial examination should be sooner. After the initial examination of the internal components and wear items are measured, a specific maintenance schedule can be determined.

  • Page 9: Msdb Oim Section Ii - Installation

    MSDB ASSEMBLY, INSTALLATION & OPERATION Unpacking and Inspection Unpack the pump and examine for any signs of shipping damage. If damage is detected, save the packaging and notify the carrier immediately. Section I – Assembly Pumps with Motors Proceed to “Installation” Section. Pumps without Motors NOTE: 184TC and 100/112 frame motors must have feet.

  • Page 10: Msdb Oim Section Iii - Start-Up And Operation

    6. Slide the outer drive magnet assembly (item 13) onto the motor shaft until the motor shaft contacts the snap ring in the bore of the drive. Figures 4 and 5. Secure the drive on the motor shaft. Figure 4 Figure 5 WARNING: Be careful, magnets will try to attract tools.
  • Page 11 Section II - Installation Mounting Pump foot should be securely fastened to a solid foundation. If the pump was received with plastic shipping shims, these shims may be used as additional support for the motor feet (though not required). Piping CAUTION: The NPSH available to the pump must be greater than the NPSH required.
  • Page 12 CAUTION: Do not operate the pump to check rotation until the pump is full of liquid or damage may occur even if the motor is “bumped” to check motor rotation direction. Check all electrical connections with the wiring diagram on the motor. Make sure the voltage, frequency, phase and amp draw comply with the supply circuit.

  • Page 13: Msdb Oim Section Iv - Maintenance

    Section IV - Maintenance Recommended maintenance schedule The recommended maintenance schedule depends upon the nature of the fluid being pumped and the specific application. If the pump is used on a clean fluid, it is recommended that the pump be removed from service and examined after six months of operation or after 2,000 hours of operation.
  • Page 14 3. For pumps with motors 3 HP (2.2 kW) or larger, place the pump and motor on the floor. Remove the (4) bolts, lock washers and flat washers (items 35, 36, 37) securing the pump to the motor. See figure 9. Make sure the motor is on the fan end with the pump facing up.
  • Page 15 Remove the middle housing (item 4) and 2nd stage impeller (item 5). Impeller is pressed on to the end of the drive shaft and can be simply pulled straight off. The use of small pry bars may be necessary to remove the impeller. Gently pry impeller off and remove the 2nd stage diffuser (item 3).
  • Page 16 10. Check the impeller thrust rings and bushing for wear. See Figures 27 & 28. Figure 27 - Impeller Figure 28 - 1st stage Thrust Ring (2A) impeller bushing (item 2B) 11. Remove the barrier (item 9) from the clamp ring (item 11). Pry the barrier out with your hand.

  • Page 17: Msdb Oim Section Vi - Reassembly

    Outer Drive Replacement Remove the setscrews (item 15B) from the side of the drive (NEMA motors) or the bolt, lock washer and flat washer (items 32, 33 & 34) from the center of the drive (metric motors). WARNING: Be careful, tools will want to be attracted to the magnets. 2.
  • Page 18 For 56C, 145TC and 80 frame B14, re-install the plastic foot (item 14) to the motor adapter (item 13). Use the longer M6 bolts, lock washers and flat washers (items 25, 26 and 27) for the front bolt holes towards the clamp ring. See figure 41. Use the shorter M6 bolts, lock washers and flat washers (items 28, 29, 30 &...
  • Page 19 3. Install the inner volute (6) over the drive shaft. See figures 49 & 50. Figure 49 Figure 50 4. Slide one diffuser assembly (item 3) over the drive shaft. Align the cutout in the diffuser with the volute shape in the inner volute. The two parts should nest together and the diffuser should sit flat.
  • Page 20 8. Place the 1st stage impeller (item 2) into position. Align the flats on the drive shaft with the flats in the impeller shaft. These two parts fit snugly and some pressure may be required to put the impeller into position. See figures 62 & 63. Figure 62 Figure 63 9.

  • Page 21: Msdb Oim Exploded View - Parts Drawing

    MSDB Exploded View - Parts Diagram 24 23...

  • Page 22: Msdb Oim Parts Table

    MSDB Spare Parts List Item Description Pump Material Polypro PVDF Standard Housing with Ring & Shaft NPT Threads w/ alumina ring & shaft 105860 105860-2 BSP Threads w/ alumina ring & shaft 105860-1 105860-3 NPT Thread w/ SiC ring & shaft 105860-4 105860-6 BSP Thread w/ SiC ring &...
  • Page 23 Barrier O-Ring Buna 107281 Clamp Ring Painted Cast Iron (Standard) 107228 107228-1 Painted cast iron with non-sparking ring 107321 107321-1 Painted cast iron (ATEX) 107321-1 Stainless Steel 108600 108600 Stainless Steel with non-sparking ring 108600-1 108600-1 Stainless steel (ATEX) 108600-1 Clamp Ring/Motor O-Ring Buna 107282...
  • Page 24 Motor Adapter Flange 182/184TC frame 105751-1 105751-2 80 frame B14 105724-1 105724-2 90 frame B14 105725-1 105725-2 100/112 frame B14 105726-1 105726-2 80/90 frame B5 106274 106274-1 100/112 frame B5 107315 107315-1 80 frame B14 ATEX 105724-3 90 frame B14 ATEX 105725-3 100/112 frame B14 ATEX 105726-3...
  • Page 25 Rear Foot Nut 107286 Drive Bolt (IEC Motors Only) 80 Frame 105765 90 Frame 105770 100/112 Frame 105774 Drive Lockwasher (IEC Motors Only) 80 Frame J100672 90 Frame J102282 100/112 Frame J100115 Drive Flat Washer (IEC Motors Only) 80 Frame 105767 90 Frame 105722...
  • Page 26 1ST STAGE IMPELLER ASSEMBLY 1ST STAGE IMPELLER ASSEMBLY (INCLUDES CARBON BSHG, PTFE FRONT THRUST (INCLUDES PTFE BSHG, PTFE FRONT THRUST RING, RING, ALUMINA CERAMIC REAR THRUST RING) ALUMINA CERAMIC REAR THRUST RING) IMP # PART # IMP # PART # 105935 105935-2 105935-24...
  • Page 27 2ND STAGE IMPELLER ASSEMBLY 2ND STAGE IMPELLER ASSEMBLY (INCLUDES PTFE FRONT THRUST RING, ALUMINA (INCLUDES SiC FRONT THRUST RING, ALUMINA CERAMIC REAR THRUST RING) CERAMIC REAR THRUST RING) IMP # PART # IMP # PART # 111088 111311 111088-6 111311-1 111088-10 111311-2 111088-14...
  • Page 28 3RD STAGE IMPELLER ASSEMBLY ASSY (INCLUDES PTFE FRONT THRUST RING, ALUMINA CERAMIC BUSHING) IMP # POLYPRO PVDF PART # PART # 6-POLE 105932-120 105932-138 8-POLE 105932-114 105932-132 10-POLE 105932-108 105932-126 6-POLE 105932-121 105932-139 8-POLE 105932-115 105932-133 10-POLE 105932-109 105932-127 6-POLE 105932-122 105932-140 8-POLE...
  • Page 29 3RD STAGE IMPELLER ASSEMBLY ASSY 3RD STAGE IMPELLER ASSEMBLY ASSY (INCLUDES PTFE FRONT THRUST RING, PTFE BUSHING) (INCLUDES SiC FRONT THRUST RING, SiC BUSHING) IMP # POLYPRO PVDF IMP # POLYPRO PVDF PART # PART # PART # PART # 6-POLE 105932-48 105932-102...

  • Page 30: Msdb Oim Section Vii - Troubleshooting

    Leak in suction piping • Foot valve or suction opening not submerged enough Thank you for your purchase of this quality Finish Thompson • Foot valve too small or leaking product. Be sure to take a minute to register your pump at •...
  • Page 31 Part Number 110989 R1 2/15/2021 Order fax: 814-459-3460 Tech Service: 800-888-3743...
