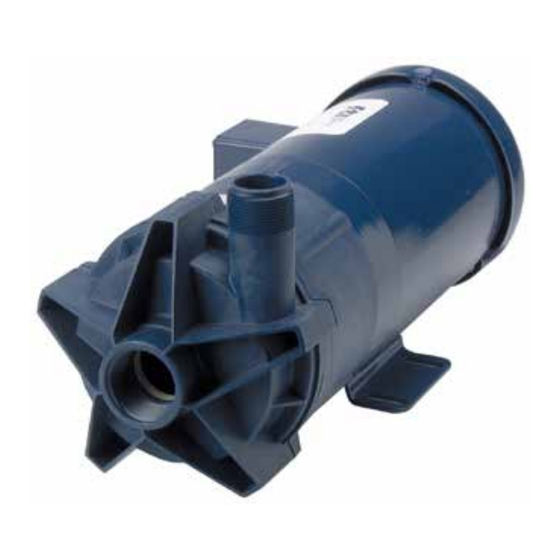

Sealless non-metallic centrifugal pumps

Advertisement

KC11 SERIES
Sealless Non-Metallic Centrifugal Pumps
Installation & Maintenance Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC11 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Finish Thompson KC11 Series

  • Page 1 KC11 SERIES Sealless Non-Metallic Centrifugal Pumps Installation & Maintenance Instructions...
  • Page 2: Installation

    ASSEMBLY 6. Install the wet end assembly by grasping the discharge with your right hand the “fins” (marked 3 and 5 in Figure 2) with your left WARNING: Magnet field hazard. This pump contains powerful rare hand. Carefully align the wet end with the motor adapter and earth magnets.
  • Page 3: Operation

    Figure 3 FLUSH SYSTEMS 1. Fully close suction and discharge valves. Discharge Valve Suction 2. Connect water supply to water inlet valve. Valve 3. Connect drain hose to water outlet valve. Water Inlet Valve 4. Open inlet and outlet valves and flush system until pump is clean (approximately 5 minutes).
  • Page 4: Chemical Reaction Disclaimer

    TROUBLESHOOTING NO DISCHARGE 1. Pump not primed. Figure 5 2. Discharge head too high. 3. Suction lift too high. Insufficient NPSH. 4. Closed valve. 5. Viscosity too high (magnets uncoupled). 2. To replace the bushing, place the top of the impeller on an arbor INSUFFICIENT DISCHARGE press with the thrust ring (item 2B) face down.
  • Page 5: Warranty

    Warranty Registration Thank you for your purchase of this quality Finish Thompson product. Be sure to take a minute to register your pump at Finishthompson.com/warranty.
  • Page 6 Figure 6 Part Number Part Number Item Qty Description Item Qty Description Polypropylene PVDF/ATEX PP, PVDF, & ATEX Drive Magnet Assy 56C Motors A101019-1 Housing Assy - NPT w/ ceramic thrust ring A101014-1 A101014-2 Drive Magnet Assy 145TC Motors A101019-2 Housing Assy - BSP w/ ceramic thrust ring A101014-4 A101014-5 Drive Magnet Assy 80 Frame Motors...
