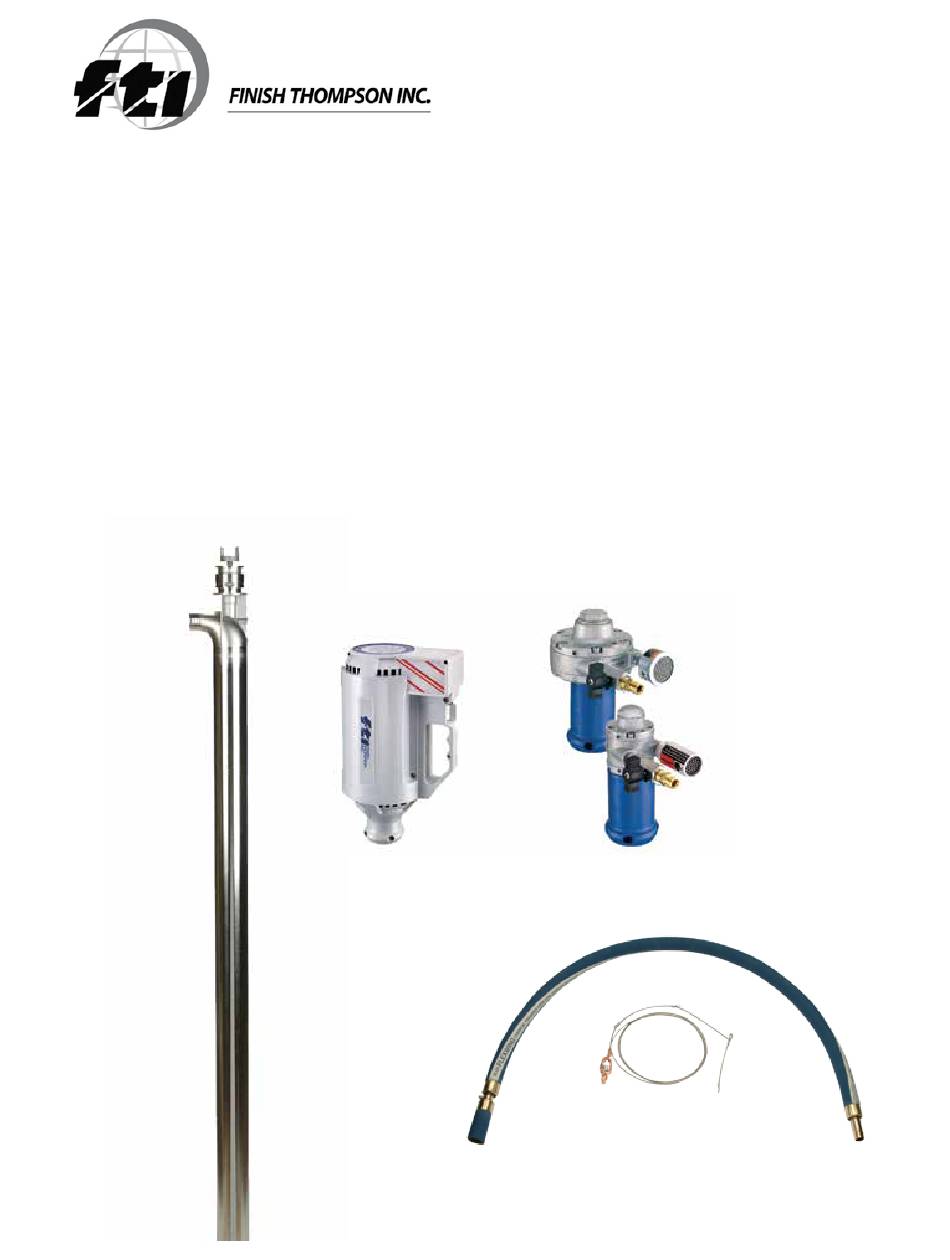

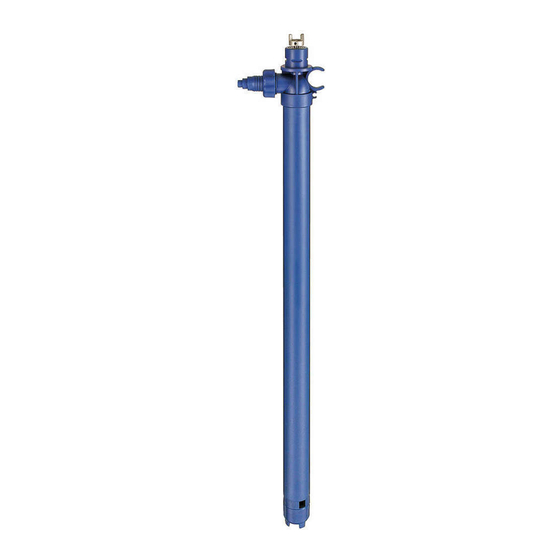

- Page 1 PF SERIES PUMPS PFS ATEX VERSION (INCLUDES M6A, M6XA, M10X MOTORS & SPK) OPERATION & PARTS MANUAL...
-
Page 2: Table Of Contents
Introduction This manual pertains to the PF Series, specifically the ATEX version of the PFS stainless steel drum pump. Finish Thompson Inc. thanks you for choosing our products. We believe the use of our products will be fully satisfactory. When properly installed and operated, your Finish Thompson motor and pump will provide long, trouble-free ser- vice;... -
Page 3: Warranty, General Terms & Conditions
The warranty of the products shall be valid for a period of 12 months from the date of delivery, under the condition that notice of the alleged defect to the products or parts thereof be given to Finish Thompson, Inc. within the term of 8 days from the discovery. -
Page 4: Safety
The personnel in charge of the installation, the operation, and the maintenance of the pump must be qualified and able to per- form the operations described in this manual. Finish Thompson, Inc. shall not be held responsible for the training level of personnel and for the fact that they are not fully aware of the contents of this manual. -
Page 5: Pump Specifications
PUMP SPECIFICATIONS MODEL PFS ATEX Outer Tube Diameter 2” (51 mm) Discharge Type 1” hose barb Max. Specific Gravity 1.83 Max. Viscosity 500 cP 5°F Min. to 220°F Max. Min./ Max. Fluid Temperature 21°C Min. to 105°C Max. Wetted Materials 316 Stainless Steel, Perlast, PTFE, ETFE 5-5/16”... -
Page 6: Atex Specifications
ATEX COMPLIANCE The FTI PFS drum pump has been designed for use in hazardous environments. It meets the requirements set forth by EC directive 94/9/EC. This pump is designed to operate in zone 0 where explosive atmospheres are present. All three components (drum pump tube, motor and Static Protection Kit) must be properly installed. -
Page 7: Pfs Installation
Installation, Assembly & Maintenance Instructions PFS Installation Installation 1. Remove the drum pump and motor from its packaging and inspect for shipping damage. 2. Spin the pump coupling to verify there is no binding. Verify that the black rubber coupling insert is firmly seated in the metal pump coupling. -
Page 8: Disassembly
Ground wire attachment to motors: Electric Explosion Proof: 1. Screw #10-32 plated nut onto exposed machine screw in motor housing. 2. Attach #10 ring terminal from the end of the ground wire assembly to exposed machine screw in motor housing using #10-32 plated nut and #10 lock washer. Air Motor: 1. -
Page 9: Inspection
Inspection 1. Check the housing cover (item 16), the impeller (item 15), and the impeller housing (item 13) for wear, rub- bing, or damage from foreign objects. Replace if damaged. Note: The double impeller design of this pump is dependant on the impeller working correctly. Any damage to the impeller can cause pump failure. -
Page 10: Exploded View
PFS ATEX SPARE PARTS EXPLODED VIEW... -
Page 11: Pump Tube Spare Parts List
PUMP SPARE PARTS LIST ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF J100012 BEARING ASSEMBLY A101110 LIP SEAL 1/4” 107622 LOCK WASHER #8 BRASS J100823 SCREW #8-32 X 1/4 BRASS PAN HEAD J100822 INTAKE TUBE ASSEMBLY 27” MODELS 107619-1 40”... -
Page 12: M6A Spare Parts List & View
M6A AIR MOTOR SPARE PARTS LIST & VIEW ITEM DESCRIPTION PART NUMBER AIR MOTOR M101717 PIPE NIPPLE J100107 HEX REDUCER BUSHING J100057 BALL VALVE J100073 HOSE FITTING J100036 MUFFLER J100033 SET SCREW J100040 AIR MOTOR MOUNT M100013-3 CAP SCREW SOCKET HEAD J100023 J100024 HALF COUPLING... -
Page 13: M6Xa Spare Parts List & View
M6XA AIR MOTOR SPARE PARTS LIST & VIEW ITEM DESCRIPTION PART NUMBER AIR MOTOR M101720 PIPE NIPPLE J102463 BALL VALVE J100073 HOSE FITTING J100036 MUFFLER J100074 SET SCREW J100040 AIR MOTOR MOUNT M100013-4 CAP SCREW SOCKET HEAD J100023 J100024 HALF COUPLING J101500 LUBRICATOR J100035... -
Page 14: M10X Spare Parts List & View
M10X ELECTRIC MOTOR SPARE PARTS The “M10X” Series motor housing repair kit number is A101455. Repairs to any item other than the thermoplastic enclosure voids warranty. Note: Motor housing repair kits include motor covers, labels and screws to repair the motor should it be damaged. -
Page 15: Atex Certificates
M10X Switch Replacement Instructions Warning: Motor is ATEX certified and repair work must be performed by persons with competent electrical skills who are familiar with ATEX regulations. Figure 1 Warning: Make sure the machined aluminum surfaces of the explosion proof housing are not scratched or damaged during assembly/disassembly. - Page 17 EU DECLARATION OF CONFORMITY Finish Thompson Inc. hereby declares that the following machines fully comply with the applicable health and safety requirements as specified by the EU Directives listed. This declaration is valid provided that the devices are fully assembled and no modifications are made to these machines.
- Page 18 EU DECLARATION OF CONFORMITY Finish Thompson Inc. hereby declares that the following machines fully comply with the applicable health and safety requirements as specified by the EU Directives listed. This declaration is valid provided that the devices are fully assembled and no modifications are made to these machines.
- Page 19 EU DECLARATION OF CONFORMITY Finish Thompson Inc. hereby declares that the following machines fully comply with the applicable health and safety requirements as specified by the EU Directives listed: Type of Device: Pump Motor Pump Motor Models: M6A, M6XA EU Directives:...
