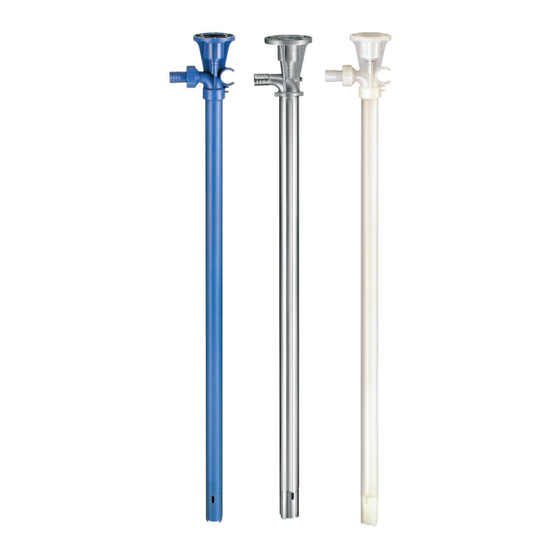

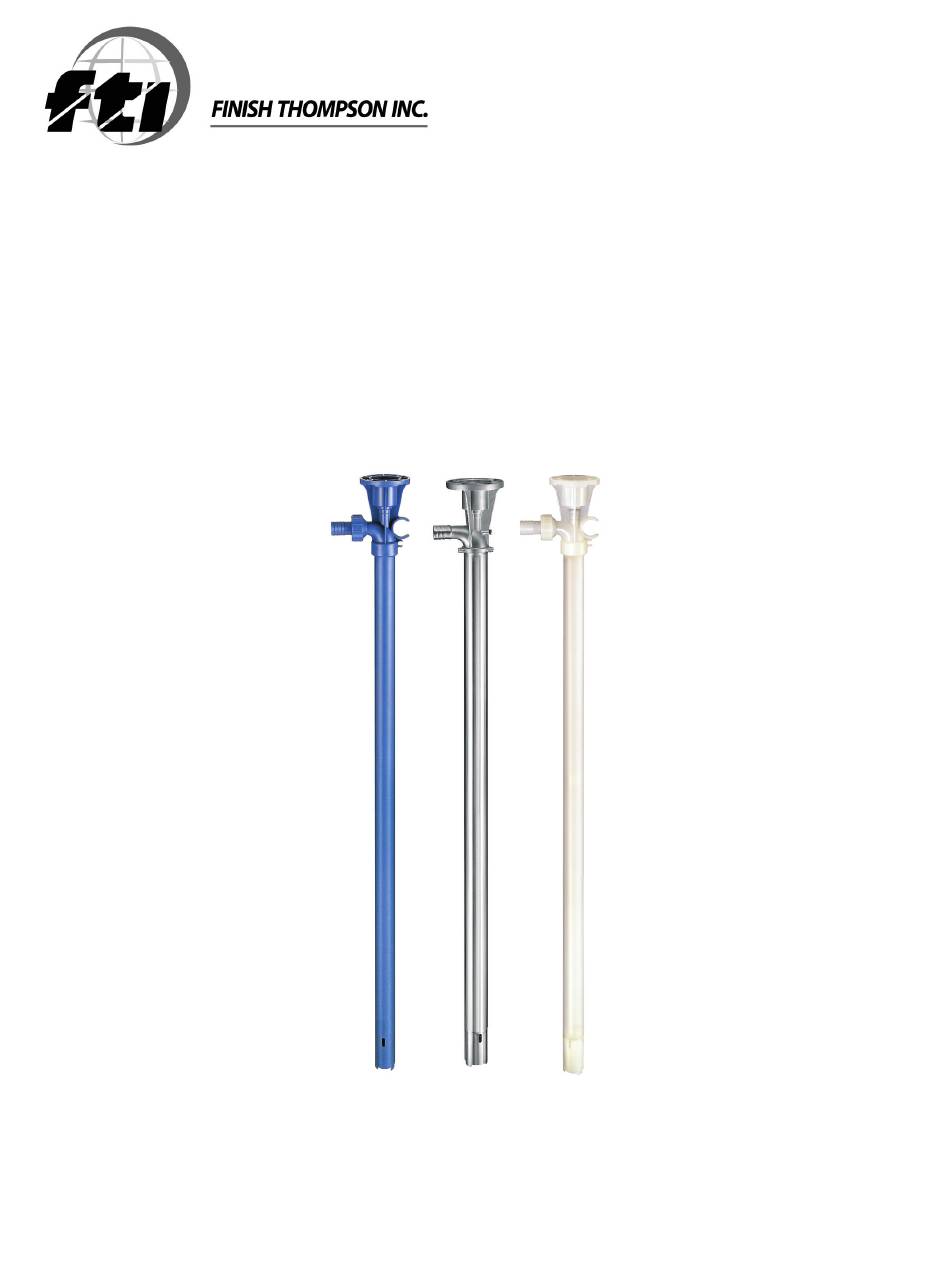

- Page 1 EF SERIES PUMPS EFP, EFS, & EFV OPERATION & PARTS MANUAL P/N 107317 R12...
- Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the drive motor for the Drum and Container Pump complies with the provisions of all relevant EU Directives.
-
Page 3: Table Of Contents
Introduction This manual pertains to the EF Series drum pumps and accessories. Finish Thompson Inc. thanks you for choosing our products. We believe the use of our products will be fully satisfactory. When properly installed and operated, your Finish Thompson motor and pump will provide long, trouble-free service; therefore, please read this manual carefully before carrying out any operations on the pump/motor unit. -
Page 4: Warranty, General Terms & Conditions
The warranty of the products shall be valid for a period of 12 months from the date of delivery, under the condition that notice of the alleged defect to the products or parts thereof be given to Finish Thompson, Inc. within the term of 8 days from the discovery. -
Page 5: Safety
The personnel in charge of the installation, the operation, and the maintenance of the pump must be qualified and able to per- form the operations described in this manual. Finish Thompson, Inc. shall not be held responsible for the training level of personnel and for the fact that they are not fully aware of the contents of this manual. -
Page 6: Important Safety Information For Pumping Flammable Or Hazardous Substances
IMPORTANT SAFETY INFORMATION FOR PUMPING FLAMMABLE OR HAZARDOUS SUBSTANCES Read these instructions before operating the pump and motor equipment. The manufacturer will not be responsible for any damage to property or to persons caused by improper use of the equipment. WARNING: It is the responsibility of the user to operate the pump in conformance with OSHA rules for dispensing liquids. -
Page 7: Specifications & Dimensions
PUMP SPECIFICATIONS MODEL EFP MODEL EFV MODEL EFS Outer Tube Diameter 1-1/4” (3.22 cm) 1-5/16” (3.3 cm) 1-1/4” (3.2 cm) Discharge Spout 3/4” Barb 3/4” Barb 3/4” Barb Discharge Thread 1” NPT 1” NPT Optional Max. Specific Gravity Max. Viscosity 300 cP 300 cP 300 cP... -
Page 8: Operation
Check drum pump accessories at www.finishthompson.com or contact your local Finish Thompson distributor for bung adapter info. 3. Make sure the pump’s discharge hose is properly secured before operating the motor, torque Finish Thompson hose clamps to 25 in-lbs(2.8 N·m). -
Page 9: Disassembly
DISASSEMBLY & REASSEMBLY INSTRUCTIONS Disassembly 1. Cover, Impeller, & Diffuser Removal - Unthread the diffuser cover (item 19). Turn it clockwise (left-hand thread). See Figure 1. Unthread the impeller (item 18) turning it counter clockwise (right hand thread) using a flat-head screwdriver or hand while holding the coupling insert and coupling (items 1 &... -
Page 10: Reassembly
If the bearing needs to be replaced it is recommended to purchase a new shaft, bearing and half coupling assembly because the EF Series shaft can be damaged when removing or installing the bearing. 3. Shaft Installation - Slide the shaft down through the seal until the bearing engages the bearing bore in the head. - Page 11 6. Diffuser Installation - for all models - Install the diffuser (item 17) onto the bottom of the outer tube. Insert the shaft through the small support opening on the diffuser. See figure 9. The small support opening will insert up inside the inner tube (item 13).
- Page 12 EFP & EFV SERIES PUMP EXPLODED VIEW...
-
Page 13: Exploded Views - Efp/Efv/Efs Pump Tubes
EFS SERIES PUMP EXPLODED VIEW... -
Page 14: Pump Tube Spare Parts List
PUMP SPARE PARTS LIST PART NUMBER ITEM DESCRIPTION MODEL EFP MODEL EFV MODEL EFS COUPLING INSERT J103422 J103422 J103422 COUPLING HALF 107300 107300 107300 BEARING AVAILABLE ONLY AS PART OF COUPLING HALF, BEARING & SHAFT ASSEMBLY SHAFT AVAILABLE ONLY AS PART OF COUPLING HALF, BEARING & SHAFT ASSEMBLY COUPLING HALF, BEARING &... - Page 15 PART NUMBER ITEM DESCRIPTION MODEL EFP MODEL EFV MODEL EFS DIFFUSER KIT (DIFFUSER, COVER, BUSHING, & O-RING) † 316SS w / PTFE BUSHING & FKM O-RINGS 110115 , 19 † † 20, 21 316SS w / PTFE BUSHING & PERLAST O-RINGS 110116 316SS w / PTFE BUSHING &...
- Page 16 Service 1-800-888-3743 P/N 107317, Rev 12, 4/3/2020...
