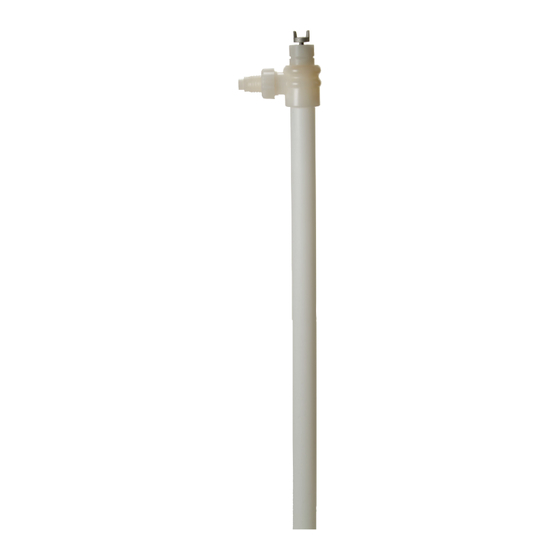

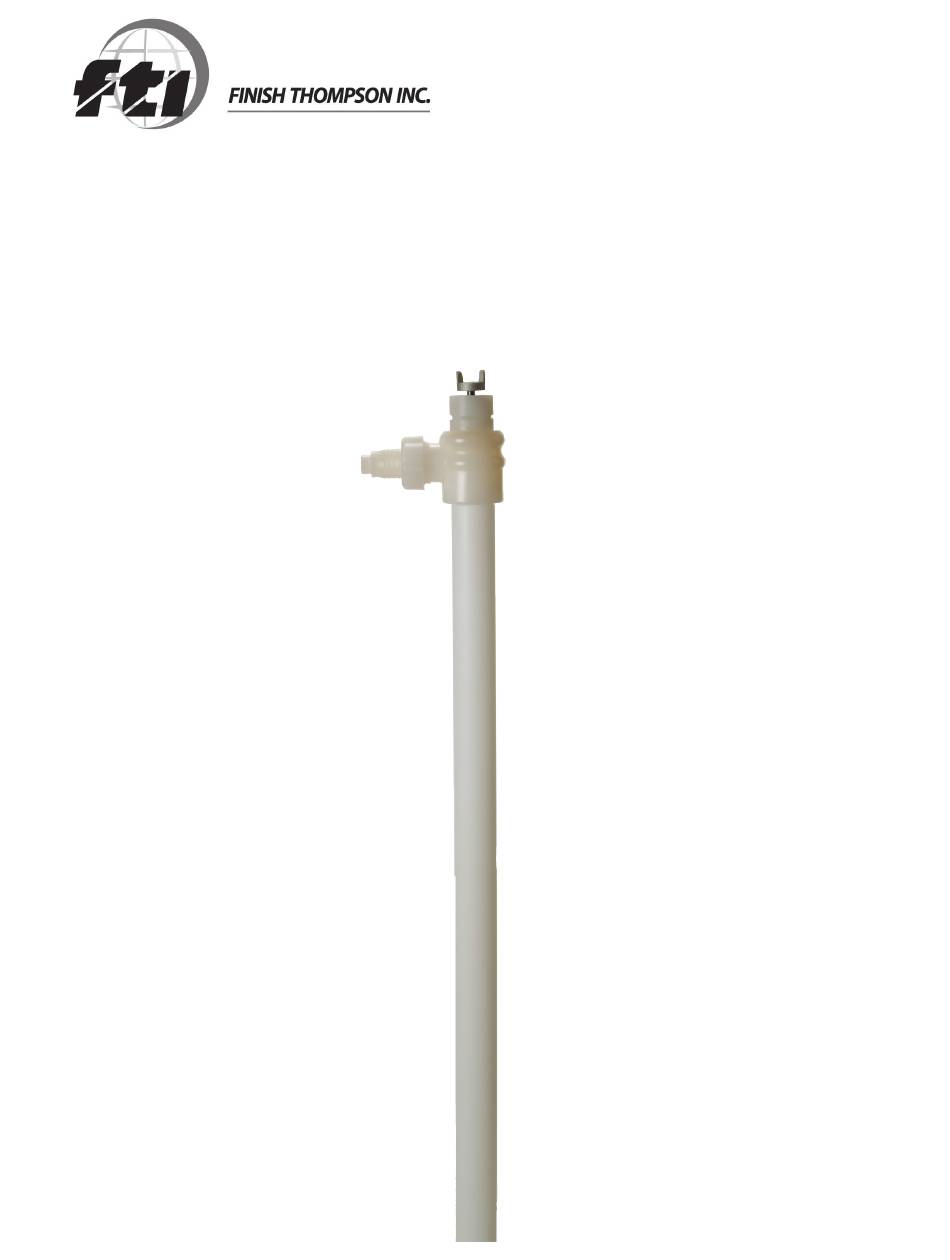

- Page 1 TBP SERIES PUMPS OPERATION & PARTS MANUAL P/N 108100 R7...
- Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the drive motor for the Drum and Container Pump complies with the provisions of all relevant EU Directives.
-
Page 3: Table Of Contents
Introduction This manual pertains to the TBP Series drum pumps and accessories. Finish Thompson Inc. thanks you for choosing our products. We believe the use of our products will be fully satisfactory. When properly installed and operated, your Finish Thompson motor and pump will provide long, trouble-free service; therefore, please read this manual carefully before carrying out any operations on the pump/motor unit. -
Page 4: Warranty, General Terms & Conditions
The warranty of the products shall be valid for a period of 12 months from the date of delivery, under the condition that notice of the alleged defect to the products or parts thereof be given to Finish Thompson, Inc. within the term of 8 days from the discovery. -
Page 5: Safety
The personnel in charge of the installation, the operation, and the maintenance of the pump must be qualified and able to per- form the operations described in this manual. Finish Thompson, Inc. shall not be held responsible for the training level of personnel and for the fact that they are not fully aware of the contents of this manual. -
Page 6: Mportant Safety Information For Pumping Flammable Or Hazardous Substances
IMPORTANT SAFETY INFORMATION FOR PUMPING FLAMMABLE OR HAZARDOUS SUBSTANCES Read these instructions before operating the pump and motor equipment. The manufacturer will not be responsible for any damage to property or to persons caused by improper use of the equipment. WARNING: It is the responsibility of the user to operate the pump in conformance with OSHA rules for dispensing liquids. -
Page 7: Pump Specifications
PUMP SPECIFICATIONS MODEL TBP Outer Tube Diameter 1.66” (4.2 cm) Discharge Thread 1” hose barb Max. Specific Gravity Max. Viscosity 200 cP 35°F Min. to 150°F Max. Min./ Max. Fluid Temperature (1.6°C Min. to 66°C Max.) Wetted Materials Pure polypropylene, pure PVDF, PTFE, Alloy 625... -
Page 8: Installation
4. Install the motor according to instructions in the appropriate motor manual. 5. Attach discharge hose and install pump into the container. Torque Finish Thompson hose clamps to 25 in-lbs (2.8 N·m). Note: Pumps with the standard 1” barb spout ship with a variable orifice fitting, which limits the flow of the pump to 10 gpm. -
Page 9: Inspection
2. Holding the pump coupling half (item 2) in one hand, unthread the pump shaft (item 10) from the bearing assembly (item 3) by turning it counterclockwise (right hand threads). 3. Remove the bearing assembly (item 3) and the seal assembly (item 4) from the pump head (item 5) being careful not to damage the threaded area at the bottom of the bearing assembly. -
Page 10: Exploded View
TBP SPARE PARTS EXPLODED VIEW... -
Page 11: Pump Tube Spare Parts List
SPARE PARTS LIST ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF 1/4”-20 THREAD (FOR S/N 211770 & ABOVE) J100012-2 BEARING ASSEMBLY INCLUDES COUPLING HALF A101110 SEAL ASSEMBLY PTFE A103186 PUMP HEAD PURE PVDF M102222 INTAKE TUBE ASSEMBLY 27” PURE POLYPROPYLENE M102221-1 40”... - Page 12 Service 1-800-888-3743 P/N 108100 REV. 7, 3/27/2020...
