MOD-5178/5179
Thank you for purchasing the MODWAY BED！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Headboard
3
Side Rail
5
Single Slat
Customer Service 908-368-1025︱www.modwayfurniture.com

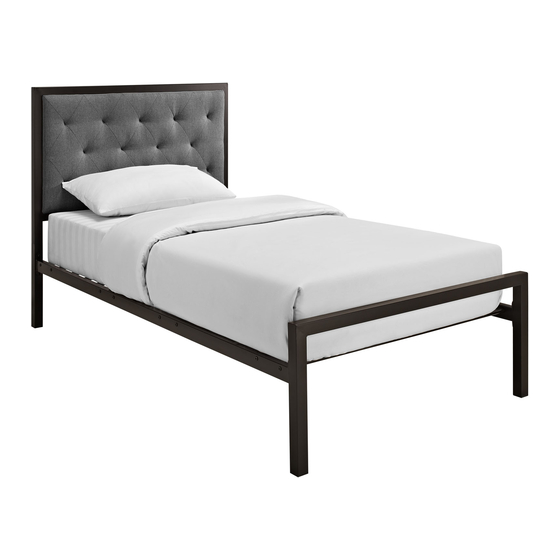

TWIN BED
x1
x2
x8
Hardware:
A
B
C
D
2
Footboard
4
Double Slat
6
Low Post
Bolt M6x20mm
x28
Flat Washer
x4
Rubber Insert
x16
Allen Wrench
x1
x1
x4
x2
Page 1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway MOD-5178
Summary of Contents for modway MOD-5178
- Page 1 MOD-5178/5179 TWIN BED Thank you for purchasing the MODWAY BED！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 MOD-5178/5179 TWIN BED STEP 1: Insert Low Post (6) into Headboard (1) as shown. Attach them by using Flat Washer (B) and Bolt (A) from the holes on the back of Low Post (6) and Headboard (1). Tighten with Allen Wrench (D).
- Page 3 MOD-5178/5179 TWIN BED STEP 3: Screw Bolts (A) into the bottom holes on the assembled Headboard (1&6) & Footboard (2) by hand . Leaving 8~10mm space of the thread of Bolts (A) as shown for inserting the notch of assembled Side Rails (3&4&5).
