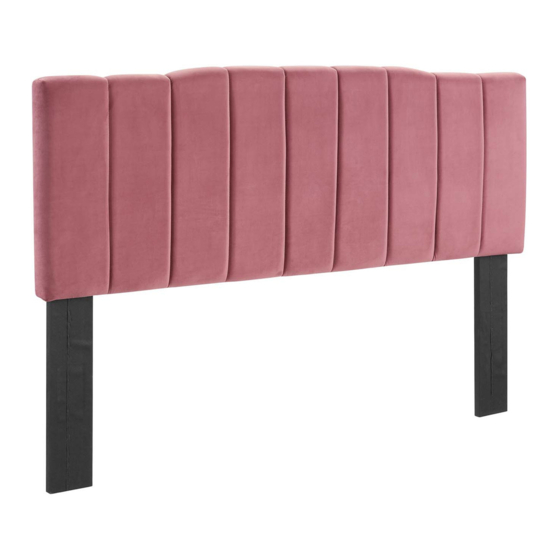

MOD-6182 / MOD-6183 / MOD-6185 / MOD-6186 HEADBOARD
Thank you for purchasing the MODWAY HEADBOARD!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Components:
1. Headboard
Customer Service 609-256-9000︱www.modway.com
x1
Hardware:
A.
Bolt M8x45mm
Allen Wrench
B.
x4
x1
2. Low post
x2
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for modway Camilla MOD-6182
Summary of Contents for modway Camilla MOD-6182
- Page 1 MOD-6182 / MOD-6183 / MOD-6185 / MOD-6186 HEADBOARD Thank you for purchasing the MODWAY HEADBOARD! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
- Page 2 1. Attach 2 pieces of Low Posts (2) to the Headboard (1) by using 4 pieces of Bolts (A) as shown. 2. Use Allen Wrench (B) to tighten all Bolts (A) clockwise as shown. Customer Service 609-256-9000︱www.modway.com Page 2 of 6...
- Page 3 ASSEMBLY INSTRUCTIONS OPTION 1 Option 1 Hardware: Bolt M6x45mm Bolt M6x65mm Flat Washer M6 Spring Washer M6 Nut M6 Allen Wrench Spanner Wrench Components: 1. Headboard 2. Bed frame ( Style may vary ) Customer Service 609-256-9000︱www.modway.com Page 3 of 6...
- Page 4 Carefully position the assembled bed to the desired location by four adults. Assembly is completed. The bed is ready to use now! NOTE: Hardware may loosen over time. Periodically check that all connections are tight. Customer Service 609-256-9000︱www.modway.com Page 4 of 6...
- Page 5 MOD-6182 / MOD-6183 / MOD-6185 / MOD-6186 HEADBOARD ASSEMBLY INSTRUCTIONS OPTION 2 Note: This is assembly instruction for Headboard connect to MODWAY Bed Frame Option 2 Hardware: Bolt M6x45mm Bolt M6x65mm Flat Washer M6 Spring Washer M6 Allen Wrench Components: 1.
- Page 6 Carefully position the assembled bed to the desired location by four adults. Assembly is completed. The bed is ready to use now! NOTE: Hardware may loosen over time. Periodically check that all connections are tight. Customer Service 609-256-9000︱www.modway.com Page 6 of 6...
