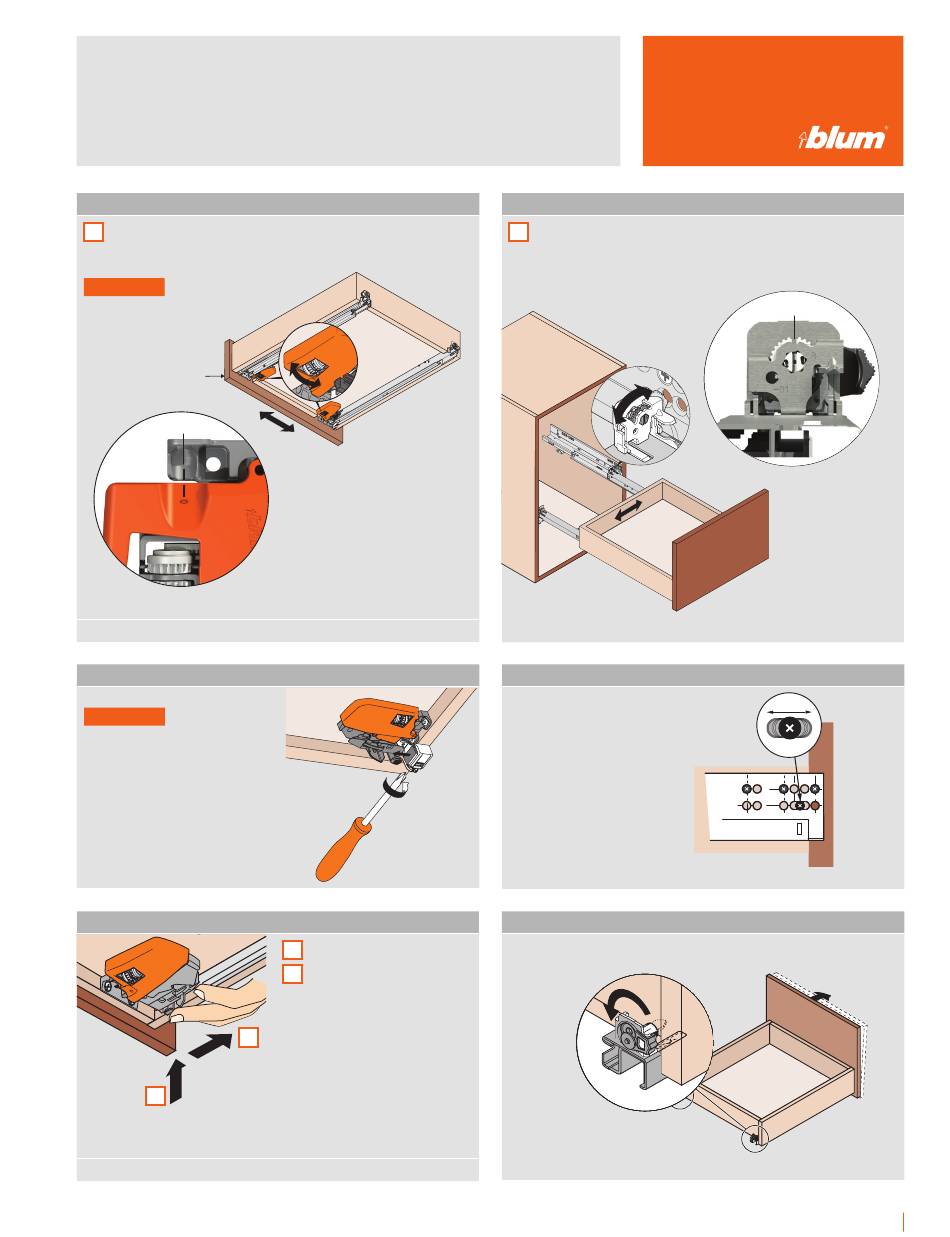

BLUM SERVO DRIVE Installation Instructions Manual page 7

TANDEM plus BLUMOTION Adjustments
New side adjustment
1
Rotate side adjustment left or right equally on both locking devices.
Drawer front moves in the same direction as rotation.
with side adjustment
T51.1901.xx
drawer
front
R
0
Maximum 1.5 (1/16") to left or right (tool-free)
NOTE: Side adjustment not available on T51.x8xx locking devices
New depth adjustable locking device
Locking device
T51.1901.PS
with side, height and depth
adjustment
Turning the adjustment screw
allows for up to 2.5 (3/32") out
adjustment
Height adjustment
2
1
Maximum 3 (1/8") rise of drawer front (tool-free)
Height adjustment available on all TANDEM locking devices
NOTE:
R
L
L
1
Press up on adjustment tab
2
Push towards back of drawer
SERVO-DRIVE
New rear side adjustment
2
After front side adjustment is made with the locking devices,
rotate the rear side adjustment left or right to re-align the back
of the drawer box with the front. Drawer back moves in the same
direction as rotation.
R
L
R
L
Maximum 1.5 (1/16") to left or right (tool-free)
New depth adjustment on runner
TANDEM 563 and 569 runners
feature elongated holes that allow
± 4.5 (3/16") depth adjustment
Tilt adjustment
Rotate the tilt adjustment lever on the rear of each runner to tilt the
top of the drawer front forward
Maximum 5 (3/16") rise of drawer back (tool-free)
ST-CSDOC-68 Rev Feb 2015
Dimensions in millimeters (inch equivalents as noted)
