BLUM AVENTOS HS Installation Manual
Servo-drive for aventos
Hide thumbs
Also See for AVENTOS HS:
- Manual (2 pages) ,
- Original installation instructions (24 pages) ,
- Cleaning and maintenance manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for BLUM AVENTOS HS
Summary of Contents for BLUM AVENTOS HS

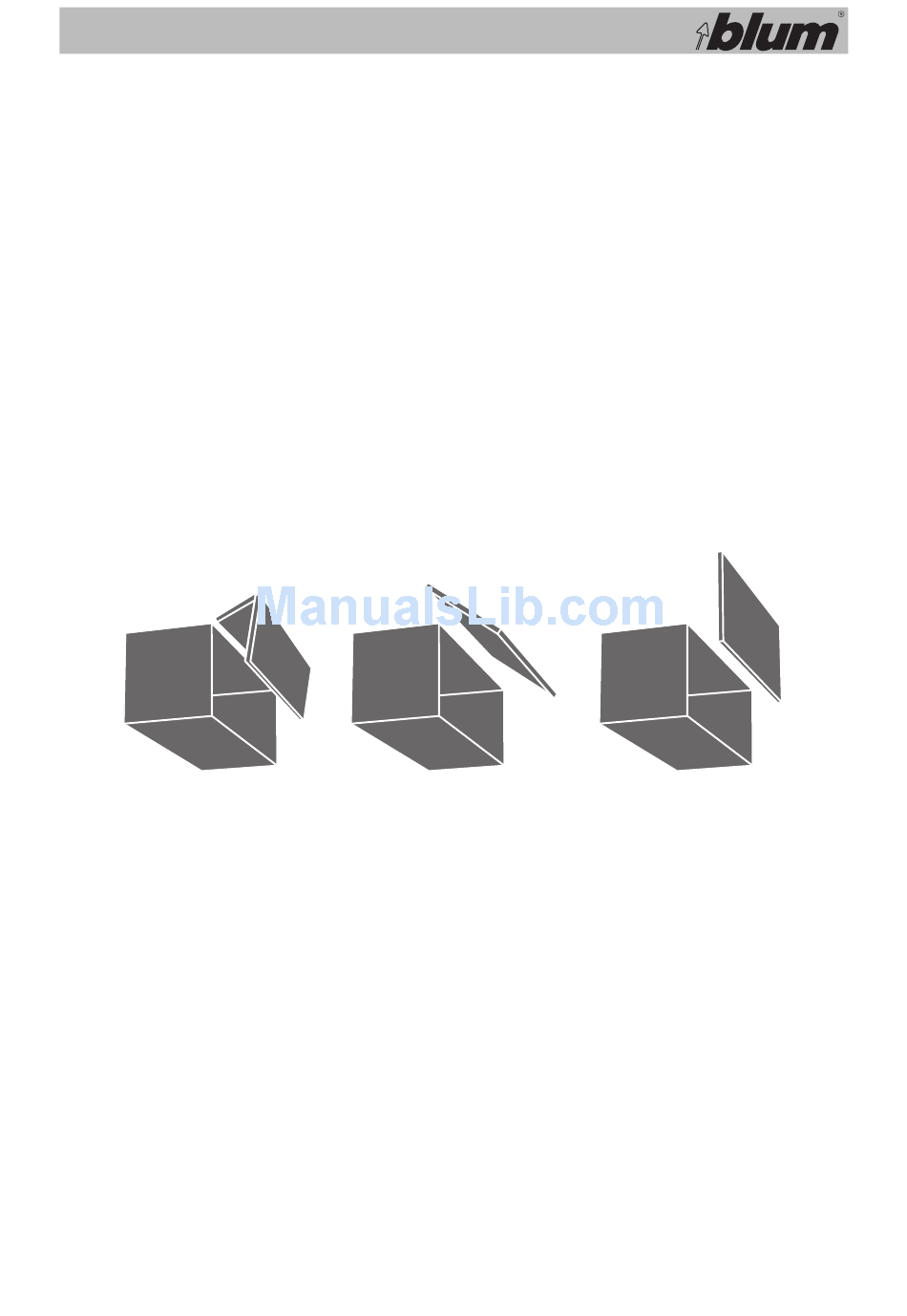

- Page 1 SERVO-DRIVE for AVENTOS Installation leaflet – Original AVENTOS HF AVENTOS HS AVENTOS HL...
- Page 2 7 Disposal About these instructions Thank you for your purchase. SERVO-DRIVE for AVENTOS from Julius Blum GmbH is a high-quality product that simplifies everyday kitchen tasks. To better enjoy the comfort and safety of SERVO-DRIVE for AVENTOS, please note the following: ⇒...
-
Page 3: Safety
SERVO-DRIVE for AVENTOS complies with current safety standards. Nevertheless, there are certain risk factors if the information in this instruction leaflet is not followed. Please be aware that Julius Blum GmbH is not responsible for incidental or consequential damages that may arise due to non-compliance with this instruction leaflet. -
Page 4: Intended Use
Children could choke on the Blum switch battery. DANGER ⇒ Make sure that children do not open the Blum switch as they could choke on parts or the battery from the Blum switch. ⇒ To ensure that lift systems cannot be activated unintentionally, we recom- mend connecting the Blum transformer to a switched outlet. -
Page 5: Wall Cabinet Care And Cleaning
⇒ The drive unit, Blum transformer and Blum switch should only be cleaned with a moist cloth. The Blum transformer can be damaged if covered by towels or other items due to overheating. ⇒ Do not cover the Blum transformer with towels or other items. -
Page 6: Description
SERVO-DRIVE for AVENTOS supports the opening and closing of lift systems in furniture. Electrical motion support system The Blum switch (page 6, item 4) triggers the automatic opening and closing ac- tion of SERVO-DRIVE for AVENTOS. ⇒ Press on the front ⇒... - Page 7 The following are required to ensure the error-free functioning of SERVO-DRIVE for AVENTOS: • Blum spacing bumpers (page 6, item 5) must be attached to the front to main- tain the required distance between the lift system and the cabinet. •...
- Page 8 Close Blum switch Type: CR2032 Please note proper pole connections (+/-) CAUTION ⇒ The Blum switch battery must not be recharged or thrown into fire. ⇒ If the battery is inserted incorrectly, the Blum switch battery display NOTICE flashes red.
- Page 9 (LED) Serial tag Function The Blum transformer (page 6, item 3) provides power to the drive unit. Blum transformer function can be checked via the operating mode display (LED). The following serial tag can be found on the Blum transformer:...
-
Page 10: Problems
Switched outlet is turned off ⇒ Turn on switched outlet. AVENTOS does not Blum transformer (page 6, item 3) ⇒ Plug in the Blum transformer to the outlet. work for all lift systems is not plugged in. when pressing on the Power outage ⇒... -
Page 11: Technical Data
Power consumption in standby mode: 0.6W (front closed) Operating temperature: 0 to +40°C Protection category: IP20 Should only be used in dry, enclosed rooms Blum switch Frequency: 2.4GHz Transmission method: Bidirectional, via a coded wire Range: typically 10m (depending on material... - Page 12 Julius Blum GmbH Furniture Fittings Mfg. 6973 Höchst, Austria Tel.: +43 5578 705-0 Fax: +43 5578 705-44 E-mail: info@blum.com www.blum.com Copyright Blum · Subject to technical modifications and changes to the range without notice. BAU0013920777 IDX: 00 IDNR: 898.034.0 BA-133/0EN 08.09...
