BLUM SERVO-DRIVE Instruction Leaflet

Hide thumbs Also See for SERVO-DRIVE:

Advertisement

Quick Links

by Blum
by Blum
SERVO-DRIVE
Instruction leaflet
www.blum.com
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the SERVO-DRIVE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLUM SERVO-DRIVE

Summary of Contents for BLUM SERVO-DRIVE

  • Page 1 Blum by Blum SERVO-DRIVE Instruction leaflet www.blum.com...

  • Page 2: Table Of Contents

    ➢ Please retain the instruction leaflet for the service life of SERVO-DRIVE. ➢ Please pass on this instruction leaflet to each subsequent owner or user of SERVO-DRIVE. ➢ Instructions are also available on our website. Please search on www.blum.com for "SERVO-DRIVE instruction leaflet"...

  • Page 3: Warning Signs And Danger Symbols

    To identify terminals that must not be connected to the mains voltage. Intended use SERVO-DRIVE supports the opening and closing of lift systems, the opening of drawers and/or refrigerators and freezers or dishwashers, and may only be used under the following conditions: •...

  • Page 4: Safety

    Safety information • The mains plug and the Blum transformer must be easily accessible. • Neither the Blum transformer nor any cabling should come into con- tact with moving parts.
  • Page 5 Blum transformer. • Only qualified persons may install or replace Blum components, modify the position of the Blum transformer or modify the cabling. • Please make sure that the Blum distance bumper is attached to the front. NOTE To ensure that lift systems, drawers, refrigerators or freezers and dishwashers cannot be activated unintentionally, we recommend connecting the Blum transformer to a switched outlet.
  • Page 6 May pose a choking hazard to children when playing with the SERVO-DRIVE switch. Children could choke on the SERVO-DRIVE switch battery. ➢ Make sure that children do not open the SERVO-DRIVE switch as they could choke on parts or the battery from the SERVO-DRIVE switch if they swallow them.
  • Page 7 ➢ Any cabling damage should be immediately repaired by a qualified specialist. ➢ Do not cover the Blum transformer with cloths or other items – danger of overheating. ➢ Examine the appliance frequently for signs of wear or damage. If...
  • Page 12 Electrical and electronic appliances must not be disposed of with household waste at the end of their service life. Ask your local authority for information on how to proceed. Blum electrical and electronic appliances meet the requirements of the WEEE Directive 2012/19/EU.

  • Page 14: Troubleshooting: Servo-Drive For Legrabox/Tandembox/Movento/Tandem

    SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS SERVO-DRIVE for AVENTOS supports the opening and closing of lift systems in furniture. Orientation diagram Lift mechanism, drive unit and cover cap Lever Blum transformer, 24 Watts Blum plug-in transformer, 12 Watts SERVO-DRIVE switch...
  • Page 15 SERVO-DRIVE flex for refrigerators and freezers SERVO-DRIVE flex allows handle-less refrigerators and freezers to be opened electromechanically by pressing the front. Orientation diagram Drive unit Catch plate Mounting plate Front fixing Blum distance bumper Assembly jig Front cover Chipboard screws...
  • Page 16 SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS Electrical motion support system The SERVO-DRIVE switch triggers the automatic opening and closing action of SERVO-DRIVE for AVENTOS. Press on the front ➢ The lift system opens automatically Press on the SERVO-DRIVE switch ➢ The lift system closes automatically...
  • Page 17 Manual operation The lift system can be opened or closed manually at any time without damaging SERVO-DRIVE for AVENTOS. ➢ Manual opening of the lift system by moving it upwards ➢ Manual closing of the lift system by moving it downwards...
  • Page 18 The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE for AVENTOS: • Blum distance bumpers must be attached to the front to maintain the required distance between the lift system and the cabinet. • No items should be placed between the front and the cabinet.
  • Page 19 Insert new battery (type CR2032), ob- serving the correct pole connections Close battery holder If the battery is inserted incorrectly, the SERVO-DRIVE switch battery display will flash red. NOTE The SERVO-DRIVE switch battery must not be recharged or discarded into fire.

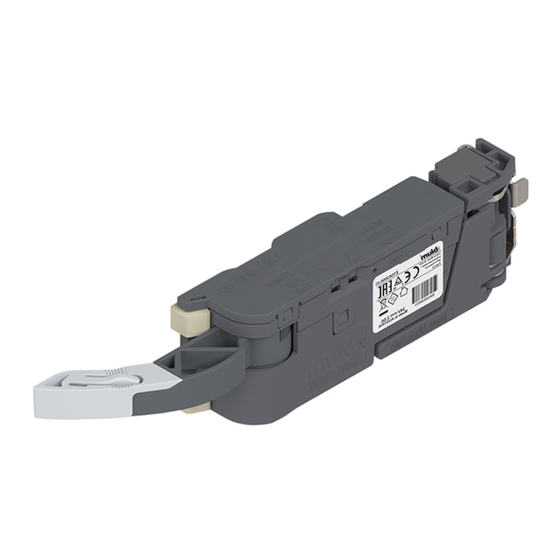

  • Page 20 SERVO-DRIVE for LEGRABOX/TANDEMBOX/MOVENTO/ TANDEM Electrical motion support system When the front and/or handle of the drawer (A) is pulled or pressed, the eject lever of the drive unit (B) swivels forward and opens the pull-out unit a short distance. Lean protection feature The electrical opening support function is only triggered by a brief touch or pull.

  • Page 21: Troubleshooting: Servo-Drive Flex

    • No items can be clamped between the pull-out unit and the cabinet back and/or SERVO-DRIVE. Blum transformers Blum transformers provide power to the drive unit. Blum transformer function can be checked via the operating mode display (LED). 24W: 12W:...
  • Page 22 SERVO-DRIVE flex Electrical motion support system Pressing the handle-less front will trigger the electromechanical opening of SERVO-DRIVE flex. 1) Press (do not pull) the front ➢ The door (refrigerator or dishwasher) will open slightly for 2.5 sec 2) User uses opening to grip door ➢...
  • Page 24 Problems Possible cause Remedy Battery display on SERVO-DRIVE SERVO-DRIVE switch battery ➢ Replace the battery. switch flashes red. is losing power. Battery display lights up red Battery has been inserted ➢ Insert the battery correctly. incorrectly. SERVO-DRIVE for AVENTOS The front is not balanced or ➢...
  • Page 25 Problems Possible cause Remedy SERVO-DRIVE for The Blum transformer is not ➢ Plug in the Blum transformer LEGRABOX/TANDEMBOX/ connected to the power outlet. to the outlet. MOVENTO/TANDEM will not work on any drawers when The power supply has been ➢ Check the circuit breaker/ pushing or pulling.
  • Page 26 ➢ Ensure dimensions corre- spond to assembly instructions • Unit does not respond to activation Blum distance bumper pad not ➢ Install Blum distance inserted or positioned incorrectly bumper pad • Unit responds slowly to ➢ Correct positioning activation •...
  • Page 27 Problems Possible cause Remedy Door does not close Catch plate is not installed ➢ Install catch plate Catch plate is positioned incor- ➢ Reposition the catch plate rectly Dishwasher does not close Dishwasher locking mechanism ➢ Push front until it closes has become stiff (depending on (this is NOT a completely...

  • Page 28: Technical Data

    Technical data The appliances must only be used in dry, closed rooms. All SERVO-DRIVE appliances are of protec- tion class III and must only be supplied with safety extra-low voltage (SELV). They are only to be used with the transformers provided by Blum.
  • Page 29 Maximum radio-frequency power: ...................4 dBm / 2.5 mW Maximum altitude: ............. 2000 m (at an ambient temperature of 25°C) SERVO-DRIVE drive unit for LEGRABOX / TANDEMBOX / MOVENTO / TANDEM Supply voltage: ........................24.0 V d.c. Rated current: ..........................2.0 A Power consumption in standby mode: ..................
  • Page 30 SERVO-DRIVE flex drive unit Supply voltage: ........................24.0 V d.c. Rated current: ..........................2.0 A Power consumption in standby mode (without wireless receiver): ........... <0.12 W Power consumption in standby mode (with wireless receiver): ..........<0.21 W Ambient temperature: ............0 to +50°C / 5 to 80% r.H. non condensing Protection category: ........................
  • Page 32 Simplified EU declaration of conformity Julius Blum GmbH hereby declares that all electrical and electronic article types of Julius Blum GmbH conform to the Directive 2011/65/EU. Julius Blum GmbH hereby declares that the machine types Z10A3000 and Z10C5000 conform to the Directive 2006/42/EC and Directive 2014/30/EU.

  • Page 33: Spare Parts Form

    Spare parts form Name of kitchen distributor/cabinet maker: Address: In order to receive your SERVO-DRIVE spare parts as quickly as possible, your SERVO-DRIVE and/or kitchen distributor requires the following data: Name of kitchen owner: Address: Commission number: Fault description: Part number and batch number of the defective SERVO-DRIVE component:...
  • Page 34 Julius Blum GmbH Furniture Fittings Mfg. 6973 Höchst, Austria Tel.: +43 5578 705-0 Fax: +43 5578 705-44 E-mail: info@blum.com www.blum.com Our sites in Austria, Poland and China are certified to the international standards mentioned below. Our site in the USA is certified to ISO 9001.
