- Page 1 SERVO-DRIVE Installation instructions (including TANDEM plus BLUMOTION adjustments) ST-CSDOC-68 Rev Feb 2015...
-
Page 2: Servo-Drive
Squeeze orange handles on locking devices and pull drawer straight out and up. Install SERVO-DRIVE distance bumper NOTE: Blum distance bumpers provide a travel of 3 mm (1/8") ST-CSDOC-68 Rev Feb 2015 © 2015 Blum, Inc. Subject to technical modifications without notice... - Page 3 Single: only one drive unit moves (standard setting) Press release button Selector switch power Pull Half: use for very small and/or light drawers Full: standard settings for most applications ST-CSDOC-68 Rev Feb 2015 Dimensions in millimeters (inch equivalents as noted) © 2015 Blum, Inc.
- Page 4 Insert locating pins into pre-bored holes Secure with wood screws Connect power supply Connect cable with INSERTA cable connectors and cap off with cable end protectors. ST-CSDOC-68 Rev Feb 2015 © 2015 Blum, Inc. Subject to technical modifications without notice...
- Page 5 Insert cable for power into open slot Slide cable end protector over exposed cable NOTE: Ensure piercing pins are not damaged Plug unit in Plug power supply into switched GFCI outlet. ST-CSDOC-68 Rev Feb 2015 Dimensions in millimeters (inch equivalents as noted) © 2015 Blum, Inc.
- Page 6 SERVO-DRIVE Problems Possible cause Remedy SERVO-DRIVE unit will not Blum plug-in power supply is Plug the power supply into ▀ work by pulling or pushing. not connected to the switched the switched GFCI outlet GFCI outlet. Power supply interrupted. Check the circuit ▀...

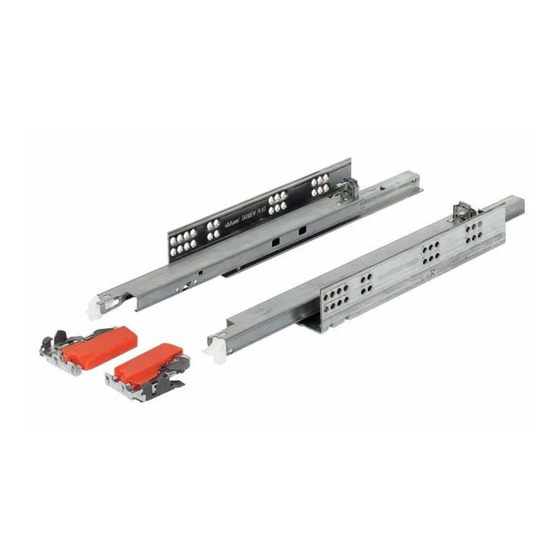

- Page 7 Maximum 3 (1/8") rise of drawer front (tool-free) Maximum 5 (3/16") rise of drawer back (tool-free) Height adjustment available on all TANDEM locking devices NOTE: ST-CSDOC-68 Rev Feb 2015 Dimensions in millimeters (inch equivalents as noted) © 2015 Blum, Inc.
