Antaro/Tandem drawer box fitting instructions ‐ Kitchen units only
Note: These measurement do not apply to bedroom units

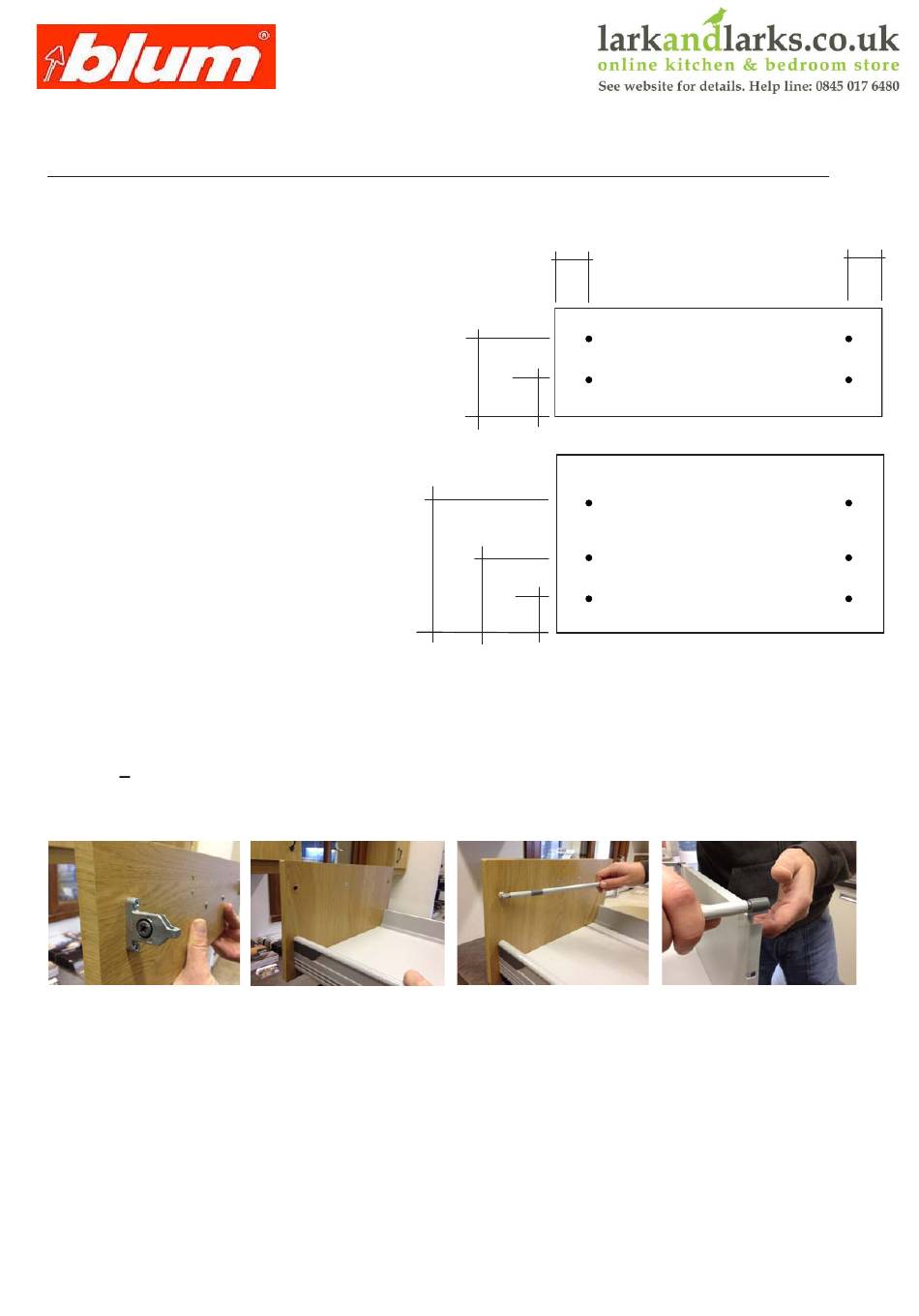

Step 1 ‐Drilling drawer fronts
Drill 1 or 2mm pilot holes into the
reverse of your drawer fronts, as
shown in the diagrams on the right.
These holes should be
approximately 13mm deep.
Please note: Non‐standard sized draw fronts may be drilled in different locations.
Step 2
Fitting drawer front brackets and rods
Once you have drilled your pilot holes you can fix the brackets as shown in the images below.
Pan drawers will need a further hole drilling to take the support rods. Using a 10mm drill bit,
drill another hole a maximum of 13mm deep.
Insert the end of the support rod into the hole and straighten it out to expand the rod end in place.
You can then snap the other end of the rod into the back of the drawer as shown above.
The drawer front can now be adjusted by twisted the rods in either direction.
100
mm
68
mm
Support
rod
Drilling
Position
100
228mm
68
mm
mm
32
mm
Standard height Drawers
Pan Drawers
32
mm
Advertisement
Table of Contents
Related Manuals for BLUM Antaro
Summary of Contents for BLUM Antaro
- Page 1 Antaro/Tandem drawer box fitting instructions ‐ Kitchen units only Note: These measurement do not apply to bedroom units Step 1 ‐Drilling drawer fronts Drill 1 or 2mm pilot holes into the reverse of your drawer fronts, as Standard height Drawers shown in the diagrams on the right. These holes should be approximately 13mm deep. Support Pan Drawers Drilling Position 228mm Please note: Non‐standard sized draw fronts may be drilled in different locations. Step 2 Fitting drawer front brackets and rods Once you have drilled your pilot holes you can fix the brackets as shown in the images below. Pan drawers will need a further hole drilling to take the support rods. Using a 10mm drill bit, drill another hole a maximum of 13mm deep. Insert the end of the support rod into the hole and straighten it out to expand the rod end in place. You can then snap the other end of the rod into the back of the drawer as shown above. The drawer front can now be adjusted by twisted the rods in either direction.
- Page 2 ‐ ‐ Now you have the brackets fixed to the drawer fronts you can connect them to the drawer boxes. Simply line up the drawer brackets with the drawer box as shown below and push to clip in. You can also remove the drawer front if needs be by inserting a Phillips screwdriver into the release mechanism and turning towards the back of the drawer box as shown below. Step 4 ‐Removing drawer boxes from the runners ‐ ‐ Fully extend the drawer runners. Lift the front of the drawer box and the drawer box will click and detach from runners. See images below. Step 5 ‐Fitting drawer boxes onto the runners ‐ ‐ Fully extend the drawer runners. Place the drawer box onto the runners as shown below. Slide the drawer box back square on the runners and the box will click into place. Step 6 ‐Fitting cover caps ‐ ‐ Step 7‐Adjusting Drawer Front Place and clip back on as shown A ‐Horizontal Adjustment ‐ ‐ below. To remove use a flat head B ‐Drawer front removal ‐ ‐ screwdriver and gently remove. C ‐Vertical Adjustment ‐ ‐ For more information please visit the Blum website at www.blum.com ADBF-2015-01...
