blum SERVO-DRIVE - Indoor Furnishing Manual

Warning signs and danger symbols

WARNING indicates a danger that could lead to death or serious injury if not heeded.
NOTE
NOTE indicates information that should be followed.

To identify an appliance intended only for indoor use.

To identify terminals that must not be connected to the mains voltage.

Intended use

SERVO-DRIVE supports the opening and closing of lift systems, the opening of drawers and/or refrigerators and freezers or dishwashers, and may only be used under the following conditions:

• In dry, enclosed rooms.
• In combination with AVENTOS lift systems and/or pull-out systems from Julius Blum GmbH within permitted technical specifications.
• In combination with a SERVO-DRIVE power supply unit.
• The furniture must be firmly secured to the wall so that it cannot topple over.

Technical data specifications can be found in the Blum sales documentation. For more information, please see your distributor. Julius Blum GmbH is not liable for any other use.

SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS

SERVO-DRIVE for AVENTOS supports the opening and closing of lift systems in furniture.

Reference diagram

1. Lift mechanism, drive unit and cover cap
2. Lever arm
3. 1. SERVO-DRIVE power supply unit
   2. SERVO-DRIVE plug-in power supply unit
4. SERVO-DRIVE switch
5. Blum distance bumper
6. Cabinet
7. Front/Lift system

Electrical motion support system

The SERVO-DRIVE switch triggers the automatic opening and closing action of SERVO-DRIVE for AVENTOS.
Press on the front

• The lift system opens automatically

Press on the SERVO-DRIVE switch

• The lift system closes automatically

Manual operation

The lift system can be opened or closed manually at any time without damaging SERVO-DRIVE for AVENTOS.

• Manual opening of the lift system by moving it upwards

• Manual closing of the lift system by moving it downwards


Collision detection

The opening and closing action is interrupted automatically via the integrated collision detection feature when the front hits a body part or other object.

Lean protection feature

SERVO-DRIVE for AVENTOS is only triggered by a brief touch. Leaning on the lift system will not open it.

SERVO-DRIVE switch

The SERVO-DRIVE switch is battery-operated (CR2032).
Only use batteries from reputable manufacturers.

1. Battery display (LED)
2. Connect (LED)

Replacing the battery

When the battery power begins to weaken, the battery display (LED) will begin to flash red.

1. Open the SERVO-DRIVE switch and remove the battery holder
2. Remove the battery
3. Insert new battery (type CR2032), observing the correct pole connections
4. Close battery holder

If the battery is inserted incorrectly, the SERVO-DRIVE switch battery display will lights up red.
NOTE
The SERVO-DRIVE switch battery must not be recharged or discarded into fire.

Power failure

If the power supply is interrupted during the opening or closing process, the SERVO-DRIVE for AVENTOS lift system will remain in that position. The front can be closed manually, or when power is restored; simply touch the switch to re-activate SERVO-DRIVE function.
The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE for AVENTOS:

• Blum distance bumpers must be attached to the front to maintain the required distance between the lift system and the cabinet.
• No items should be placed between the front and the cabinet.

NOTE

• Improper use may cause SERVO-DRIVE for AVENTOS to wear prematurely!
• Do not press or pull with force against the movement direction when opening or closing the lift system.
• Never remove the front. Front removal may only be carried out by qualified personnel. See also the safety section at the first pages of this leaflet.

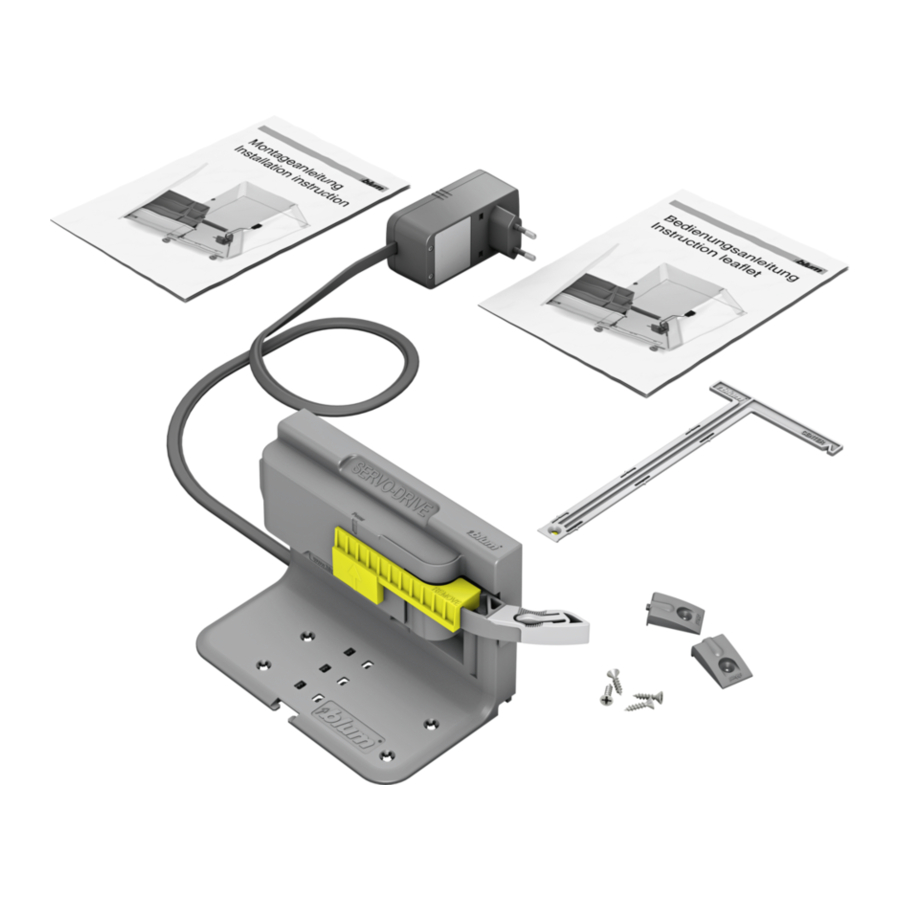

SERVO-DRIVE flex

SERVO-DRIVE flex allows handle-less refrigerators and freezers to be opened electromechanically by pressing the front.

Orientation diagrams

Orientation diagram

1. Drive unit
2. Catch plate
3. Mounting plate
4. Front fixing
5. Blum distance bumper
6. Assembly jig
7. Front cover
8. Chipboard screws

SERVO-DRIVE flex allows handle-less dishwashers to be opened electromechanically by pressing the front.

Orientation diagram

1. Drive unit
2. Catch plate
3. Mounting plate
4. Front fixing
5. Assembly jig
6. Front cover
7. Chipboard screws

Electrical motion support system

Pressing the handle-less front will trigger the electromechanical opening of SERVO-DRIVE flex.

1. Press (do not pull) the front

   • The door (refrigerator or dishwasher) will open slightly for 2.5 sec
2. 1. User utilises opening to grip door
      • Continues opening process
   2. User does not touch door
      • Door closes again

The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE flex:

• Blum distance bumpers must be attached to the front to ensure the required triggering signal (2 mm) between the pull-out unit and the cabinet.
• No items should be positioned between the pull-out element and the cabinet back and/or SERVO-DRIVE.

SERVO-DRIVE for LEGRABOX/MERIVOBOX/TANDEMBOX/MOVENTO/TANDEM

SERVO-DRIVE supports the opening of drawers.

Reference diagram

1. Drive unit
2. Eject lever
3. SERVO-DRIVE power supply unit
4. Blum distance bumper

Electrical motion support system

When the front and/or handle of the drawer (A) is pulled or pressed, the eject lever of the drive unit (B) swivels forward and opens the pull-out unit a short distance.

Lean protection feature

The electromechanical opening support function is only triggered by a brief touch or pull. Leaning on the pull-out unit, for example, will not open it.

The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE:

• Blum distance bumpers must be attached to the front to ensure the required triggering signal (2 mm) between the pull-out unit and the cabinet.
• No items can be clamped between the pull-out unit and the cabinet back and/or SERVO-DRIVE.

NOTE

• Improper use may cause SERVO-DRIVE for pull-out systems to wear prematurely!
• Do not press or pull with force against the movement direction when opening or closing the drawer.

Problems

www.blum.com/sd/troubleshooting

Technical data

The appliances must only be used in dry, closed rooms. All SERVO-DRIVE drive units, the COMBOX and the vibration sensor are of protection class III and must only be supplied with safety extra-low voltage (SELV). They are only to be used with the power supply units provided by Blum.

SERVO-DRIVE power supply unit Z10NE030

SERVO-DRIVE power supply unit Z10NE040

SERVO-DRIVE plug-in power supply unit Z10NA300

SERVO-DRIVE plug-in power supply unit Z10NA40x*

* x = B, E, H, K, N, R, S, U, Z

SERVO-DRIVE drive unit for AVENTOS 21FA001, 21SA001, 21LA001, 21KA001

SERVO-DRIVE drive unit for AVENTOS top 23.A001, 23KA001

SERVO-DRIVE drive unit for LEGRABOX/MERIVOBOX/TANDEMBOX/MOVENTO/TANDEM Z10A3000.03, Z10A3000.50

SERVO-DRIVE flex drive unit Z10C5000

SERVO-DRIVE switch 23P5020

Wireless receiver Z10C5007

Quake sensor Z10ZE000

COMBOX Z10ZC000

Connecting nodes Z10V1000.01

Safety

Principle

SERVO-DRIVE complies with current safety standards. Nevertheless, there will still be certain residual risks if the information contained in this instruction leaflet is not observed. Please be aware that Julius Blum GmbH is not responsible for incidental or consequential damages that may arise due to non-compliance with this instruction leaflet.

Safety information

• The mains plug and the SERVO-DRIVE power supply unit must be easily accessible.
• Neither the SERVO-DRIVE power supply unit nor any cabling should come into contact with moving parts.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Reaching into the area around the lift system lever during the opening and closing motion can cause injury.
• The overall length of the cable for SERVO-DRIVE plug-in power supply units Z10NA300 and Z10NA40x* must not exceed two metres.
• SERVO-DRIVE power supply unit Z10NE030 must be connected to an outlet with an earth connection.
• SERVO-DRIVE power supply unit Z10NE030 incorporates an earth connection for functional purposes only.

* x = B, E, H, K, N, R, S, U, Z

Structural changes and spare parts

Structural changes and spare parts not approved by the manufacturer have an adverse effect on the safety and functionality of SERVO-DRIVE and therefore are not allowed.

• Only use original spare parts from Julius Blum GmbH
• SERVO-DRIVE components are the only devices that should be connected to the SERVO-DRIVE power supply unit.
• Only qualified specialists may install or replace SERVO-DRIVE components, modify the position of the SERVO-DRIVE power supply unit or modify the cabling.
• Please make sure that the Blum distance bumper is attached to the front.

NOTE
To ensure that lift systems, drawers, refrigerators or freezers and dishwashers cannot be activated unintentionally, we recommend connecting the SERVO-DRIVE power supply unit to a switched outlet.
For more information, please consult an electronics retailer.

SERVO-DRIVE power supply unit safety distance

NOTE
A safety distance of 30 mm must be maintained for air circulation; otherwise, there is a risk that the SERVO-DRIVE power supply unit could overheat.

• The dimensions in the drawing take into account the safety distance.


Children

Opening and closing lift systems may pose a risk of injury to children.
Persons, especially children, who are sitting or standing on work surfaces may be pushed from work surfaces or injured when opening and closing a lift system.
May pose a choking hazard to children when playing with the SERVO-DRIVE switch.
Children could choke on the SERVO-DRIVE switch battery.

• Make sure that children do not open the SERVO-DRIVE switch as they could choke on parts or the battery from the SERVO-DRIVE switch if they swallow them.
• Risk of explosion if the battery is replaced by an incorrect type
• Do not ingest battery, Chemical Burn Hazard
• This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Opening drawers may pose a risk of injury to children!

• Children should be properly supervised when in the room so that they do not play with the lift system.
• To ensure that SERVO-DRIVE is not triggered unintentionally, the switched outlet should be turned off.

Cabinet care and cleaning

Danger of death from electric shock!
There is a danger of electric shock if fluids penetrate the SERVO-DRIVE power supply unit.

• Before cleaning the front, turn off the switched outlet to which the SERVO-DRIVE power supply unit is connected.
• Before cleaning the SERVO-DRIVE components, unplug the SERVO-DRIVE power supply unit.
• Make sure that no water or aggressive cleaning materials come into contact with the drive unit, the SERVO-DRIVE power supply unit or the SERVO-DRIVE switch while cleaning the cabinet – use a moist cloth.
• Never open a SERVO-DRIVE power supply unit, drive unit or SERVO-DRIVE switch.
• Any cabling damage should be immediately corrected by a qualified specialist.
• Do not cover the SERVO-DRIVE power supply unit with cloths or other items – danger of overheating.
• Examine the appliance frequently for signs of wear or damage. If there are such signs or if the appliance has been misused or does not work, contact the supplier for further information

Danger of injury if the lever springs upward!
There is a danger of injury from the lever springing upwards during improper removal of the front including fittings.

• Never remove the front for cleaning.
• Front removal may only be carried out by qualified personnel according to the separate installation instructions.

SERVO-DRIVE power supply units
SERVO-DRIVE power supply units provide power to the drive unit. SERVO-DRIVE power supply unit function can be checked via the operating mode indicator (LED).

1. Power connection
2. Operating mode display (LED)
3. Serial tag

Blum partners worldwide can be found at:
www.blum.com/addresses
