BLUM SERVO DRIVE Installation Instructions Manual page 3

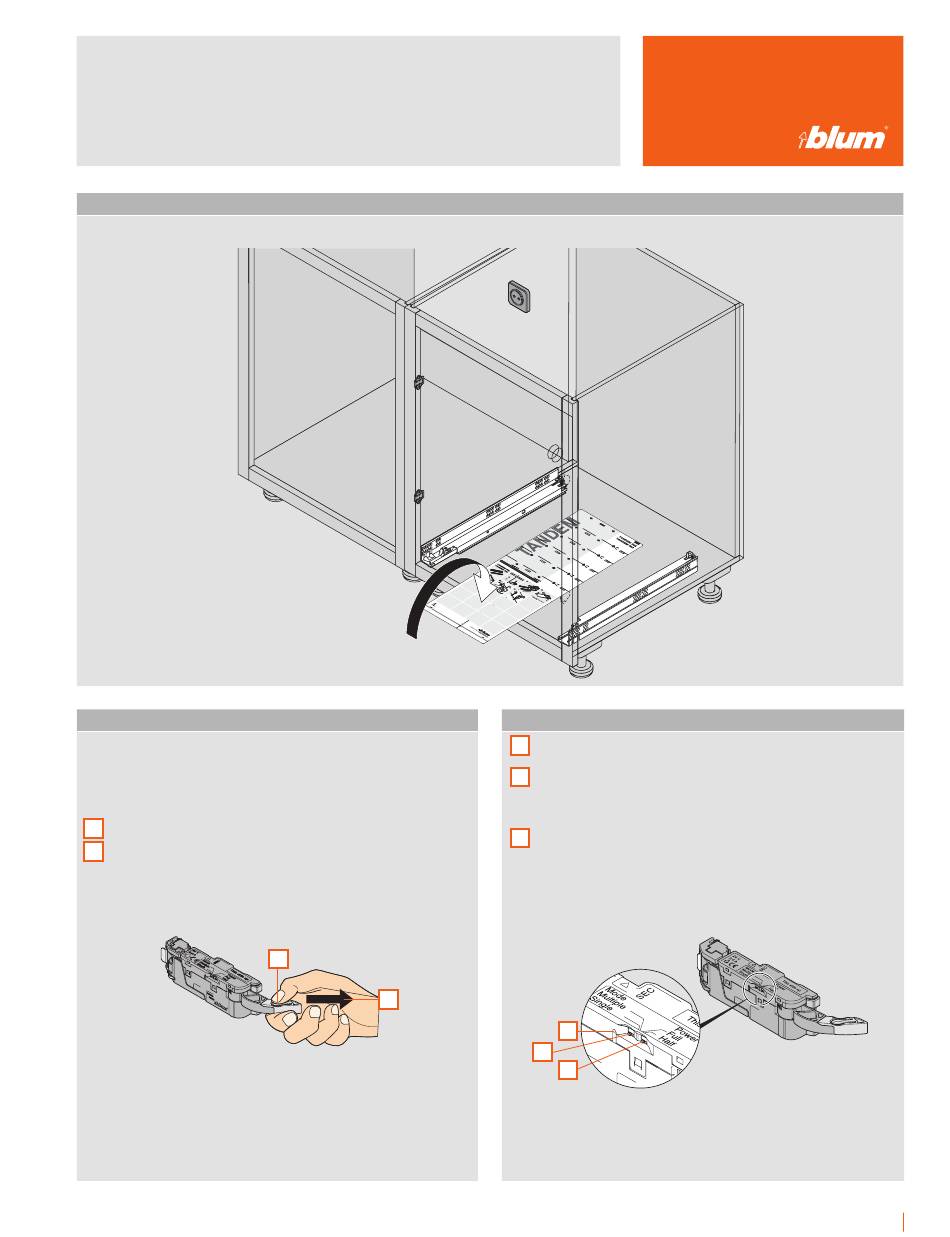

Using the template
Select correct template. Align and secure template and follow instructions to pre-bore for bottom bracket hole locations.
Lever arm extension
The drive unit comes with the lever arm extension pre-attached.
The lever arm extension must be removed for cabinet widths
of 305 (12") or less.
1
Press release button
2 Pull
1
2
SERVO-DRIVE
Drive unit adjustment
Operating mode display (LED)
1
Selector switch mode
2
Multiple: when set to "multiple" drive units move simultaneously
Single: only one drive unit moves (standard setting)
3 Selector switch power
Half: use for very small and/or light drawers
Full: standard settings for most applications
1
2
3
ST-CSDOC-68 Rev Feb 2015
Dimensions in millimeters (inch equivalents as noted)
3
