BLUM BLUMOTION Quick Start Manual

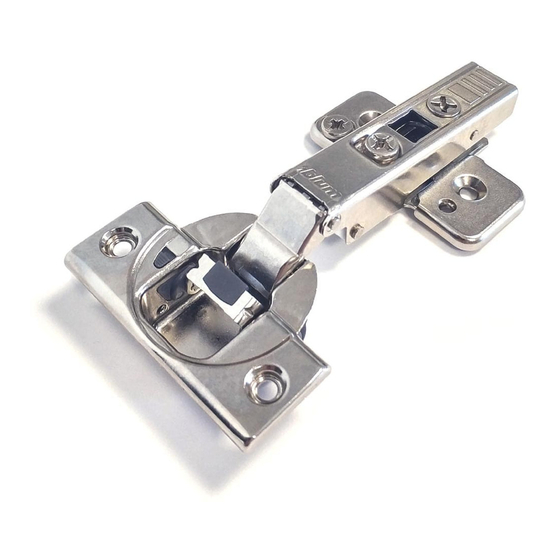

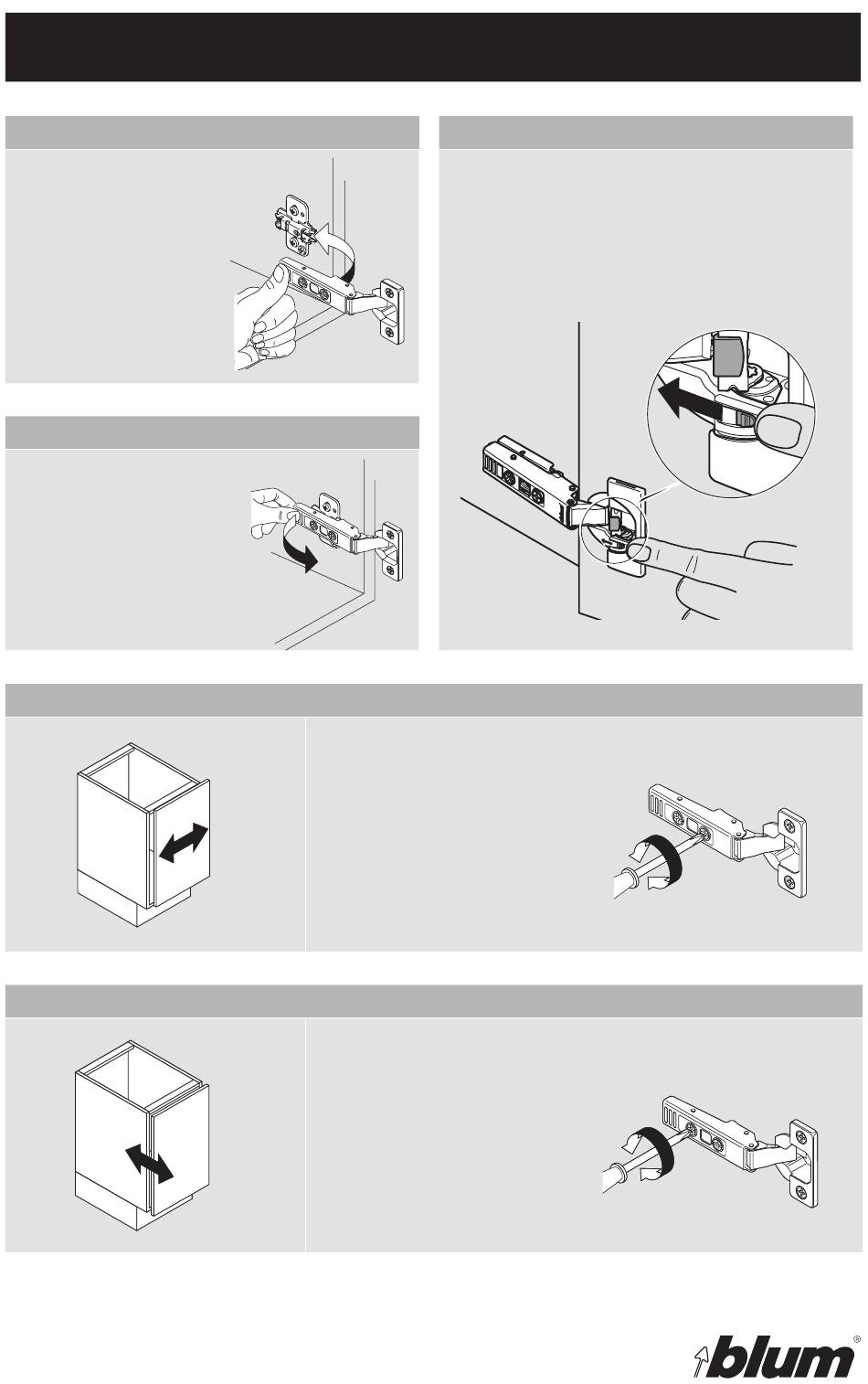

Euro hinge attachment and adjustment
Door installation
To install, place the hinge
on the mounting plate
and push the back
of the hinge arm down
with finger pressure.
The "click" sound
confirms a secure
attachment.
Door removal
Release the lever under the
hinge arm to remove.
Side adjustment
Depth adjustment
Technical specifications subject to change without notice.
LIT.HNG6200.10.10
Rotate the front screw to increase or decrease the door
overlay ( + /- 2 mm).
Rotate the rear spiral tech cam screw to adjust the door
position ( + 3/- 2 mm).
For CLIP hinges, loosen the rear
screws on all hinges, adjust and retighten.
© 2010 Printed in USA
CLIP top BLUMOTION deactivation
For small or light doors, the BLUMOTION can
be deactivated on one of the hinges. Door must
be closed once for the deactivation to be
complete. To reactivate, move switch back to
the original position.
