- Page 1 Blum SERVO-DRIVE Installation instructions www.blum.com...
-
Page 2: Table Of Contents
Troubleshooting ............................7 Info regarding the Machine Directive 2006/42/EC ................... 7 Disposal ..............................8 Simplified EU Declaration of Conformaty – Julius Blum GmbH .............. 9 SERVO-DRIVE overview drawing ......................10 AVENTOS function ...........................12 LEGRABOX / TANDEMBOX / MOVENTO / TANDEM function ..............12 SERVO-DRIVE für AVENTOSᆤAVENTOS HK top ..................13... - Page 3 Reset wireless ..........................29 Cover cap assembly.......................29ᆤ36 Replacing the SERVO-DRIVE switch battery ................29ᆤ36 SERVO-DRIVE for LEGRABOX / TANDEMBOX / MOVENTO / TANDEM – General information ... 38 Drive unit selector switch ......................38 Lever extension ..........................38 Trigger guidance .......................... 38 Synchronisation cable ........................
-
Page 4: Using The Installation Instructions
SERVO-DRIVE complies with current safety standards. Nevertheless, there are certain risk factors if these installation instruc- tions are not followed. Please be aware that Julius Blum GmbH is not responsible for incidental or consequential damages that may arise due to non-compliance with these installation instructions. - Page 5 • The outlet must be freely accessible. • Only 1 Blum transformer can be connected to each distribution cable. • Maintain safety distances to the Blum transformer listed in the in- stallation instructions. • Make sure that moisture cannot penetrate the Blum transformer and drive unit.
-
Page 6: Blum Transformer Safety Distance
WARNING Danger of electric shock ➢ Never open a Blum transformer. There is a danger of electric shock. ➢ Before starting repair or maintenance work, unplug the Blum transformer to disconnect the power. WARNING There is a danger of injury if the lever springs upward. -
Page 7: Structural Changes And Spare Parts
Info regarding the Machine Directive 2006/42/EC Furniture with SERVO-DRIVE for AVENTOS, as long as it is intend- ed for domestic use, is not subject to the provisions of the Machine Directive 2006/42/EC. This is valid for items for office and profes- sional use and for putting a machine on the market within the Euro. -
Page 8: Disposal
Electrical and electronic appliances must not be disposed of with household waste at the end of their service life. Ask your local authority for information on how to proceed. Blum electrical and electronic appliances meet the requirements of the WEEE Directive 2012/19/EU. -
Page 9: Simplified Eu Declaration Of Conformaty - Julius Blum Gmbh
Simplified EU Declaration of Conformity Hereby, Julius Blum GmbH declares that all electrical and electronic article types of Julius Blum GmbH are in compliance with Directive 2011/65/EU. Hereby, Julius Blum GmbH declares that the radio equipment types 23.A00L83, 23KA001, 23KA000, 21FA001, 21FA000, 21LA001, 21LA000, 21SA001, 21SA000, 21KA001, 21KA000, 23P5020, 21P5020 and Z10C5007 are in compliance with Directive 2014/53/EU. -
Page 10: Servo-Drive Overview Drawing

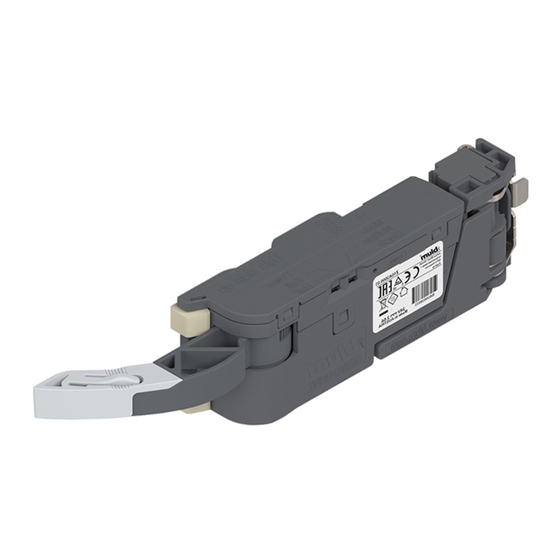

SERVO-DRIVE overview drawing A6 A7 A6 A7... - Page 11 Blum distance bumper Lift mechanism Telescopic arm or lever arm Drive unit with LED display Cover cap SERVO-DRIVE switch with battery display Bracket profile vertical Bracket profile cable (for power supply) Communication cable Upper/Back bracket profile attachment Lower bracket profile attachment...
-
Page 12: Aventos Function
AVENTOS function Electrical motion support system The SERVO-DRIVE switch triggers the automatic opening and closing action of SERVO-DRIVE for AVENTOS. Press on the front ➢ The lift system opens automatically Press on the SERVO-DRIVE switch ➢ The lift system closes automatically... -
Page 13: Servo-Drive Für AventosᆤAventos Hk Top
HF / -HS / -HL Drive unit assembly NOTE ➢ Before SERVO-DRIVE for AVENTOS assembly, the lift mechanisms must be set so that the front remains open in different positions. ➢ The telescopic arm and/or lever arm must be in the completely open position for drive unit installation. -
Page 14: Servo-Drive Switch Installation
The drive unit can be locked when the orange slide is no longer visible in the view window. NOTE The drive unit can only be locked when the drive unit is inserted completely into the lift mechanism. SERVO-DRIVE switch installation... - Page 15 ✓ Drive unit assembly NOTE ➢ Before SERVO-DRIVE for AVENTOS assembly, the lift mechanisms must be set so that the front remains open in different positions. ➢ The telescopic arm and/or lever arm must be in the completely open position for drive unit installation.
- Page 16 SERVO-DRIVE switch installation...
-
Page 17: Servo-Drive For Legrabox / Tandembox / Movento / Tandem
SERVO-DRIVE for LEGRABOX / TANDEMBOX / MOVENTO / TANDEM Drive unit assembly Horizontal cross member assembly Vertical cross member assembly... -
Page 18: Assembly Of Larder Unit With Horizontal And Vertical Cross Members
Assembly of larder unit with horizontal and vertical cross members Equip bracket profile with distribution cable. Remove pre-mounted bracket profile cable from both bracket profiles and insert a new, long bracket profile cable in the upper bracket profile. Insert long bracket profile cable into the lower bracket profile. -
Page 19: Attachment Bracket 1 Tier, 2 Tier
Attachment bracket 1 tier / 2 tier Attachment bracket 1 tier Attachment bracket 2 tier A second drive unit can also be installed (optional). Bracket proile horizontal Equip drive unit adapter bracket profile cable Attach drive unit to drive unit adapter Install drive unit adapter to bracket profile horizontal Install bracket profile horizontal in bracket profile attachment... -
Page 20: Upper Attachment Bracket
Upper attachment bracket The bracket plate must be connected to the cross bar to make it secure. Insert bracket profile cable Attaching drive unit to adapter... -
Page 21: Blum Distance Bumper
Blum distance bumper NOTE ➢ Do not glue the Blum distance bumper Installation in the front Aluminium frame: Installation in the cabinet side Cabling overview drawing Wall cabinet Wall cabinet/Base cabinet combination A1 A3 A4 A6 A7 A6 A7 Base cabinet... -
Page 22: Connecting Node Assembly
Connecting node assembly NOTE ➢ Do not damage piercing pins. Transformer assembly Transformer unit housing for base ixing Transformer unit housing for panel ixing Transformer unit housing – Assembly on the top panel... -
Page 23: Cable Diagram
Cable diagram NOTE ➢ Only 1 Blum transformer can be connected to each distribution cable. SERVO-DRIVE for AVENTOS Back cabling Upper cabling SERVO-DRIVE for LEGRABOX / TANDEMBOX / MOVENTO / TANDEM Transformer unit housing for base fixing Transformer unit housing for panel fixing Sink cabinet Transformer unit housing for base fixing... -
Page 24: Button Layout
SERVO-DRIVE for AVENTOS Activating the SERVO-DRIVE switch Additional features Synchronisation activation Collision avoidance activation Starting reference run Deactivation Reset motion Reset wireless Button layout Drive unit <Reset Motion> button Motion LED <SWITCH> button <SYNC> button <COLL> button <Reset Wireless> button... - Page 25 Operation Lights up continuously Flashes Activating the SERVO-DRIVE switch Setting up the wireless connection between the SERVO-DRIVE switch and the drive unit A switch can only be assigned to one drive unit. Press the <SWITCH> button until the LED flashes green.
- Page 26 Operation Lights up continuously Flashes Starting reference run The drive unit recognises the required parameters using the refer- ence run. Reference run is required: LED flashes Close the front manually Press on front: The reference run starts automatically Front opens and closes 2x automatically: Under no circumstances should you try to manually interrupt or stop the process.
-
Page 27: Activating Synchronisation
Up to three drive units can be synchronised allowing them to move simultaneously. This function is required for several cabinets with a uniform front. Activating the SERVO-DRIVE switch → see A 1–3. Press the <SYNC> button for the first drive unit until the LED flashes green. -
Page 28: Activating Collision Avoidance
A front is prevented from opening as long as a linked front remains open. Activating the SERVO-DRIVE switch → see A 1–3. Press the <COLL> button for the first drive unit until the LED flashes green. -
Page 29: Reset Motion
➢ Open the SERVO-DRIVE switch and remove the battery ➢ Insert the new battery (type CR2032) and close the SERVO-DRIVE switch – note correct polarity +/- NOTE ➢ The SERVO-DRIVE switch battery must not be recharged or thrown into fire. - Page 30 SERVO-DRIVE for AVENTOS HK top Activating the SERVO-DRIVE switch Additional features Synchronisation activation Collision avoidance activation Starting reference run Deactivation Reset Button layout Drive unit <Reset> button <Collision> button <Play> button <Ok> button <Connect> button SERVO-DRIVE switch...
- Page 31 Start-up Operation Lights up continuously Flashes Activating the SERVO-DRIVE switch Setting up the wireless connection between the SERVO-DRIVE switch and the drive unit A switch can only be assigned to one drive unit.
- Page 32 Operation Lights up continuously Flashes Starting reference run The drive unit recognises the required parameters using the refer- ence run.
- Page 33 Operation Lights up continuously Flashes Activating synchronisation Up to three drive units can be synchronised allowing them to move simultaneously. This function is required for several cabinets with a uniform front.
- Page 34 Operation Lights up continuously Flashes Activating collision avoidance To avoid the collision of fronts, drive units (max. 6) can be linked so that only one front can be opened at a time. A front is prevented from opening as long as a linked front remains open.
- Page 35 Operation Lights up continuously Flashes > 1.5 s...
- Page 36 ➢ Insert the new battery (type CR2032) and close the SERVO-DRIVE switch – note correct polarity +/- If the battery is inserted incorrectly, the SERVO-DRIVE switch battery display will flash red. NOTE The SERVO-DRIVE switch battery must not be recharged or discarded into fire.
-
Page 38: Servo-Drive For Legrabox / Tandembox / Movento / Tandem - General Information
SERVO-DRIVE for LEGRABOX / TANDEMBOX / MOVENTO / TANDEM – General information Drive unit selector switch Selector switch Mode (1) Single: Only one drive unit moves (standard setting) Multiple: When set to "Multiple," drive units move simulta- neously to any drive unit that is activated on same vertical bracket profile. -
Page 39: Blum Transformer Removal
Blum transformer removal WARNING Danger of electric shock ➢ Never open a Blum transformer. There is a danger of electric shock. ➢ Before starting repair or maintenance work, unplug the Blum transformer to disconnect the power. Transformer unit housing Transformer unit housing... -
Page 40: Servo-Drive For Aventos
SERVO-DRIVE for AVENTOS WARNING Danger of electric shock ➢ Never open a Blum transformer. There is a danger of electric shock. ➢ Before starting repair or maintenance work, unplug the Blum transformer to disconnect the power. Removal AVENTOS HK top... -
Page 41: Legrabox / Tandembox / Movento / Tandem
Distribution cable AVENTOS HK top LEGRABOX / TANDEMBOX / MOVENTO / TANDEM Drive unit removal... - Page 42 Julius Blum GmbH Beschlägefabrik Industriestraße 1 6973 Höchst, Austria Tel.: +43 5578 705-0 Fax: +43 5578 705-44 E-Mail: info@blum.com www.blum.com...
