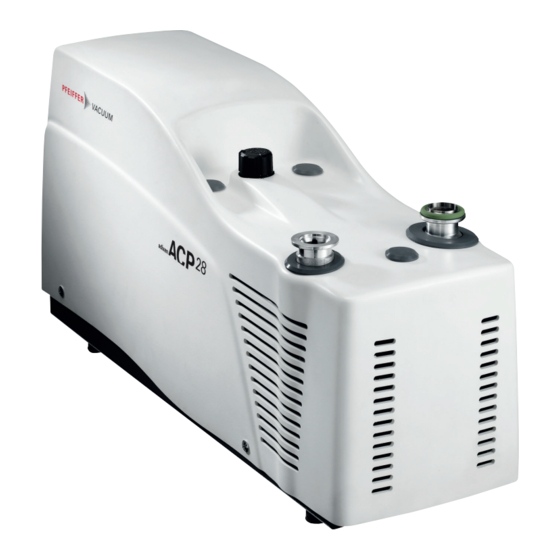

- Page 1 OPERATING INSTRUCTIONS Translation of the Original ACP 28 - 40 Multi-stage Roots pump, air cooled...
- Page 2 These operating instructions describe all models and variants of your product. Note that your product may not be equipped with all features described in this document. Pfeiffer Vacuum constantly adapts its products to the latest state of the art without prior notice. Please take into account that online operating instructions can deviate from the printed operating instructions supplied with your product.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity 1.1.1 Applicable documents 1.1.2 Products concerned Conventions 1.2.1 Pictographs 1.2.2 Target group 1.2.3 Instructions in the text 1.2.4 Labels Safety General safety information 2.1.1 Safety instructions 2.1.2 Precautions Intended use Foreseeable misuse Transportation and Storage Receipt of the product... - Page 4 7.4.2 Preparing the pump for shipping Decommissioning Extended Immobilization Recommissioning Disposal Malfunctions Trouble at pump start-up The pump runs incorrectly Service solutions by Pfeiffer Vacuum Accessories Technical data and dimensions 12.1 General 12.2 Technical characteristics 12.2.1Environmental conditions 12.2.2Nitrogen characteristics 12.2.3Electrical characteristics 12.3 Dimensions...
- Page 5 Default serial link configuration Tbl. 3: Meaning of the indicator lights Tbl. 4: Various gas ballast models Tbl. 5: ACP 28 technical characteristics Tbl. 6: ACP 40 technical characteristics Tbl. 7: Conversion table: Pressure units Tbl. 8: Conversion table: Units for gas throughput Tbl.
- Page 6 Fig. 2: ACP 28 - 40 - CV version with single-phase frequency converter Fig. 3: ACP 28 - 40 - Versions SD - SH - G - CP - LG with single-phase frequency converter Fig. 4: Remote control connector wiring Fig.
-
Page 7: About This Manual
Keep the manual for future consultation. 1.1 Validity This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de- scribe the functions of the named product and provide the most important information for the safe use of the device. The description is written in accordance with the valid directives. The information in this op- erating instructions refers to the product's current development status. -
Page 8: Target Group
The work described in this document must only be carried out by persons with suitable technical training (specialized staff) or persons who have undergone Pfeiffer Vacuum training. 1.2.3 Instructions in the text Usage instructions in the document follow a general structure that is complete in itself. The required ac- tion is indicated by an individual step or multi-part action steps. - Page 9 About this manual This label warns users about the risk of crushing or cutting due to moving parts: keep a safe distance and/or keep your hands away from the moving parts. This label indicates that certain internal components carry an electric WARNING charge and can cause electric shock if touched: before working on the HAZARDOUS VOLTAGE...
-
Page 10: Safety
Safety 2 Safety 2.1 General safety information The following 4 risk levels and 1 information level are taken into account in this document. DANGER Immediately pending danger Indicates an immediately pending danger that will result in death or serious injury if not observed. ►... - Page 11 Safety WARNING Danger of electrocution by contact during maintenance or overhaul There is an electric shock hazard in case of contact with a product powered on and not electrically isolated. ► Before carrying out any work, set the main switch to O. ►...
-
Page 12: Precautions
Safety 2.1.2 Precautions Duty to provide information on potential dangers The product holder or user is obliged to make all operating personnel aware of dangers posed by this product. Every person who is involved in the installation, operation or maintenance of the product must read, understand and adhere to the safety-related parts of this document. -
Page 13: Transportation And Storage
Transportation and Storage 3 Transportation and Storage 3.1 Receipt of the product Condition of the delivery ● Check that the product has not been damaged during transport. ● If the product is damaged, take the necessary measures with the carrier and notify the manufacturer. -
Page 14: Storage
(see chapter “Dimensions”, page 46). 3.3 Storage Pfeiffer Vacuum recommends storing the products in their original transport packaging. Storing a new pump 1. Keep the pump wrapped in its protective envelope. 2. Always leave inlet, exhaust and purge protections in place. -
Page 15: Product Description
The pump design is based on a standard pump. It is used in applications where the backstreaming of fluorine is critical, in particular those installations that use NEG (Non-Evaporable Getter pump) ion pumps. The lubricants and seals used do not contain fluorine compounds. Please contact Pfeiffer Vacuum for more detailed information on specific applications. 15/54... -
Page 16: Human/Machine Interface
6 Remote connector and RS-485 connector External silencer (CV version) Fig. 3: ACP 28 - 40 - Versions SD - SH - G - CP - LG with single-phase frequency converter 1 Inert gas purge connection (G version) RJ45 connector... -
Page 17: Installation
Installation 5 Installation 5.1 Installation The pump needs to operate in a horizontal position resting on its feet, the pumping axis must be verti- cal, and the pump inlet must be on top. 1. Determine where the pump will be located. 2. Handle the pump using a hoist. 3. -
Page 18: Connection On The Pump Inlet Side
Installation 4. Remove the blanking plates used to seal the inlet and exhaust ports. 5. Keep the blanking plates, screws and washers for reuse when transporting the pump. 6. Ensure that no screws, washers or other objects are dropped into the pump inlet. 7. -
Page 19: Connecting Cp Version Pumps
The gas purge consists of injecting an inert gas into the pump. In this manual, the inert gas will be called ‘nitrogen’, as it is the most commonly used gas. For more information about the type of purge gas, contact your Pfeiffer Vacuum service center. DANGER Danger of death by explosion when pumping gases containing pyrophoric/flammable materi- There is a risk of explosion if pyrophoric materials above the LEL are sent to the pump. -
Page 20: Check That The Installation Is Leaktight
Installation LG version The air injection line flow rate is ensured by a jet, which is integrated into the pump. 5.3 Check that the installation is leaktight When the product leaves the factory, product leaktightness under normal operating conditions is guar- anteed. -
Page 21: Customer Electrical Installation Protection
Installation The pump has thermal sensors that prevent start-up at certain temperatures (see chapter “Preliminary precautions for use”). 5.4.1 Customer electrical installation protection The pump is connected to the mains with the mains power cable provided. The earth connection (fre- quency converter, cover, pump) is made via the power cable connected to a compliant electrical instal- lation. -
Page 22: Setting Of The Rotation Speed
Installation Fig. 4: Remote control connector wiring Contact Function S1 (7-8) Pump Start/Stop Contact open, S1=0: the pump stops Contact closed, S1=1: pump start-up S3 (9-10) Rotational speed setting Depending on the contact status (open or closed), the rota- tion speed changes. S4 (11-12) S5 (13-14) 5.5.2 Setting of the rotation speed... -
Page 23: Wiring The Rs-485 Serial Link
Installation 5.6 Wiring the RS-485 serial link NOTICE Risk of electromagnetic disturbance Voltages and currents can induce a multitude of electromagnetic fields and interference signals. In- stallations that do not comply with the EMC regulations can interfere with other equipment and the environment in general. -
Page 24: Setting
Installation RS-485 communication 5.6.2 Setting When the wiring is done, to allow pump control via serial link, proceed as follows: 1. Set the main switch to I. 2. Send an order via the serial link: this order has no priority on remote control mode via dry con- tacts. -
Page 25: Command List
Installation 5.6.3 Command list Order Parame- Description Details Assign an address The default factory setting for the address of a pump is to a pump in the 000. network. This address can be modified pump stopped. Command: #adrADRxxx<CR> ● adr = pump address ●... - Page 26 Installation Order Parame- Description Details none Change to nominal Command: #adrNSP<CR> speed. Response : #adr,ok or #adr,Errx (x=0/1/2/3/4) ● Nominal speed = 4800 min (80 Hz) Example: to change pump 004 to nominal speed: Command: #004NSP<CR> ON or Unblock the pump. Allows debonding a pump obstructed by dust.
-
Page 27: Operation
● Do not drain the pump: this operation is carried out during pump overhaul by our serv- ice centers. Safety data sheets You can obtain the safety data sheets for operating fluids from Pfeiffer Vacuum on request, or from the Pfeiffer Vacuum Download Center. -
Page 28: Matrix Gas/Applications
Operation 4. Check that the inlet pressure is not higher than atmospheric pressure. If the pressure is too high, it can damage the product. 5. Check that the ambient temperature is well within the permitted operating range. 6. Check the exhaust line during pumping to prevent the risks related to excess overpressure. 6.2 Matrix gas/applications You are advised to use the appropriate pump version according to the applications and the nature of the gases pumped and apply the usual precautions to guarantee the reliability and safety of the procedure. -
Page 29: Different Control Modes
Operation Specifications for CP version pumps The CP version pump cannot be used for the pumping of reactive, corrosive, flammable or explosive gas. The CP version pump is specially made to recirculate gas or to recover chemically inert gas. Specifications for LG version pumps The LG version pump is designed for specific applications. -
Page 30: Remote Control Mode Operation
Operation DANGER Risk of injury when power is restored to the pump In local mode, permanent contact between terminals 7 and 8 (cover plug strap) triggers an auto-re- start when the mains power supply is restored to the pump. ► Take all the measures required to prevent risks resulting from this type of operation. 6.3.2 Remote control mode operation ►... -
Page 31: Operation Monitoring
Operation Starting the pump 1. Position the main switch to I position: the pump is powered. 2. Send an ‘ACPON’ order via the serial link: ● The pump starts and runs at the speed set on the serial link parameters. ●... -
Page 32: Purge Operation
Operation beyond its saturated vapor pressure in the compression phase. It can condense, impairing pump per- formance. The gas ballast can be used to inject a certain quantity of air (neutral or dry gas) into the pump during the ‘compression’ phase so that the partial pressure of the pumped gas is less than its sa- turated vapor pressure at the pump’s operating temperature. - Page 33 Operation The combined use of the gas ballast and the purge allows large amounts of condensable vapors to be removed. Commissioning To better pump with condensable vapors or moist air, it is necessary to operate with a hot pump and to use a nitrogen supply with the required characteristics (see chapter “Nitrogen characteristics”).
-
Page 34: Maintenance
Maintenance 7 Maintenance 7.1 Maintenance safety instructions DANGER Risk to health posed by residual traces of process gases inside the pump Process gases are toxic and hazardous to health. They can cause poisoning and be fatal. Before dis- connecting the pump, any remaining traces of process gases must be eliminated. ►... -
Page 35: Maintenance Frequency
► Remove dust from the air ventilation grids with a cloth. Do not use a compressed air blower. Cleaning the inlet filter The ACP 28 and ACP 40 models are fitted with a filter in the inlet flange. Check the cleanliness of this filter regularly. -
Page 36: Exchange Procedure For Replacement Products
Maintenance 1 Conical filter Draining the external silencer (CV version) The maintenance frequency depends on the amount of condensable vapors pumped in the application in which the pump is installed. Users are advised: ● either to regularly check the saturation of the silencer and drain it when necessary. ●... -
Page 37: Disconnecting The Pump From The Installation
● Connect the cover plug (delivered with the pump) to the remote connector. Product transport and shipping For product transport and shipping, pack it in the original packaging and follow the instructions from the Service procedure (see chapter “Service solutions by Pfeiffer Vacuum”, page 41). 37/54... -
Page 38: Decommissioning
The manufacturer shall only be required to take back equipment that is complete and unmodified, using Pfeiffer Vacuum SAS original spare parts, sold by Pfeiffer Vacuum and including all assemblies and sub-assemblies. This obligation does not cover the shipping cost to a reclamation facility or services provided, for which the customer will be invoiced. -
Page 39: Malfunctions
Malfunctions 9 Malfunctions 9.1 Trouble at pump start-up Read the safety instructions for maintenance. Symptom Cause Remedy The pump does not start and the fan does not Main switch ● Check that the main switch is at the I po- run. sition. The red indicator light is lit. - Page 40 Malfunctions Symptom Cause Remedy Bad ultimate pressure Gas ballast ● Check if the gas ballast is open. Warning: if the application re- quires it, the gas ballast must remain open at the expense of the limit pressure! Purge (if present) ●...
-
Page 41: Service Solutions By Pfeiffer Vacuum
We are always focused on perfecting our core competence – servicing of vacuum components. Once you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly where service begins. Obviously, in proven Pfeiffer Vacuum quality. - Page 42 Service solutions by Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the provisions in the contamination declaration. a) Neutralize the product with nitrogen or dry air. b) Seal all openings with blind flanges, so that they are airtight.
-
Page 43: Accessories
Accessories 11 Accessories Refer to the accessory operating instructions to install the accessory. Accessory Pump versions Description Function Model Dimension Inlet filter Stops particles and dust with a diame- IPF 25 111649 ter greater than 25 microns. DN 25 ISO-KF IPF 40 111647 DN 40 ISO-KF Exhaust silencer... -
Page 44: Technical Data And Dimensions
Technical data and dimensions 12 Technical data and dimensions 12.1 General Basic principles for the Technical Data of Pfeiffer Vacuum dry compact multi-stage Roots pumps: ● Recommendations of PNEUROP committee PN5 ● ISO 21360; 2007: “Vacuum technology - Standard methods for measuring vacuum-pump perform- ance - General description”... -
Page 45: 1Environmental Conditions
Technical data and dimensions ACP 40 characteristics ACP 40 SH/SD G/LG Max. ultimate pressure (with purge) 2 · 10 - 1 2 · 10 Maximum ultimate pressure (with purge and gas 3 · 10 ballast open) Max. pumping capacity of pure water vapor at 20 °C 120 g/h 120 g/h 700 g/h... -
Page 46: 2Nitrogen Characteristics
Technical data and dimensions Protection rating IP 20 Ambient operating temperature 12 – 40 °C Storage temperature -10 – +60 °C Maximum relative humidity max. 80 % with T ≤ 31 °C, up to max. 50 % with T ≤ 40 °C Transient overvoltage protection Category II Pollution degree... - Page 47 Technical data and dimensions Exh. Fig. 8: Dimensions ACP 28 - 40 versions SD - SH - LG - G ACP 28-40 Single-Phase Three-Phase 1) F = 306.7 for LG version 2) P = 1/4 BSPP purge connection for G version...
- Page 48 Three-Phase 18.5 ACP 28 CV/ACP 40 CV Single-Phase Three-Phase H (Exh.) S (IN) AC AB Exh. Fig. 10: Dimensions ACP 28 - 40 versions CP ACP 28 CP/ACP 40 CP Single-Phase Three-Phase ACP 28 CP/ACP 40 CP Single-Phase Three-Phase 48/54...
-
Page 49: Weight Distribution And Center Of Gravity
Center of gravity Model Center of gravity (mm) Weight per foot (DaN) ACP 28/ACP 40 Single-phase/Three-phase 69.5 80.5 ACP 28 G/ACP 40 G Single-phase/Three-phase 69.5 80.5 ACP 28 CP/ACP 40 CP Single-phase/Three-phase 69.5 80.5 ACP 28 SH/ACP 40 SH Single-phase/Three-phase 69.5... -
Page 50: Load On Foot With Fastening Set
Technical data and dimensions Model Center of gravity (mm) Weight per foot (DaN) ACP 28 CV/ACP 40 CV Single-phase 69.5 80.5 ACP 28 CV/ACP 40 CV Three-phase 70.5 79.5 12.5 Load on foot with fastening set We strongly recommended you secure the pump on the equipment with 4 screws (supply of these screws is the customer’s responsibility, at least 2 screws per fixation plate). -
Page 52: Declaration Of Conformity
Multi-stage Roots Pump, air cooled ACP 28 - ACP 28 G - ACP 28 CV - ACP 28 SH - ACP 28 LG - ACP 28 CP ACP 40 - ACP 40 G - ACP 40 CV - ACP 40 SH - ACP 40 LG - ACP 40 CP...
