Summary of Contents for Pfeiffer Vacuum PTR 225

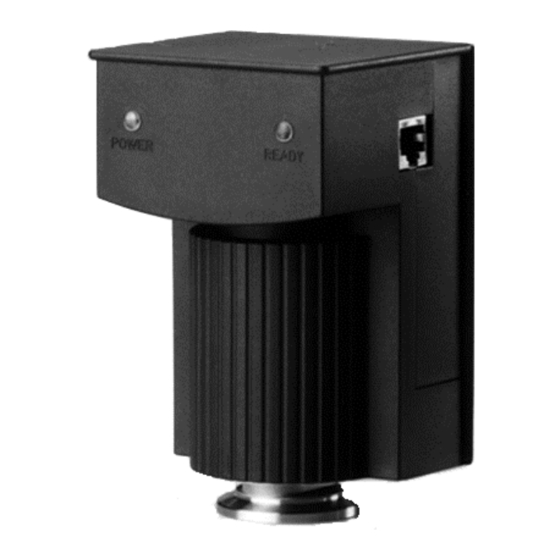

- Page 1 OPERATING INSTRUCTIONS Translation of the original instructions PTR 225, PTR 225 S, PTR 237 Penning Gauge...
-
Page 2: Product Identification
Design and Function Based on a supply voltage of 24 V the PTR 225, PTR 225 S or PTR 237 generates the internal supply voltages required for operation of the integrated Penning mea- surement system. The PTR 225, PTR 225 S or PTR 237 supplies a logarithmic representation of the vacuum pressure by way of a voltage signal which ranges from 0.66 V to 10 V. -
Page 3: Scope Of Delivery
The PTR 225 S Penning gauge is equipped with an adjustable switching threshold. The switching element is a relay. The status of the threshold is indicated by a LED. -
Page 4: Table Of Contents
3.2 Electrical Connection 3.2.1 Power Supply 3.2.2 Switching on the High Tension 3.2.3 Measurement Signal Output 3.2.4 Status Output 3.2.5 Identification 3.2.6 Switching Threshold (PTR 225 S) 3.2.7 Monitor Output 4 Operation 4.1 Operation 4.2 Measurement System Status Indication 4.3 Degassing 5 Maintenance 5.1 The Electronics Assembly... -
Page 5: Safety
Communicate the safety instructions to all other users. 1.4 Liability and Warranty Pfeiffer Vacuum assumes no liability and the warranty is rendered null and void if the end-user or third parties • disregard the information in this document •... -
Page 6: Technical Data
Status displays Operation (POWER) orange LED Ready to measure (ignited) READY green LED Switching threshold (active) green LED (PTR 225 S only) Measurement System Measurement system detachable Vacuum connection DN 25 KF or DN 40 CF Degassing temperature see Section 4.3... - Page 7 Error (not ignited, HV off) For this refer also to section 3.2.4. Mechanical Data Dimensions [mm] Fig. 1 Dimensional drawing for PTR 225 and PTR 225 S Weight 500 g approx. Storage temperature range –20 °C to +70 °C...
-
Page 8: Installation
In the PTR 225, PTR 225 S or PTR 237 the cathode plate (7/5) also acts as a baffle. - Page 9 Fig. 3 Block diagram PTR 225, PTR 225 S, PTR 237 BG 5043 BEN / A (2016-10) PTR225_237.oi...
-
Page 10: Power Supply
(PELV) and VDE 0100. The Penning gauges PTR 225, PTR 225 S or PTR 237 is capable of operating off supply voltages ranging from 14.5 V to 36 V. A supply voltage of 24 V DC is recom- mended. -
Page 11: Status Output
3 LED (green) 4 Connector Pin 1 Ground Pin 2 Normally open relay contact Pin 3 Center relay contact Pin 4 Normally closed contact Fig. 4 Penning gauge PTR 225 S BG 5043 BEN / A (2016-10) PTR225_237.oi... -
Page 12: Monitor Output
3.2.7 Monitor Output The monitor output (4/1) is accessible through a 3.5 mm jack socket so that the measurement signal and the trigger setting may be measured. The stereo jack plug which is included with the instrument may be used to connect a voltmeter, for example. -
Page 13: Operation
4 Opera ation DANGER A high ten nsion which is dangerous wh when touched i s applied to th sensor in the Penning g gauge. You m ust always sw witch off the su upply voltage fo or the gauge b efore starting any work on t the gauge (ev... -
Page 14: Measurement System Status Indication
70 °C. Before baking out, you must make sure that an aluminum edged seal (PTR 225 / PTR 225 S) or a copper seal (PTR 237) is used as the flange seal. The Penning gauge PTR 225, PTR 225 S or PTR 237 are equipped with all-metal sensing cells so that any outgassing caused by polymer seals is entirely avoided. -
Page 15: Maintenance
Always wear clean, lint-free gloves and use clean tools when working in this area. 5.1 The Electronics The electronics assembly of the Penning gauge PTR 225, PTR 225 S or PTR 237 does not require any maintenance. Assembly 5.2 Cleaning the Sensor... -
Page 16: Disassembly Of The Sensor
5.2.2 Disassem mbly of the he sensor con nsists of the va acuum housin ng, the anode ring (7/4) with h ignition aid Sensor 7/2) and the ca athode plate ( (7/5). See Fig. How to disasse emble: ) Use a pair o of tweezers to o pull the catho ode plate (7/5) -
Page 17: Assembly Of The Electronics Assembly
When the electronics assembly has been placed as required, the black magnet housing is fully surrounded by the housing of the PTR 225, PTR 225 S or 237. 3) Retighten the cross head screws at the rear of the gauge. -
Page 18: Troubleshooting
6 Troubleshooting Problem Possible cause Correction No LED is on. Supply voltage is missing. The "POWER" LED (6/1) High tension has not been ac- is on, the "READY" LED tivated. Pressure has dropped (6/2) is not on. below < 3·10- mbar. -
Page 19: Accessories
9 Returning the Product WARNING WARNING: forwarding contaminated products Products returned to Pfeiffer Vacuum for service or repair should, if possible, be free of harmful substances (e.g. radioactive, toxic, caustic or microbiological). Otherwise, the type of contamination must be de- clared. -
Page 20: Disposal
10 Disposal DANGER DANGER: contaminated parts Contaminated parts can be detrimental to health and environment. Before beginning to work, find out whether any parts are contami- nated. Adhere to the relevant regulations and take the necessary pre- cautions when handling contaminated parts. WARNING WARNING: substances detrimental to the environment Products or parts thereof (mechanical and electric components,... -
Page 21: Appendix
Appendi U (Out) Pres ssure Out) Pressur U (Out) Pressure U (Out) ressure Relat tionship b between [mba [mbar] [mbar] mbar] outpu ut voltage e and press sure 0,667 1,00 0E-09 1,12E-0 1,00E-05 91E-04 (U = 0,4 4 V; "not ignite ed") 1,26 6E-09... -
Page 22: B: Example For Connecting
Example for Connecting Example for connecting the PTR 225: Switching the high tension via an external switch or contact Conversion Table Pressure units (vacuum technology) mbar Torr mm HG mbar 1×10 0.75 1×10 1×10 1×10 0.01 1×10 0.01 1×10 7.5×10 1×10... -
Page 23: Eu Declaration Of Conformity
2011/65/EU Products Penning g gauge PTR 22 5, PTR 225 S , PTR 237 Part numbe PT T13 148 300 PT T13 148 320 PT T13 358 300 Standards... - Page 24 VACUUM SOLUTIONS FROM A SINGLE SOURCE Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service. COMPLETE RANGE OF PRODUCTS From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
