Summary of Contents for Pfeiffer Vacuum TTR 101

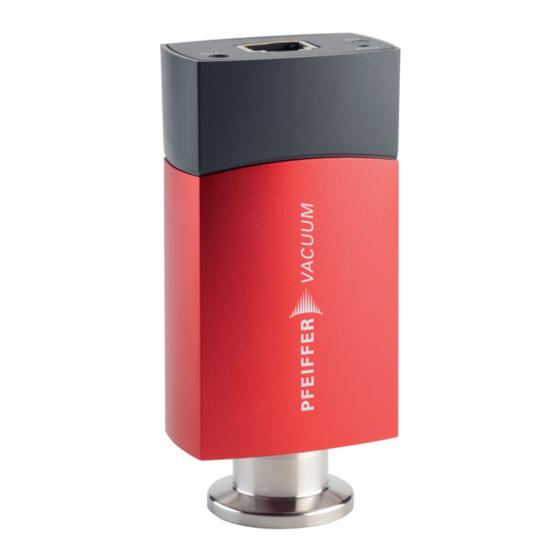

- Page 1 OPERATING INSTRUCTIONS Translation of the Original TTR 101 ∣ TTR 101 S2 Pirani/capacitance gauge...
- Page 2 Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new gauge is designed to support you in your individual application with maximum performance and without malfunctions. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service.
-
Page 3: Table Of Contents
Proper use Foreseeable improper use Responsibilities and warranty Owner requirements Personnel qualification 2.8.1 Ensuring personnel qualification 2.8.2 Personnel qualification for maintenance and repair 2.8.3 Advanced training with Pfeiffer Vacuum Operator requirements Product description Function Status display Switching functions Identifying the product... - Page 4 Table of contents Shipping Recycling and disposal 11.1 General disposal information 11.2 Dispose of gauges Service solutions by Pfeiffer Vacuum Spare parts Accessories 14.1 Accessory information 14.2 Ordering accessories Technical data and dimensions 15.1 General 15.2 Technical data 15.3 Dimensions...
- Page 5 List of tables List of tables Tbl. 1: Applicable documents Tbl. 2: Variants Tbl. 3: Abbreviations used Tbl. 4: LED "Status" Tbl. 5: LED "SP1" and "SP2" Tbl. 6: Constants for converting measuring signal and pressure Tbl. 7: Gas type dependence Tbl.
- Page 6 List of figures List of figures Fig. 1: Light emitting diodes Fig. 2: Relay contacts dependent upon the switch-points Fig. 3: Establishing the vacuum connection Fig. 4: Connection diagram Fig. 5: Measurement cable FCC-68, 8-pin Fig. 6: Relation between measuring signal and pressure Fig.
-
Page 7: About This Manual
Variants You can find the part number on the rating plate of the product. Pfeiffer Vacuum reserves the right to make technical changes without prior notification. Information that relates to only one of the products is indicated accordingly. The figures in this document are not to scale. -
Page 8: Conventions
This section describes all the stickers on the product along with their meaning. Rating plate The rating plate is located on the back of the de- D-35614 Asslar Mod. TTR 101 vice. PT T11 138 3x0 3103457 xxxxxxxxx Made in Liechtenstein 2019/04 Input 15...30 V DC 2.5 W... -
Page 9: Trademark Proof
Abbreviation Explanation Pressure RJ-45 Standardized plug-and-socket connection for telecommunication cabling (registered jack) set point Status width across flats Measuring signal [V] (output voltage) Tbl. 3: Abbreviations used 1.4 Trademark proof ● CenterLine ® is a trademark of Pfeiffer Vacuum GmbH. 9/44... -
Page 10: Safety
Safety instructions according to product’s life stages All safety instructions in this document are based on the results of a risk assessment. Pfeiffer Vacuum has taken into account all the relevant life stages of the product. Risks during installation DANGER Risk to life due to electric shock An improperly earthed product is potentially fatal in the event of a fault. - Page 11 ► Only operate the device in a dry environment. ► Operate the device away from fluids and humidity sources. ► Do not switch on the device if fluid has penetrated into it, instead contact Pfeiffer Vacuum Serv- ice. ► Always disconnect the current supply before cleaning the device.
-
Page 12: Safety Precautions
1500 hPa. Use the product according to its intended purpose ► Operate the gauge with a Pfeiffer Vacuum total pressure measuring and control unit or with an evaluation unit provided by the customer. ► Install, operate and maintain the gauge exclusively as prescribed in these operating instructions. -
Page 13: Foreseeable Improper Use
● Use with replacement or accessory parts that are unsuitable or are not approved 2.6 Responsibilities and warranty Pfeiffer Vacuum shall assume no responsibilities and warranty if the operating company or a third party: ● disregards this document ● does not use the product for its intended purpose ●... -
Page 14: Personnel Qualification For Maintenance And Repair
─ Customer with Pfeiffer Vacuum service training ─ Pfeiffer Vacuum service technician 2.8.3 Advanced training with Pfeiffer Vacuum For optimal and trouble-free use of this product, Pfeiffer Vacuum offers a comprehensive range of courses and technical trainings. For more information, please contact Pfeiffer Vacuum technical training. -
Page 15: Product Description
Product description 3 Product description 3.1 Function The gauge has a Pirani sensor and a capacitive diaphragm sensor. Both sensors are always active. For low pressures, the unit only uses the signal from the Pirani sensor for the pressure measurement. For high pressures, the unit only uses the signal of the capacitive diaphragm sensor. In a mixed range, the unit weights both signals proportional to the pressure and determines the output signal on this basis. -
Page 16: Identifying The Product
Measured value 3.4 Identifying the product You will need all the data from the rating plate to safely identify the product when communicating with Pfeiffer Vacuum. 1. Read the data on the product rating plate. 2. Record this data. 3. Always have all rating plate specifications to hand. -
Page 17: Transport And Storage
Transport and storage 4 Transport and storage 4.1 Transporting the product NOTICE Damage caused by incorrect transportation Transportation in unsuitable packaging, or failure to install all transport locks, can damage the prod- uct. ► Comply with the instructions for safe transportation. Packing We recommend keeping the transport packaging and original protective cover. -
Page 18: Installation
Installation 5 Installation 5.1 Establishing the vacuum connection DANGER Risk to life due to electric shock An improperly earthed product is potentially fatal in the event of a fault. ► Connect the product galvanically with the earthed vacuum chamber. ► Ensure that the connection complies with the requirements of a protective bonding according to EN 61010. -
Page 19: Establishing The Electric Connection
Improper connection, incorrect polarity or impermissible supply voltage will damage the gauge. ► Always connect the supply earth (pin 2) with the earth for the supply unit. Required material ● Measurement cable for a Pfeiffer Vacuum total pressure measuring and control unit from the Cen- terLine accessories range. - Page 20 Installation Establishing the electric connection ► Connect the measurement cable to the gauge. ► Connect the gauge to a Pfeiffer Vacuum total pressure measuring and control unit or an evalua- tion unit provided by the customer. Ident Switching functions 4.7Ω...
-
Page 21: Operation
Operation 6 Operation Once the supply voltage has been established, the measuring signal is available at the electrical con- nection between pins 3 and 5. Recommendations ► Respect the minimum stabilization period of 10 minutes. ► Respect the relation between measuring signal and pressure. ►... -
Page 22: Ascertaining Effective Pressure With Calibration Factors
Operation 6.2 Ascertaining effective pressure with calibration factors p [hPa] –1 –2 –3 –4 –4 –3 –2 –1 [hPa] Fig. 7: Gas type dependence A Pirani sensor Air, oxygen (O ), carbon monoxide (CO), nitrogen (N B Mixed range Helium (He) C Capacitive diaphragm sensor Argon (Ar) Pressure range... -
Page 23: Setting The Threshold Values
Operation Gas type Calibration factor (C) Water vapor Helium (He) Neon (Ne) Argon (Ar) Krypton (Kr) Xenon (Xe) Freon 12 The calibration factors provided are mean values. Tbl. 8: Calibration factors for the Pirani pressure range < 1 hPa Entering the calibration factor in a total pressure measuring and control unit ►... - Page 24 Operation Procedure 1. Press the "SP1" or "SP2" button using a stylus and keep it pressed. – The gauge changes to switching function mode and displays the current threshold value for 5 seconds at the measuring signal output. After 5 seconds, the threshold value setting shifts to- wards the upper setting limit.
-
Page 25: Disassembly
Disassembly 7 Disassembly DANGER Risk to life due to electric shock An improperly earthed product is potentially fatal in the event of a fault. ► Connect the product galvanically with the earthed vacuum chamber. ► Ensure that the connection complies with the requirements of a protective bonding according to EN 61010. - Page 26 Disassembly Fig. 9: Disassembling the gauge Tensioning piece Seal with centering ring and filter 2a Seal with centering ring Protective cap Disassembling the gauge 1. Disconnect the measurement cable from the gauge. 2. Remove the gauge from the vacuum system. 3.
-
Page 27: Maintenance
The following will result in the loss of the warranty: ● Damage to or removal of a closure seal ● Opening the device during the warranty period Contact the Pfeiffer Vacuum Service Center in the event of process-related shorter mainte- nance intervals. First read through the sections completely Read the section with the work instructions through completely first before you commence with work. -
Page 28: Cleaning Of Components
► Only operate the device in a dry environment. ► Operate the device away from fluids and humidity sources. ► Do not switch on the device if fluid has penetrated into it, instead contact Pfeiffer Vacuum Serv- ice. ► Always disconnect the current supply before cleaning the device. -
Page 29: Disassembling The Gauge
► Operate the device away from fluids and humidity sources. ► Take special precautions if there is a risk of dripping water. ► Do not switch on the device if fluid has penetrated into it, instead contact the Pfeiffer Vacuum Service Center. -
Page 30: Assembling The Gauge
Maintenance Fig. 11: Disassembling the gauge 1 Electronic unit Interior hexagon socket screw (2×) 2 Measurement system Procedure 1. Disassemble the gauge from the vacuum system. 2. Unscrew the interior hexagon socket screws from the electronic unit. 3. Remove the measurement system from the electronic unit without any rotary movement. 8.4 Assembling the gauge NOTICE Impairment from contamination and damage... -
Page 31: Malfunctions
Malfunctioning of the equipment as a direct result of contamination or wear, as well as wear parts, is not covered by the warranty. Rectifying malfunctions (reset) In the event of a malfunction, Pfeiffer Vacuum recommends disconnecting the supply volt- age, and then reconnecting after 5 seconds. 9.1 Troubleshooting... -
Page 32: Tbl. 10: Measurement
Malfunctions Ω Fig. 12: Contact pins of the measurement system Setpoint range Reasons for values being outside of setpoint range 40 ±1 Ω >> 40 Ω: Pollution << 40 Ω: Pollution ∞: Filament defective Tbl. 10: Measurement Performing a resistance test 1. -
Page 33: Shipping
► Comply with the instructions for safe shipping. Decontamination subject to charge Pfeiffer Vacuum decontaminates products not clearly declared "Free of contamination" at your expense. Instructions for safe shipping ► Do not ship microbiological, explosive or radioactively contaminated products. -
Page 34: Recycling And Disposal
11.1 General disposal information Pfeiffer Vacuum products contain materials that you must recycle. ► Dispose of our products according to the following: – Iron –... -
Page 35: Service Solutions By Pfeiffer Vacuum
We are always focused on perfecting our core competence – servicing of vacuum components. Once you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly where service begins. Obviously, in proven Pfeiffer Vacuum quality. - Page 36 Service solutions by Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the provisions in the contamination declaration. a) Neutralize the product with nitrogen or dry air. b) Seal all openings with blind flanges, so that they are airtight.
-
Page 37: Spare Parts
Spare parts 13 Spare parts Ordering spare parts ► Have the part number to hand, along with other details from the rating plate as required. ► Install original spare parts only. Description Order number Replacement measuring system DN 16 ISO-KF PT 120 041 -T 37/44... -
Page 38: Accessories
14.1 Accessory information Measurement cable Measurement cable in different lengths, for connecting to a Pfeiffer Vacuum total pressure measuring and control unit Seals with centering ring and filter Filter available in different pore sizes to protect the measuring system against contamination in the event of potential contaminating applications 14.2 Ordering accessories... -
Page 39: Technical Data And Dimensions
Technical data and dimensions 15 Technical data and dimensions 15.1 General mbar Torr | mm Hg mbar 1 · 10 0.75 1000 1000 1 · 10 0.01 0.01 1 · 10 1 · 10 7.5 · 10 0.75 1 · 10 0.01 1000 Torr | mm Hg 1.33... - Page 40 Ambient conditions Parameter Value Operation +10 to +50 °C ≤ 80 °C Vacuum connection Pfeiffer Vacuum measuring and control equipment complies with this requirement. For horizontal installation. The technical data may deviate in measuring range, accuracy and repeatability for bake-out. 40/44...
-
Page 41: Dimensions
Technical data and dimensions Parameter Value ≤ 160 °C Filament Storage -20 to +65 °C Tbl. 18: Temperatures Parameter Value Vacuum connection Stainless steel 1.4435 Filament Tungsten (W) Vacuum feedthrough Glass Screen Stainless steel Diaphragm Ceramic Other substances Ni, NiFe, stainless steel 1.4301, SnAg Tbl. -
Page 42: Etl Certification
ETL LISTED The products TTR 101 and TTR 101 S2 - conform to the UL standard UL 61010-1, issued 2004/07/12, Ed. 2, Rev. 2008/10/28. - are certified to the CAN/CSA standard CAN/CSA C22.2 No. 61010-1, issued 2004/07/12, Ed. 2, Rev. 2009. -
Page 43: Declaration Of Conformity
Declaration of conformity Declaration for product(s) of the type: Pirani/capacitance gauge TTR 101 TTR 101 S2 We hereby declare that the listed product satisfies all relevant provisions of the following European Directives. Electromagnetic compatibility 2014/30/EU Restriction of the use of certain hazardous substances 2011/65/EU...
