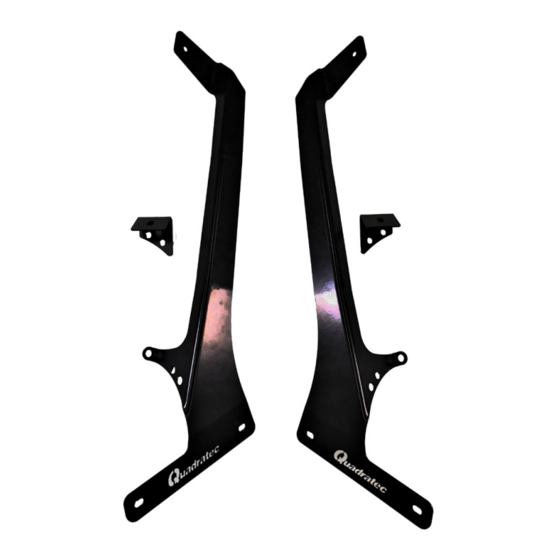

JL/JT A-Pillar Light Bar
Mounting Brackets

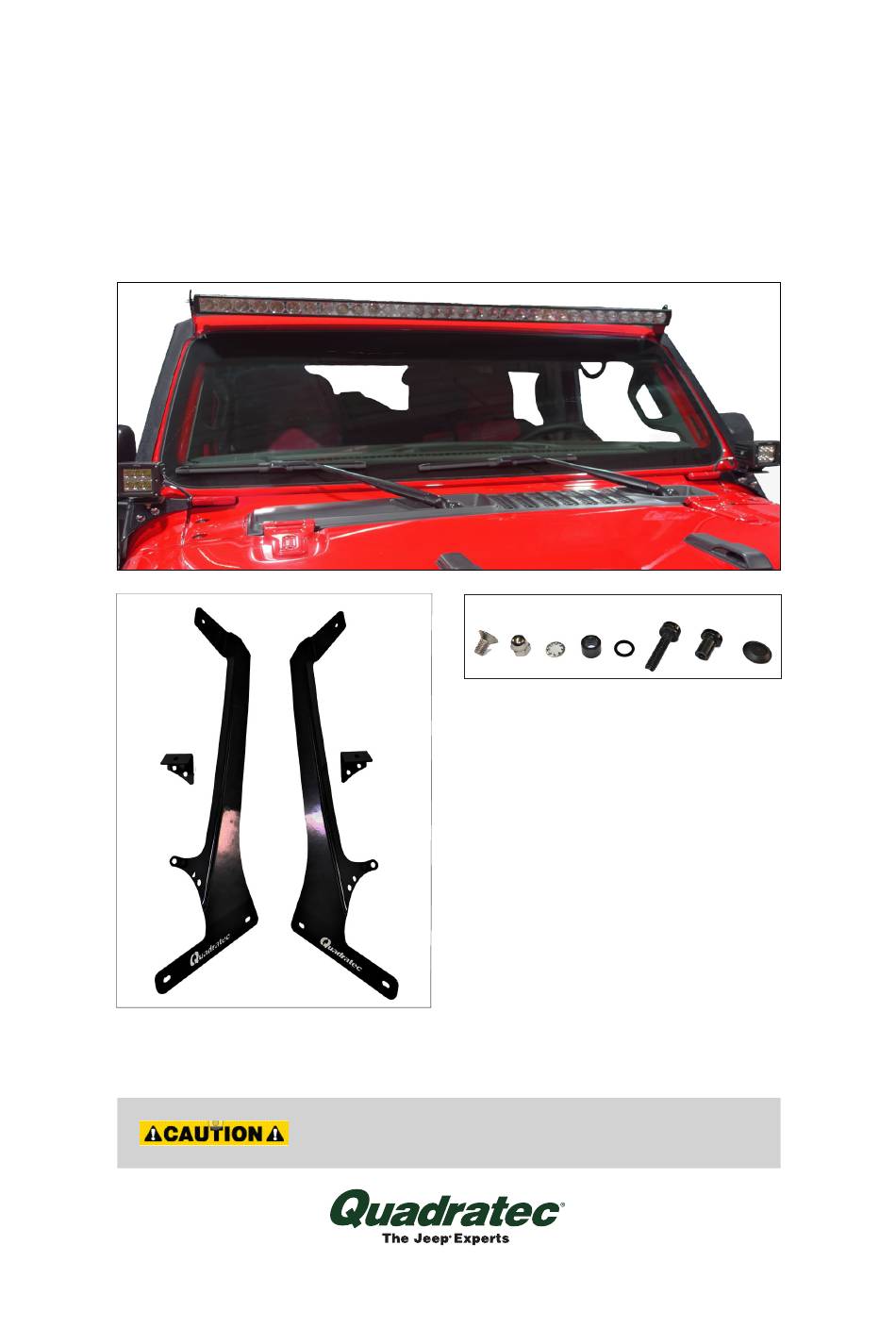

Installation Manual For '18 - Current Wrangler JL-JT Vehicles #12005.8125
A) Driver Side
B) Driver Side
Cube Light
Bracket
C
C) Passenger Side
PARTS LIST:
D) Passenger Side
A) Driver Side Bracket -
Cube Light Bracket
B) Driver Side Cube Light Bracket -
C) Passenger Side Bracket -
D) Passenger Side Cube Light Bracket -
E) Flat Head Hex Screw - M8x1.25x14.5 - QTY 4
F) Acorn Nut - M8x1.25 -
G) M8 Lock Washer -
H) Spacer - 10mm ID, x 10mm Length -
I) M12 ABS Washer -
J) Hex Screw - M8x1.25x30mm -
K) Barrel Nut - M6x1 ID Thread, 14.5mm QTY 2
L) 1/2" Plastic Sheet Metal Plug
REQUIRED TOOLS:
Safety Glasses
Torque Wrench
T50 Torx Bit Socket & Ratchet Driver
T40 Torx Bit Socket & Ratchet Driver
5mm Hex Bit Socket & Ratchet Driver
13mm Box Wrench
3/8" Box Wrench
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS BEFORE
ATTEMPTING TO INSTALL THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
DURING INSTALLATION.
1
E
F
G
H
I
®
J
K
L
QTY 1
QTY 1
QTY 1
QTY 1
QTY 4
QTY 4
QTY 4
QTY 4
QTY 4
QTY 4
Advertisement
Related Manuals for Quadratec JL
Summary of Contents for Quadratec JL
- Page 1 JL/JT A-Pillar Light Bar Mounting Brackets Installation Manual For '18 - Current Wrangler JL-JT Vehicles #12005.8125 A) Driver Side C) Passenger Side PARTS LIST: D) Passenger Side B) Driver Side A) Driver Side Bracket - QTY 1 Cube Light Bracket...
- Page 2 Careful attention is required to this instruction or operation but does generally not relate to personal injury. Damage to your Quadratec ® product or other property may result if you don’t follow instructions.
-
Page 3: Bracket Installation
Bracket Installation: FIG1 FIG2 Put on safety glasses. (FIG 1) Using a (FIG2) Using a T50 Torx bit socket 3/8" box wrench unscrew the antenna. remove the windshield hinge screw. FIG3 FIG4 (FIG3) Using a T40 Torx bit socket (FIG4) Run the wiring for the cube lights remove the 4 Cowl mounting screws and light bar then re-install the Cowl. - Page 4 FIG7 FIG6 (FIG6) Installing Cube lights with (FIG7) Align the bracket and Tighten all A-Pillar brackets hardware to 6ft-lbs. With a 5mm hex bit driver and 13mm Repeat for Driver side bracket. box wrench loosely assemble the Cube light bracket to the A-Pillar bracket Using a E), F), G) hardware.
- Page 5 FIG9 FIG10 (FIG9) Install one of the I) M12 ABS washers on the K) Barrel Nut. Insert the Barrel Nut into the mounting hole and install another I) M12 ABS washer on the other side of the hole. Using the T50 Torx bit socket, loosely thread the K) Barrel Nut into the windshield hinge.
- Page 6 Quadratec branded accessories first sold Quadratec to obtain a RGA number in the United States, Quadratec warrants to the (610-701-3336). All labor, removal, shipping and initial retail purchaser only that your Quadratec installation costs are customer’s responsibility.
