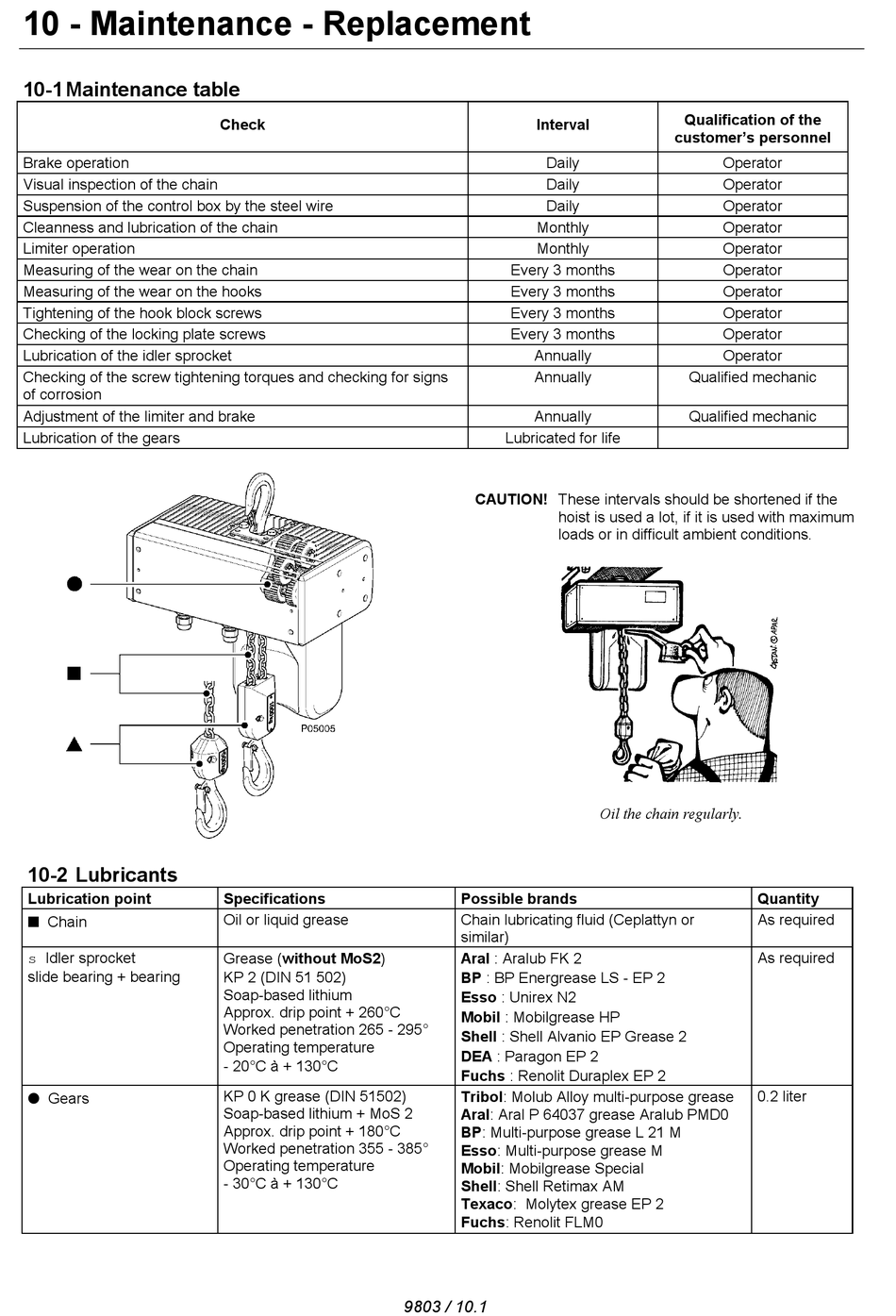

10 - Maintenance - Replacement

10-1 Maintenance table

Brake operation
Visual inspection of the chain
Suspension of the control box by the steel wire
Cleanness and lubrication of the chain
Limiter operation
Measuring of the wear on the chain
Measuring of the wear on the hooks
Tightening of the hook block screws
Checking of the locking plate screws
Lubrication of the idler sprocket
Checking of the screw tightening torques and checking for signs
of corrosion
Adjustment of the limiter and brake
Lubrication of the gears

10-2 Lubricants

Lubrication point
Chain
s Idler sprocket
slide bearing + bearing
Gears
Check
Specifications
Oil or liquid grease
Grease (without MoS2)
KP 2 (DIN 51 502)
Soap-based lithium
Approx. drip point + 260°C
Worked penetration 265 - 295°
Operating temperature
- 20°C à + 130°C
KP 0 K grease (DIN 51502)
Soap-based lithium + MoS 2
Approx. drip point + 180°C
Worked penetration 355 - 385°
Operating temperature
- 30°C à + 130°C
Interval
Daily
Daily
Daily
Monthly
Monthly
Every 3 months
Every 3 months
Every 3 months
Every 3 months
Annually
Annually
Annually
Lubricated for life
CAUTION! These intervals should be shortened if the
hoist is used a lot, if it is used with maximum
loads or in difficult ambient conditions.
Possible brands
Chain lubricating fluid (Ceplattyn or
similar)
Aral : Aralub FK 2
BP : BP Energrease LS - EP 2
Esso : Unirex N2
Mobil : Mobilgrease HP
Shell : Shell Alvanio EP Grease 2
DEA : Paragon EP 2
Fuchs : Renolit Duraplex EP 2
Tribol: Molub Alloy multi-purpose grease
Aral: Aral P 64037 grease Aralub PMD0
BP: Multi-purpose grease L 21 M
Esso: Multi-purpose grease M
Mobil: Mobilgrease Special
Shell: Shell Retimax AM
Texaco: Molytex grease EP 2
Fuchs: Renolit FLM0
9803 / 10.1
Qualification of the
customer's personnel
Operator
Operator
Operator
Operator
Operator
Operator
Operator
Operator
Operator
Operator
Qualified mechanic
Qualified mechanic
Oil the chain regularly.
Quantity
As required
As required
0.2 liter
