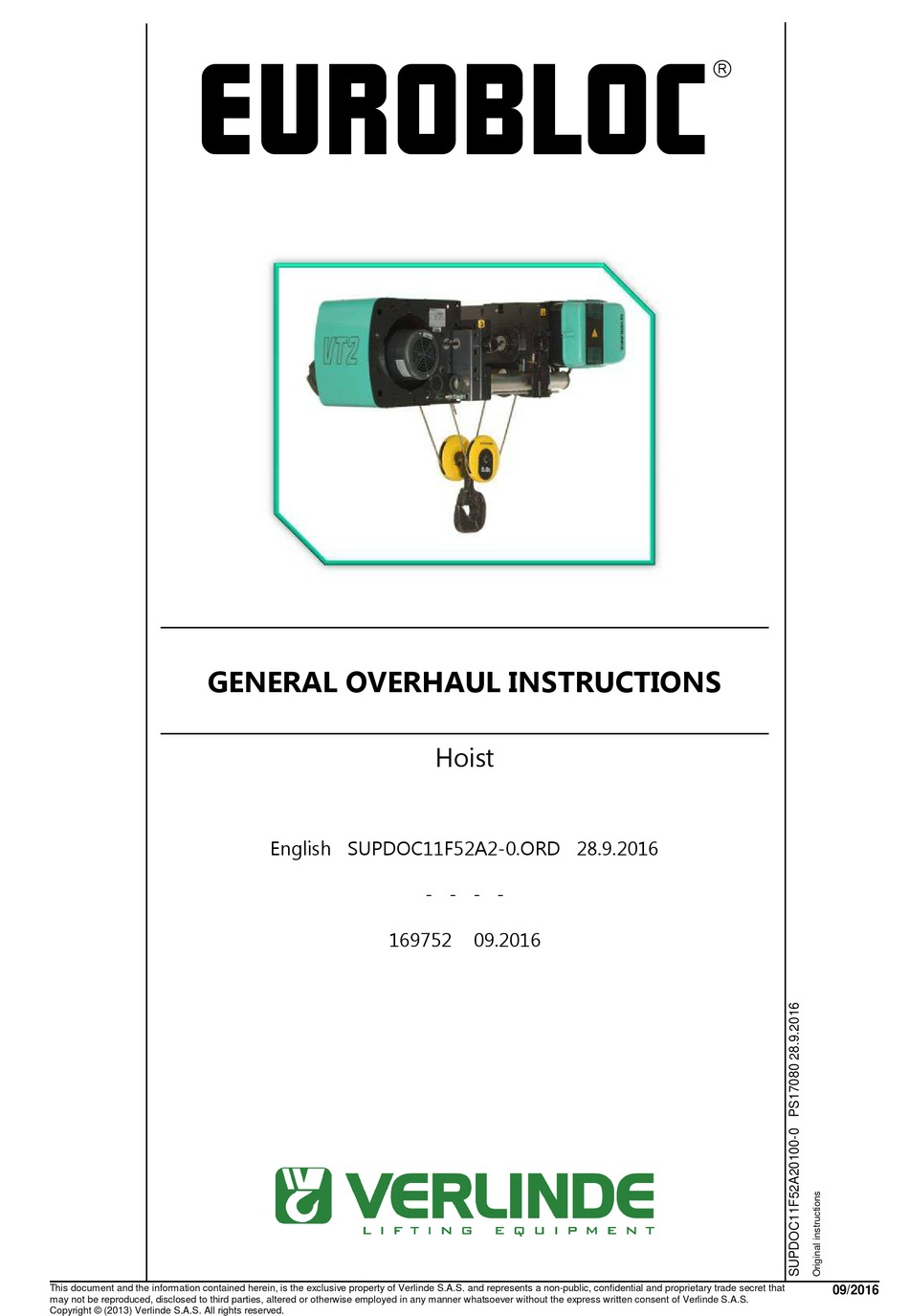

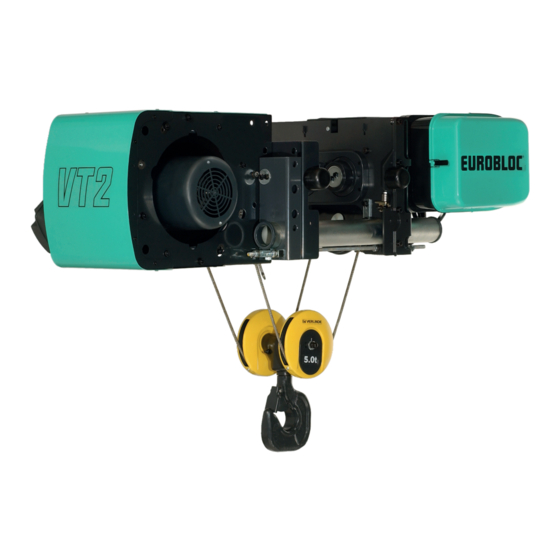

EUROBLOC
GENERAL OVERHAUL INSTRUCTIONS
Hoist
English SUPDOC11F52A2-0.ORD 28.9.2016
- - - -
169752
09.2016
This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that
09/2016
may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
Copyright © (2013) Verlinde S.A.S. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EUROBLOC VT4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Verlinde EUROBLOC VT4

  • Page 1 169752 09.2016 This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 2: Table Of Contents

    Construction of rope guide for hoist frame size: VT4, VT5 (Models before 12.2006) ......32 This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 3 Contactors ............................61 COMMISSIONING ........................62 This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 4 APPENDIX, USAGE AND SAFETY ASSESSMENT ..............65 APPENDIX, INSPECTION AND SERVICE REPORT ..............67 This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 5: Update History

    09.2016 XHUIKKHA This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 6: General Introduction

    Indicates that a rule is a recommendation, the advisability of which depends on the facts in each situation. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 7: Questions And Comments

    Maintenance work shall be carried out only by authorized service personnel or an experienced service technician authorized by the product manufacturer. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 8: Terminology

    The product also fulfills the requirements of the following standards (if applicable): CSA, UL, RoHS, OSHA, CCC. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 9: Safety First

    WARNING Never use a powder type fire extinguisher on high voltage. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 10: Main Isolation Switch

    The product power source must be locked out and tagged out when necessary, in accordance with local regulations. See chapter “Lockout – Tagout Procedure” This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 11: Lockout - Tagout Procedure

    Individual locks and tags are placed on controls to prevent their use until the person who installed the lock or tag removes it. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 12 Safety and operational considerations regarding other products on the same runway or on adjacent runways. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 13: Identification

    The example data in the figure is shown for illustration purposes only and does not match with the data on your product. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 14: Motor Identification Data

    The example data in the figure is shown for illustration purposes only and does not match with the data on your product. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 15: Condition Monitoring Unit Identification Data

    Condition monitoring serial number and other information are stated on the product description sticker which is attached to the unit. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 16: Frequency Converter Identification Data

    Code Identification and feature information provided by the manufacturer. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 17 Note: The term “QR Code” is a registered trademark of Denso Wave Incorporated in Japan and other countries. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 18: General Overhaul Overview

    Conditions for General Overhaul The following figure summarizes the conditions based on which General Overhaul can be performed. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 19: Collecting Information

    This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 20: Content And Cost Estimate

    Inspect the operation of the hoist in the end of the General Overhaul service. For more information, see chapter “Commissioning”. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 21: General Overhaul Summary

    Electrics: Radio receiver Electrics This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 22 EUROBLOC 22/69 This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 23: General Overhaul Preparations

    The GO service of a hoist takes 1 to 3 days and you need the following tools in the work: This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 24 (phillips and normal) mm and 8 mm This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 25 Instructions on assembling and disassembling components that have to be checked and replaced are shown in “Service Manual for Hoist”. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 26: Rope Drum

    Measuring drum groove wear Clean the rope drum grooves before you start measuring groove wear. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 27: Inspection Of Rope Drum When Hoist And Rope Drum Disassembled

    CAUTION further instructions before proceeding with GO. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 28: Rope Drum For Hoist Frame Size: Vt3

    Measuring drum bearing running surface wear Clean the bearing running surface before you start measuring wear. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 29: Drum Frame Bolts (Frame Size Vt3)

    Replace the drum connector rods if Inspection method: This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 30: Drum Axial Locking Part (Frame Size Vt3)

    The bearing sets (part 2 in the previous figure) See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 31: Rope Clamps

    The operational testing of the rope guide must be done before the hoist is lowered to the floor level. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 32: Construction Of Rope Guide (Newer Model) For Hoist Frame Size: Vt3

    TO ORDER: a rope guide: See Spare Part Catalogue 8.5.2 Construction of rope guide for hoist frame size: VT4, VT5 (Models before 12.2006) This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 33: Construction Of Rope Guide For Hoist Frame Size: Vt4, Vt5 (Models After 12.2006)

    The guide bearings (part 3 in the figure). See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 34: Rope Pressure Roller

    TO ORDER: a complete pressure roller or pressure roller parts: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 35: Construction Of Rope Pressure Roller For Hoist Frame Size Vt4, Vt5 (On Models Before 2011)

    Replace the pressure roller if: Inspection method: This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 36 TO ORDER: a complete pressure roller or pressure roller parts: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 37: Hoisting Machinery (Motor, Gearbox)

    The second brake. See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 38: Hoisting Machinery For Hoist Frame Size: Vt4, Vt5

    See Spare Part Catalogue and the coupling. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 39: Upper Pulley Block

    This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 40: Pulley Block Shaft, Frame Size Vt3, Reeving Code 04

    Visual. TO ORDER: a sheave shaft: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 41: Hook Block

    This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 42: Rope Sheave

    The shaft set. See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 43: Hook

    The locking rings/ locking nut See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 44: Rope Sheave

    MAX wear [mm] The clearance between the sheave groove gauge and the sheave groove This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 45: Measuring Sheave Groove Depth Wear

    [mm] [mm] This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 46: Overload Device Or Rope Anchorage Support

    The rope anchorage support. See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 47: Rope Anchorage

    The rope anchorage. See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 48: Hoisting Limit Switch

    The hoisting limit switch. The new limit switch is always a white hoist limit switch. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 49: Hook Operated Control Limit Switch

    See also “Service Manual for Hoist”. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 50: Trolley

    • Replace worn out fasteners. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 51: End Carriage

    TO ORDER: a wheel set: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 52: Trolley Type N, Swiveling And Non-Swiveling

    Visual. See the following figure. TO ORDER: a cross bar: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 53: Trolley Wheels

    Measure the wheel running diameter. TO ORDER: trolley wheels: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 54: Trolley Type L, Frame Size: Vt3

    Measure the wheel running diameter. TO ORDER: trolley wheels: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 55: Trolley Wheels

    D2 [mm] F [mm] This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 56 EUROBLOC 56/69 This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 57: Traveling Machinery

    See also “Service Manual for Hoist”. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 58: Electrics

    “Service Manual for Hoist Control Device”. TO ORDER: a condition monitoring unit: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 59: Frequency Converter

    TO ORDER: a frequency converter: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 60: Push Button Controller

    TO ORDER: a radio receiver: See Spare Part Catalogue This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 61: Contactors

    If a brake contactor contains an auxiliary contact block or a time delay auxiliary contact block, replace that part as well. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 62: Commissioning

    Inform the customer on the requirements of having operators trained in safe and efficient crane operation Handover documents. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 63: After General Overhaul

    Menu 6 is accessible for users with password level 6. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 64: New Runtime Swp (Menu 2)

    After General Overhaul, ensure that the new runtime-based SWP (parameter 2-12 SWPRT%) is set as 100%. The cycle-based SWP (parameter 2-15) should be the same as before GO. This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 65: Appendix, Usage And Safety Assessment

    Usage is the same or lighter as the one defined by the manufacturer Modernization This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 66 Place and date Signature This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 67: Appendix, Inspection And Service Report

    Upper pulley block Housing This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 68 Frequency converter Push button controller This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
  • Page 69 2-15 SWPHC[%] Same as before GO This document and the information contained herein, is the exclusive property of Verlinde S.A.S. and represents a non-public, confidential and proprietary trade secret that 09/2016 may not be reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Verlinde S.A.S.
