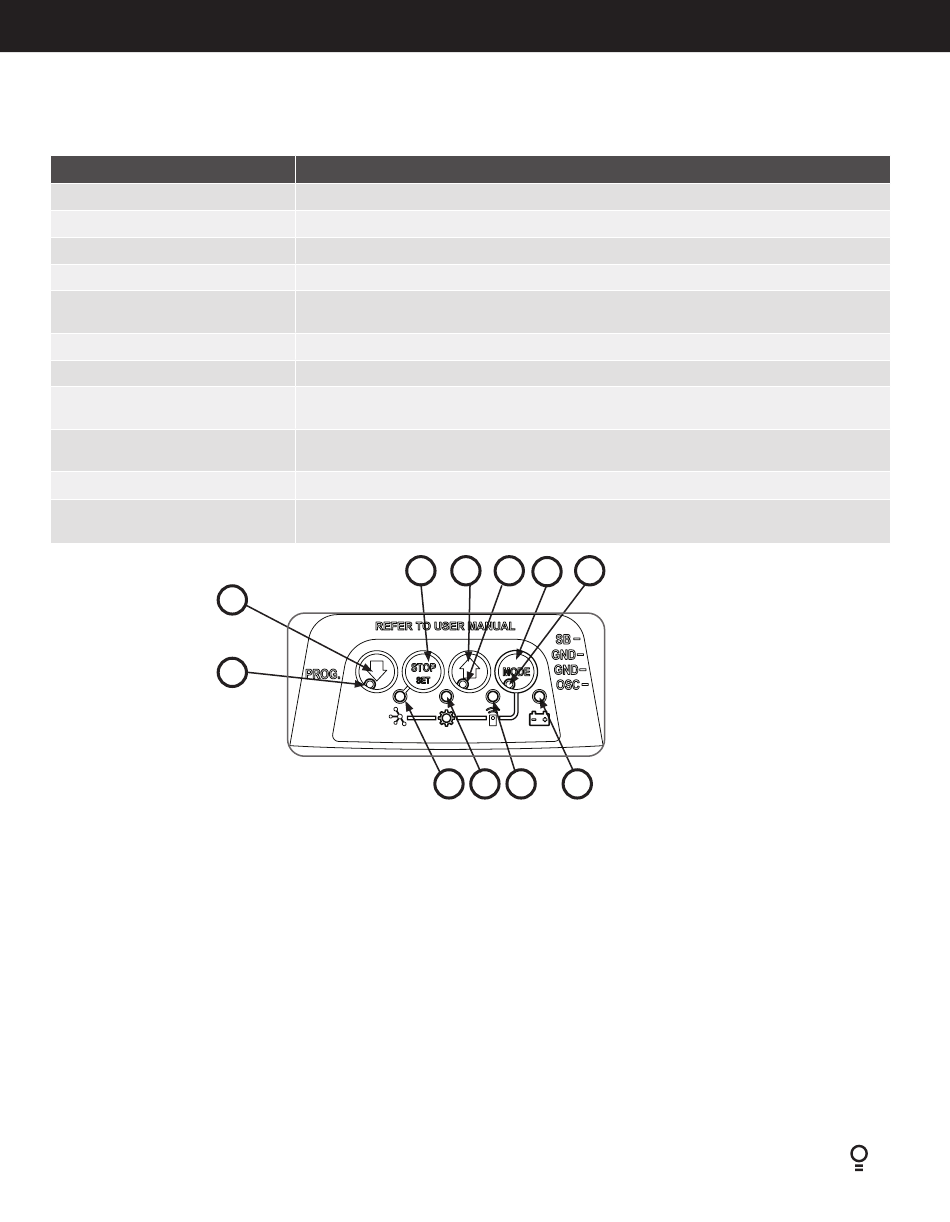

7.2 User Operating Controls

Button
1. DOWN ARROW (Blue)
2. DOWN ARROW LED (Blue)
3. STOP (Red)
4. UP ARROW (Green)
5. UP ARROW LED (Green)
6. MODE (Yellow)
7. MODE STATUS LED (Yellow)
8. BATTERY STATUS LED (Yellow)
9. REMOTE CONTROL
STATUS LED (Red)
10. ADJUSTMENT LED (Yellow)
11. NETWORK LED
(ATS-3AMB Only)
01
02
Function
Closes the door
Illuminates when the door is closed and flashes when the door is obstructed on close or stopped.
Stops the door
Opens the door
Illuminates when the door is open and flashes when the door is open with the auto-close timer running,
obstructed on opening or stopped.
Enables Load Diagnostics Mode
Illuminates when in Diagnostics Mode
Illuminates when battery is charged and flashes when battery is charging, in use or battery failed.
Battery function not available with ATS-2 model.
Flashes on remote lockout and flickers on remote control activity
Flashes a certain number of times depending on the parameter being changed.
Is a dual colour LED. Illuminates purple when hot spot active, blue when connected to cloud and
red when in production mode. Flashes different colour depending on the activity.
03 04
11 10
05 07
06
09 08
