Kit Contents - Automatic Technology Dominator Tempo ATS-2AM Instruction Manual

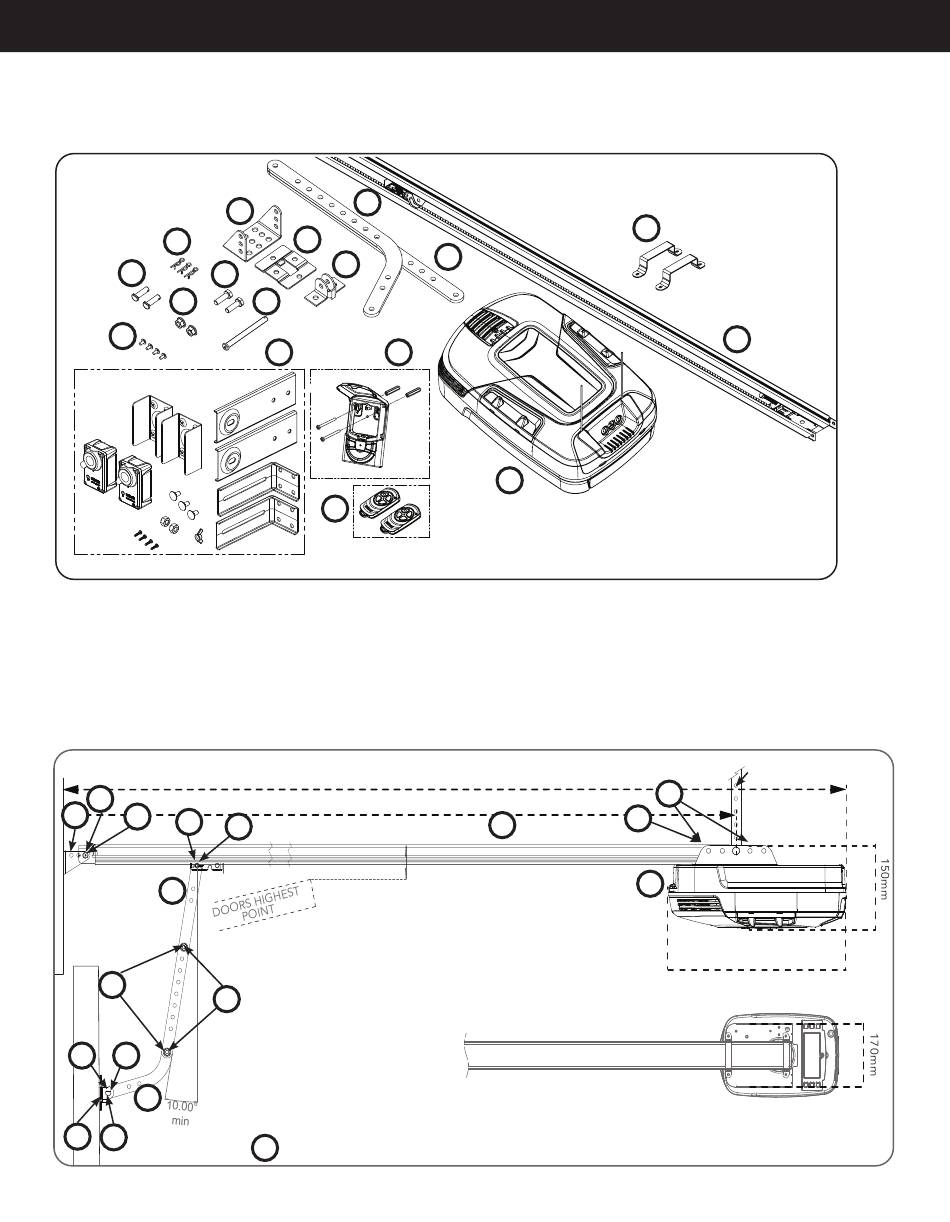

4. Kit Contents

9
12
10
13
14
1. 1 x ATS drive unit
2. 1 x Wall mount transmitter kit
3. 2 x Transmitters and batteries
4. 1 x Bent arm door attachment
5. 1 x Straight arm door attachment
6. 1 x Wall bracket TS01
7. 1 x Door bracket Locator
9
6
11
9
12
5
13
10
9 12
4
7
8
4
6
7
8
11
15 2
3
8. 1 x Door bracket
9. 3 x Pin Snap SSP 8 ZNU 31080
10. 2 x Hex Head screw M8x25
11. 1 x Pin 0890
12. 2 x Clevis Pin 0829
13. 2 x Hex Serration flange nut M8
14. 4 x Hex flange screw taptite 'S' M4 x 10
15. 1 x Wired Safety Beam kit
3374mm
3156mm*
MINIMUM HEAD
ROOM FOR STEEL
RAIL 57mm
Rail no Extension Kit 3156mm
Rail + 1 Extension Kit 3946mm
Rail + 2 Extension Kits 4736mm
* Rail refers to 3160 rail
Placed on both sides of door, 5"
15
above floor level
5
1
PLUS
16. 2 x Track Bracket
17. 1 x Pre-Assembled C-Rail
NOTE: Chain/belt in one piece rail has been tensioned by the
factory. Do not adjust the tension of the chain/timing belt.
IMPORTANT NOTE:
required, adjustment must be made only from power head end.
17
Dominator Tempo & Syncro Instruction Manual
16
17
If modification to the track length
Perforated
Angle
16
14
1
353mm
ATS-3AM & ATS-2AM
Diamond PD Power Drive : Instruction Manual
© Copyright 2019
Fig.4.1
Fig.4.2
