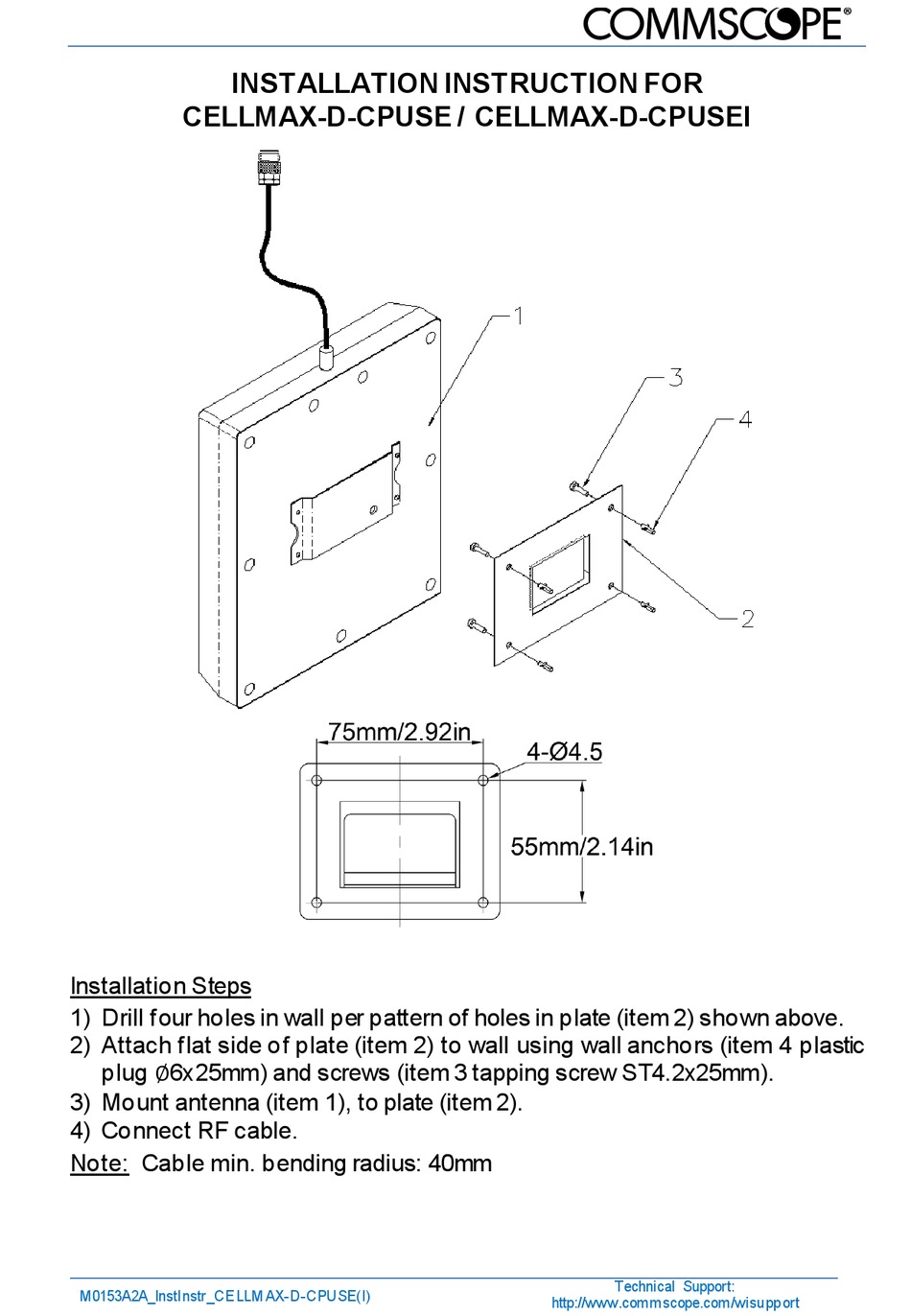

INSTALLATION INSTRUCTION FOR
CELLMAX-D-CPUSE / CELLMAX-D-CPUSEI
Installation Steps
1) Drill f our holes in wall per pattern of holes in plate (item 2) shown above.
plug ∅6x25mm) and screws (item 3 tapping screw ST4.2x25mm).
2) Attach f lat side of plate (item 2) to wall using wall anchors (item 4 plastic
3) Mount antenna (item 1), to plate (item 2).
4) Connect RF cable.
Note: Cable min. bending radius: 40mm
Technical Support:
M0153A2A_InstInstr_CELLM AX-D-CPUSE(I)
http://www.commscope.com/wisupport
