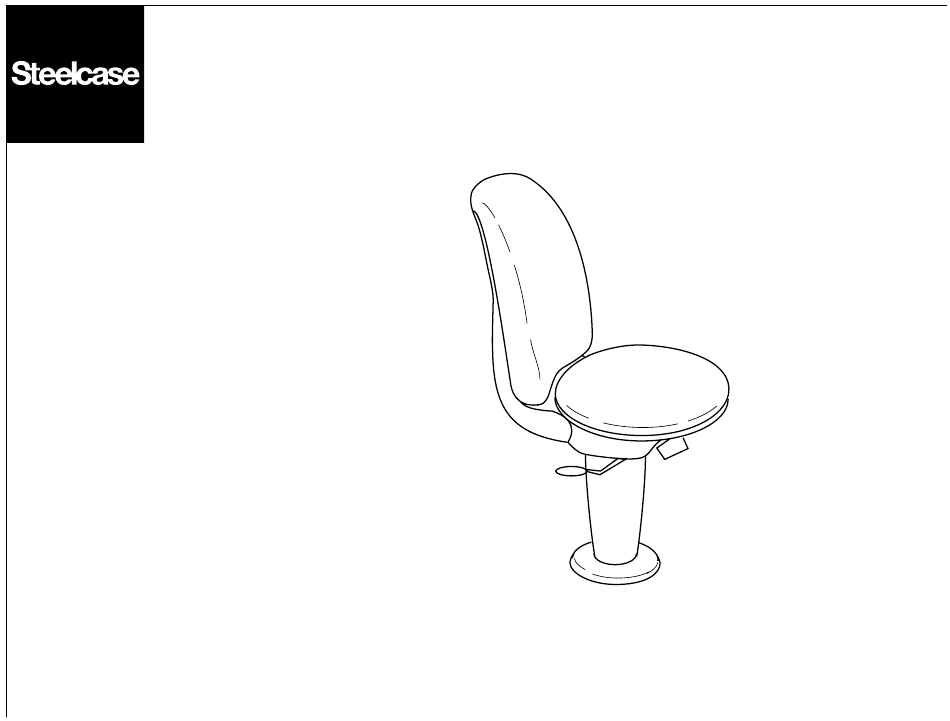

Pachinko Two Chair - Assembling Column Cover,
Dismantling Chair & Reassembling Product
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2003 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 15
U.S.A.
939504676 Rev B
Printed in U.S.A.
Advertisement
Related Manuals for Steelcase Pachinko Two Chair
Summary of Contents for Steelcase Pachinko Two Chair
- Page 1 Pachinko Two Chair - Assembling Column Cover, Dismantling Chair & Reassembling Product ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
- Page 2 Assembling Column Cover BASE FOOT Installing chair with base cover onto column: Drop base foot over column. COLUMN Attach base top to chair slide. Page 2 of 15 939504676 Rev B...
- Page 3 Snap base cover onto base top. Engage all (4) tabs. Drop chair with base cover over column and onto chair control taper making sure chair is properly engaged onto tapered column. Page 3 of 15 939504676 Rev B...
- Page 4 Dismantling Chair - 1 through 11 Removing chair with base cover and replacing seat and back cushion assembly and/or outer shells: Remove screw from outer back shell. Pull back bottom of outer back shell. Page 4 of 15 939504676 Rev B...
- Page 5 Remove two springs on chair slide. Remove two screws on chair slide. Page 5 of 15 939504676 Rev B...
- Page 6 Slide chair forward to separate the upper and lower half of the chair slide. Page 6 of 15 939504676 Rev B...
- Page 7 Using pry tool, pry outer back shell off of inner back (four places). Page 7 of 15 939504676 Rev B...
- Page 8 Remove all old push on metal fasteners from the inner back and/or the outer back shell (four places). Page 8 of 15 939504676 Rev B...
- Page 9 Remove back cushion assembly from chair control (four screws). Remove outer seat shell (five screws). Page 9 of 15 939504676 Rev B...
- Page 10 Remove seat cushion assembly from chair control (four screws). Remove plastic upright cover from seat cushion assembly (two screws). Page 10 of 15 939504676 Rev B...
- Page 11 Reassembling Product Build Up: Position upright cover onto seat cushion assembly by gauging the upright cover against the two locating bosses on the moldwood inner seat and screw down with two screws. Position seat cushion assembly onto chair control and screw in place with four screws. Page 11 of 15 939504676 Rev B...
- Page 12 Push on four new push on metal fasteners onto back cushion assembly inner. Slide back cushion assembly onto chair control upright making sure upright cover is positioned between the back cushion assembly and upright. Secure with four screws. Page 12 of 15 939504676 Rev B...
- Page 13 Position outer seat shell by aligning the two screws that hold the seat bracket to the seat cushion assembly with the clearance holes in the outer seat shell. Screw down with five screws. Position outer back shell over push on metal fasteners on back cushion assembly and push on the outer back shell, engage all four locations.
- Page 14 Pull back outer back shell at the bottom and slide chair slide upper onto lower slide. Install two slide screws. Page 14 of 15 939504676 Rev B...
- Page 15 Install two slide springs. Push in on bottom of outer back shell and install screw, screwing into hole in chair control upright. Page 15 of 15 939504676 Rev B...
