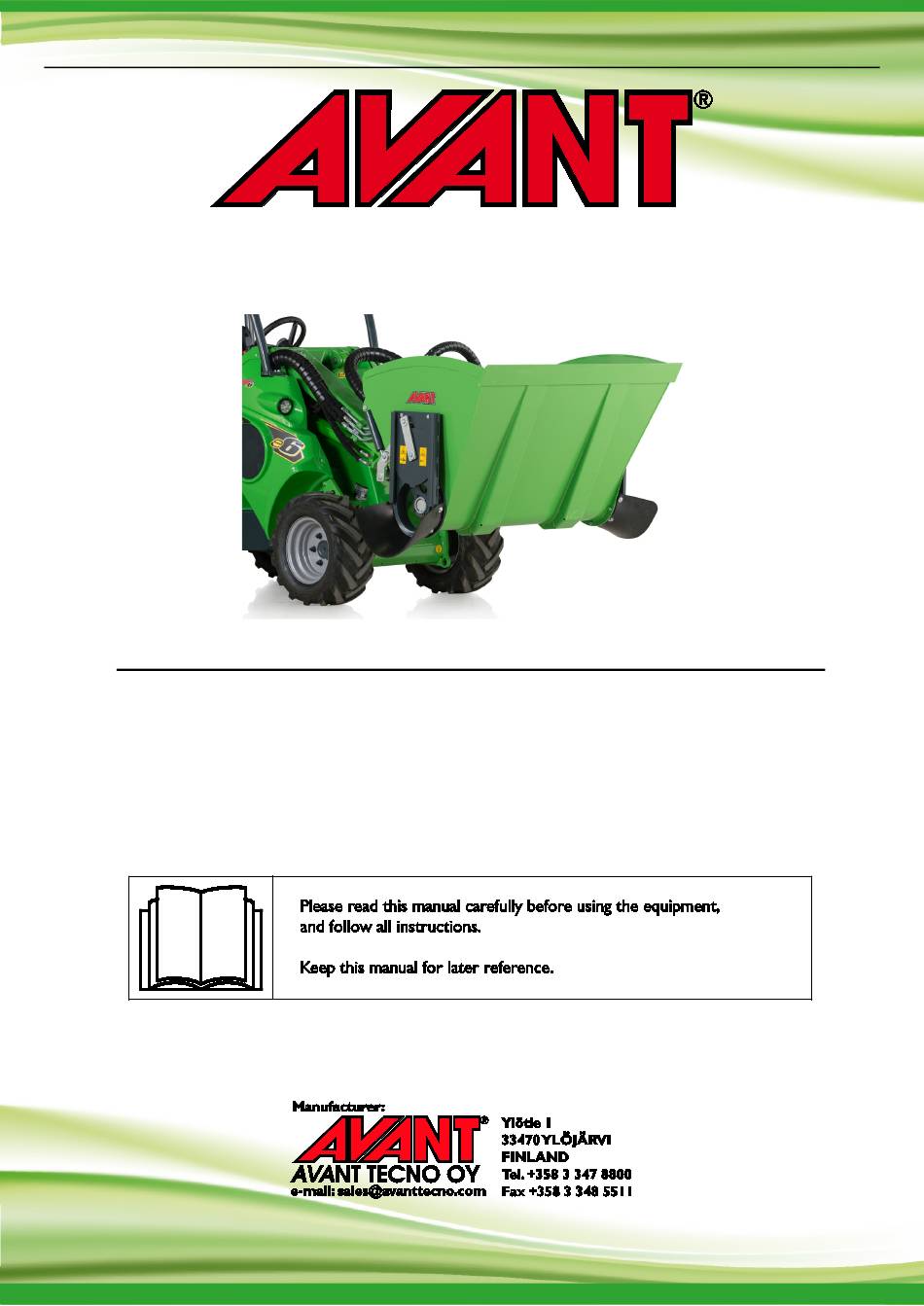

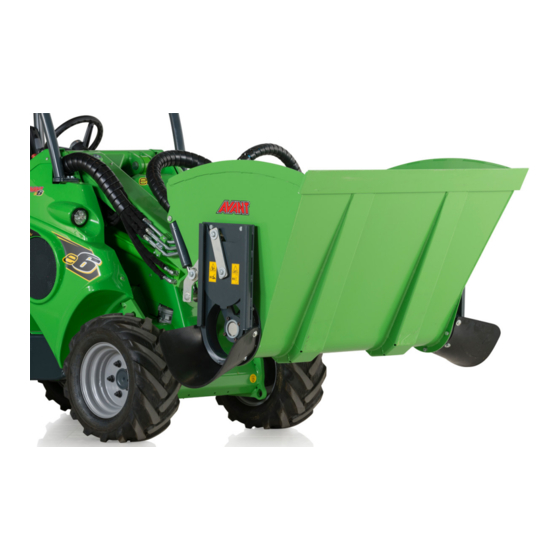

  • Page 1 English Grain/flour dispenser bucket 2020 1 Operator's Manual for Attachment Grain/flour dispenser bucket Product number: With manual side hatches A435290 With hydraulic side hatches A439905 www.avanttecno.com A439964 2020 1 EN 2019-...
  • Page 2 Grain/flour dispenser bucket 2020 1...

  • Page 3: Table Of Contents

    Grain/flour dispenser bucket 2020 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE BUCKET ..............7 4. TECHNICAL SPECIFICATIONS ......................11 Safety labels and main components of the attachment.................. 11 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (32) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

    2. Designed purpose of use The AVANT Grain/flour dispenser bucket is an attachment that is suitable for use with AVANT multi purpose loaders that are shown in Table 1. It is intended for distributing flour, crushed grain, or similar materials of feed in granule form.

  • Page 7: Safety Instructions For Using The Bucket

    7 (32) 3. Safety instructions for using the bucket Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (32)  Before starting the dispenser bucket, make sure that there are no foreign objects in the bucket that could be ejected from the attachment or that could damage the equipment.  Be sure not to tilt the bucket too far up to prevent material from spilling from the WARNING bucket.
  • Page 9 9 (32) Risk of crushing and severing of limbs - Always stop the attachment before going near it. Going near a running attachment creates a risk of crushing and severing of hands or feet because of rotating auger and related components. Always follow safe DANGER stopping procedure.
  • Page 10 10 (32) Remember to wear proper personal protective equipment:  The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...

  • Page 11: Technical Specifications

    30-40 l/min, 20 MPa (200 bar) Maximum input of hydraulic energy: 60 l/min, 20 MPa (200 bar) Suitable Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment.
  • Page 12 12 (32) Table 3 - Decal locations and warning messages Decal Warning message A46771 Misuse hazard - Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and cutting hazard, keep clear of moving parts, do not leave the equipment running.

  • Page 13: Assembling The Attachment

    Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1:  Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.

  • Page 14: Connecting And Disconnecting Hydraulic Hoses

    5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 15 15 (32) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.

  • Page 16: Electric Connection

    16 (32) 5.2 Electric connection Electric functions of the attachment: The Grain/flour dispenser bucket is available either manual or with hydraulic side hatch adjustment. When the bucket is equipped with hydraulic side hatch adjustment, it needs an electric supply from the loader in order to operate.
  • Page 17 17 (32) If your loader is  equipped with the attachment control switch pack, and  the loader is manufactured after 2016: If the loader is equipped with the attachment control switch pack, and the electric socket integrated in the multiconnector, the electric harness of the attachment is connected when the multiconnector coupled.

  • Page 18: Using The Bucket

    18 (32) 6. Using the bucket Practise the use of the attachment and its controls in an open and safe area. If you are unfamiliar with the loader in use, it is recommended to practise its use without any attachments. Risk of entanglement - Always stop the attachment before leaving the driver’s seat.

  • Page 19: Operator Qualification

    19 (32) Risk of crushing - Ensure that the parking brake of the loader is engaged when working near the attachment. Use additional blocks if needed. Whenever possible, lower WARNING the attachment firmly on the ground. Risk of falling from height and crushing under bucket or loader - Never use a bucket as a lifting platform or to carry people.

  • Page 20: Checks Before Use

    20 (32) 6.2 Checks before use Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the  stability and handling of the loader. Check that the attachment is intact and that the rotating parts can rotate freely, and that there is no ...

  • Page 21: Using The Dispenser/Hydraulic Side Hatch

    21 (32) 6.3.1 Using the dispenser/hydraulic side hatch  Move the auxiliary hydraulics control lever to its locking position when ready to start operating the dispenser to the right or to lift the selected hydraulic hatch. Operate the dispenser bucket with moderate engine rpm and with one-pump setting of the auxiliary hydraulics (if loader is equipped with two auxiliary hydraulic pumps).

  • Page 22: Using The Hydraulic Side Hatch

    22 (32) 6.3.2 Using the hydraulic side hatch The actual hatch operation is controlled with auxiliary hydraulics control lever. First, the desired hatch must be selected with hatch control valve manually. Then, the selection between hatch and auger function has to be made as instructed below.

  • Page 23: Using The Manual Side Hatch

    23 (32) 6.3.3 Using the manual side hatch Adjust the hatch opening with manual lever (1) as shown in the adjacent figure. Lock the lever with locking pin (2). 6.3.4 Filling the bucket The bucket can be filled from a pile like a normal bucket. Correct working method is important when lifting material from a pile, as lifting material from a pile requires the most power from the loader.

  • Page 24: Working On Uneven Ground

    24 (32)  Drive slowly, using moderate to high engine rpm.  Once the tip of the bucket is in the pile, begin to tilt the bucket.  Scoop the bucket full by simultaneous driving forward, tilting, and lifting the bucket. ...

  • Page 25: Transport Position

    25 (32) 6.4 Transport position When driving with loader, keep Grain/Flour dispenser bucket in approximately upright position and close to the loader as shown in adjacent figure. Adjust the drive speed according to the operating conditions and surface. Always drive slowly while operating the bucket.
  • Page 26 26 (32) Correct storage position: To ensure the stability of the bucket, always store it in position shown in adjacent figure. Empty at least most of the material from the bucket before storage.

  • Page 27: Maintenance And Service

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and...

  • Page 28: Cleaning The Attachment

    28 (32) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment.

  • Page 29: Warranty Terms

    29 (32) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 30 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen kauha; Avant-kuormaajan työlaite Hydraulisk skopa; arbetsredskap för Avant lastare A435290 Hydraulic bucket; attachment for Avant loaders A439905 20.1.2020 Ylöjärvi, Finland Risto Käkelä,...
