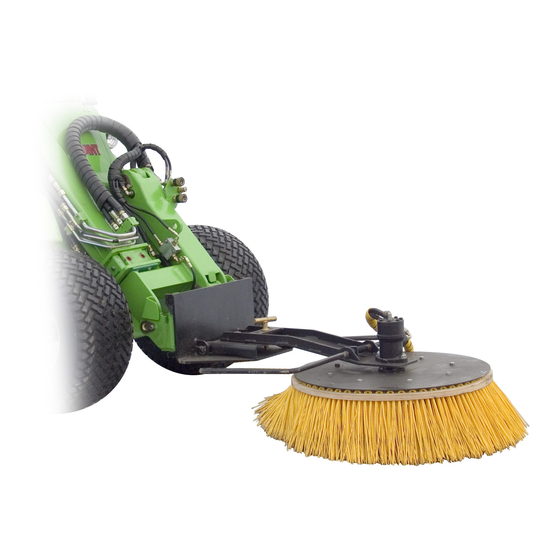

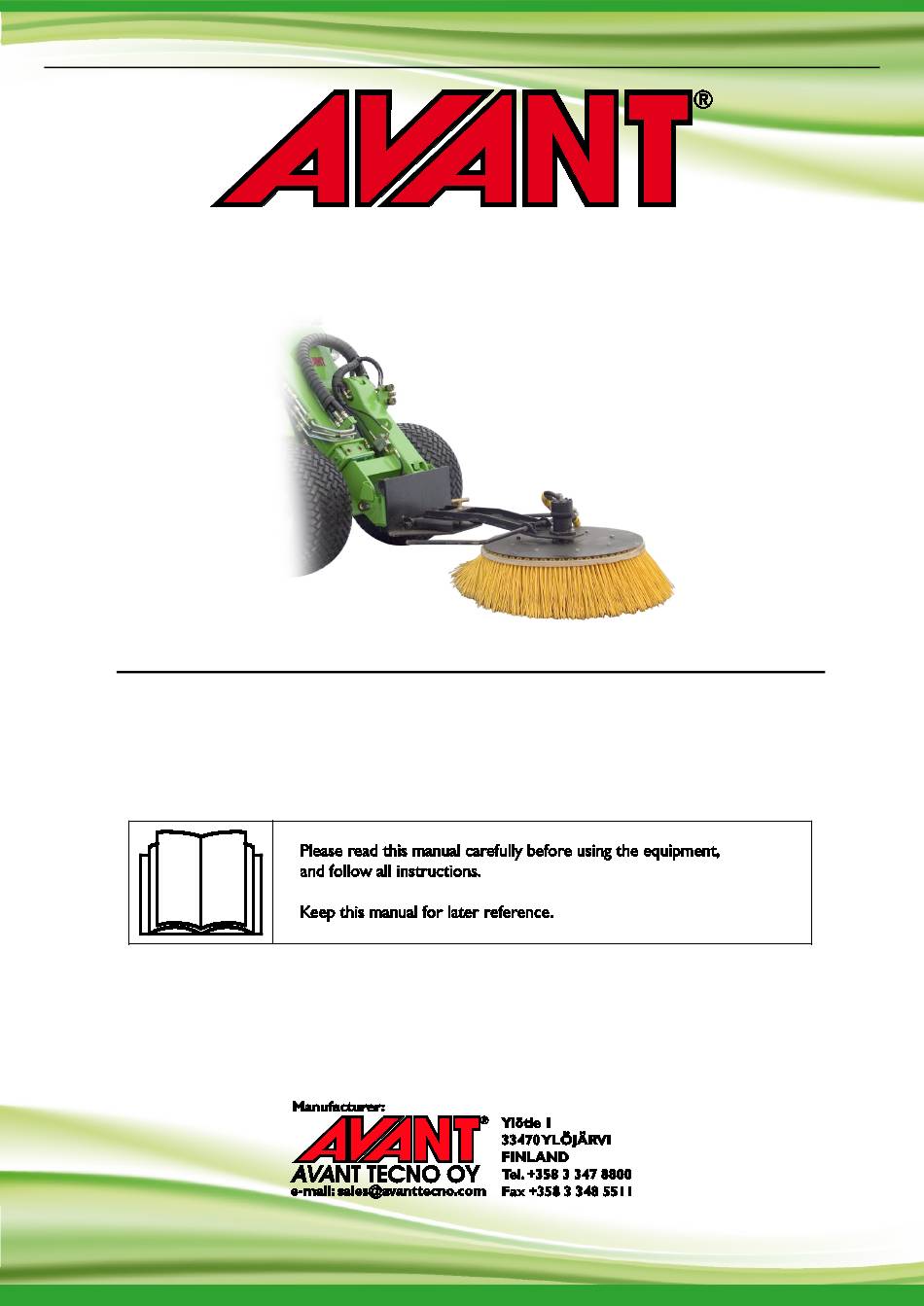

- Page 1 English Carousel broom 2018 2 Operator's Manual for Attachment Carousel broom Product number Carousel Broom A2971 www.avanttecno.com A432926 2018 2 EN 2016-...
- Page 2 Carousel broom 2018 2...
-
Page 3: Table Of Contents
Carousel broom 2018 2 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ........................... 9 4. TECHNICAL SPECIFICATIONS ......................10 Safety labels and main components of the attachment.................. 10 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (26) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
6 (26) 2. Designed purpose of use The AVANT Carousel broom is an attachment suitable for use with AVANT multi purpose loaders, as shown in Table 1. The Carousel broom sweeps the material from floors and other hard surfaces efficiently aside, without the need to sweep the same location many times. -
Page 7: Safety Instructions For Using The Attachment
7 (26) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (26) Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments. Pay attention to the surroundings and any other persons and machines moving in the WARNING vicinity.
-
Page 9: Personal Protective Equipment
9 (26) Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off. -
Page 10: Technical Specifications
25 - 55 l/min Maximum input of hydraulic energy: 60 l/min, 22,5 MPa (225 bar) Compatible AVANT loaders: See Table 1, Designed purpose of use Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 11 11 (26) Table 3 - Decal locations and warning messages Decal Warning message 1 A46771 Misuse hazard - Read instructions before use. 2 A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. 3 A46806 Hazard of entanglement, abrasions, and friction - Keep clear of all moving parts.
-
Page 12: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 13: Connecting And Disconnecting Hydraulic Hoses
Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 14 14 (26) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 15: Using The Broom
15 (26) 6. Using the broom Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 16: Checks Before Use
16 (26) Checks before use Before starting work, remove large items that can’t be collected with the broom from the working area. Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the ... -
Page 17: Operating The Broom
17 (26) Operating the broom To rotate the broom: Move auxiliary hydraulics control lever of the loader towards its locking position (or use the red button of the electric joystick) to rotate broom counterclockwise. Stop the attachment by releasing the lever to neutral position. Move auxiliary hydraulics... - Page 18 18 (26) If your loader is equipped with a telescopic boom, you can utilize it for a better view to the working area. Set the loader engine rotating speed according to the material being handled and operating conditions. Moderate engine rpm are usually enough to rotate the broom adequately so that the broom sweeps the material neatly to its side.
-
Page 19: Floating Mechanism
19 (26) Floating mechanism The Carousel broom is equipped with a mechanical floating system, which allows the broom to follow the contours of the terrain without moving the loader boom. For the best performance of the broom, it is important, that the floating is set correctly on an even surface. -
Page 20: Broom Side Shift
20 (26) Broom side shift The carousel broom may be turned to sides to making it easy to brush near the walls. There are multiple possible side shift positions; the figure below illustrates the extreme positions (± 57 degrees). Fit the pin through one of the three holes on the broom beam and one of the five holes on the broom frame. To make the adjustment easier, tilt the loader quick coupling plate forward. -
Page 21: Storing The Attachment
21 (26) Storing the attachment To prevent the bristles from bending, it is important to ensure that the broom is stored correctly. If the broom is left in a way that all the weight of the broom is applied on the brush, the bristles may bend permanently and the performance of the broom will decrease. -
Page 22: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 23: Inspection Of Metal Structures
23 (26) Inspection of metal structures Also the metal structures of the attachment must be inspected regularly. Check visually for damages and inspect the quick attach brackets and their surrounding area carefully. The attachment must not be used if it is deformed, cracked, or torn. -
Page 24: Warranty Terms
24 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 25 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen harjalaite; Avant-kuormaajan työlaite Hydraulisk borste; arbetsredskap för Avant lastare A2971 Hydraulic broom; attachment for Avant loaders 12.10.2018 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör /...
