AVANT A21048 Operator's Manual For Attachment

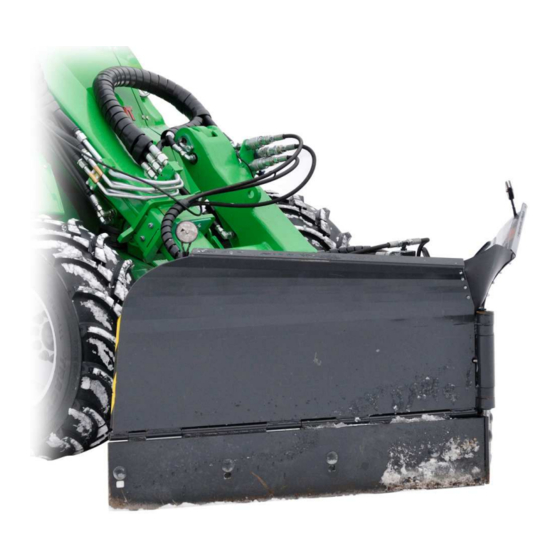

Snow plow
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
?
Operator's Manual for Attachment
Operator's
Operator's
Operator's
Manufacturer:
Manual for Attachment
Manual for Attachment
Manual for Attachment
Product number:
1800 mm plow for400-700-series loaders:
2200 mm plow for400-700-series loaders:
Please read this manual carefully before using the equipment, and follow
all instructions.
Keep this manual for later reference.
S
n
o
w
P
l
o
w
S
n
o
w
P
l
o
w
Sales:
Snow Plow 2014 1
A21048
A34368
