Log grab 2021 1
Operator's Manual for Attachment
Log grab
Product number
A33503
www.avanttecno.com
A446055 2021 1 EN 2016-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A33503 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A33503

Summary of Contents for AVANT A33503

  • Page 1 English Log grab 2021 1 Operator's Manual for Attachment Log grab Product number A33503 www.avanttecno.com A446055 2021 1 EN 2016-...
  • Page 2 Log grab 2021 1...

  • Page 3: Table Of Contents

    Log grab 2021 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ..........................9 Safe shutdown procedure ............................9 4.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (28) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

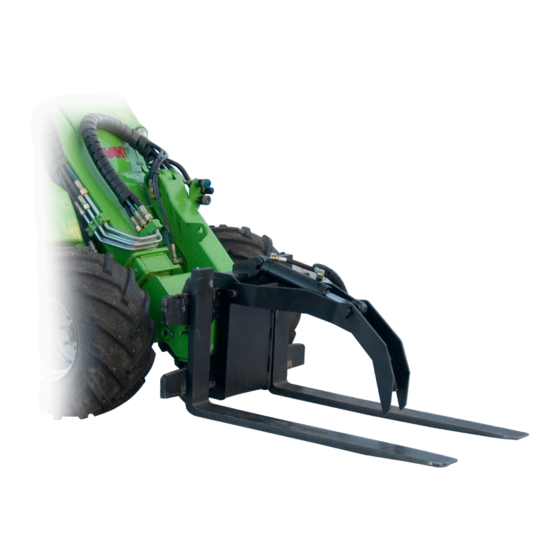

    2. Designed purpose of use The AVANT Log grab is an attachment suitable for use with AVANT compact loaders shown in Table 1. The Log grab is intended to be used only when attached as instructed to Avant pallet forks A21047, A21039 or A36589.

  • Page 7: Safety Instructions For Using The Attachment

    7 (28) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (28)  Observe maximum load indicated in the operator’s manual of the loader. Be especially careful when the load sensor indicator is activated, if your loader is fitted with a load sensor system.  Make sure that the surface can bear the total load. Also follow the correct tyre WARNING pressure settings.

  • Page 9: Personal Protective Equipment

    9 (28) 3.1 Personal protective equipment Remember to wear proper personal protective equipment:  The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...

  • Page 10: Technical Specifications

    1 200 kg 1 800 kg Maximum operating pressure: 22,5 MPa (225 bar) Suitable Avant loaders: See Table 1 4.1.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment.
  • Page 11 11 (28) Table 3 - Decal locations and warning messages Decal Warning message A46771 Misuse hazard - Read instructions before use. Crushing hazard - Do not go under a A46772 raised attachment; stay away from raised equipment. A46803 Pinching and cutting hazard, keep clear of moving parts, do not leave the equipment running.

  • Page 12: Attaching The Attachment

    12 (28) 5. Attaching the attachment Attaching the attachment to the loader is quick and easy, but it must be done carefully. Attach the pallet forks to the loader as shown in the manual of the pallet forks before attaching the Log grab. If the attachment is not locked to the pallet forks, it may detach from the loader and cause a hazardous situation.
  • Page 13 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.

  • Page 14: Connecting And Disconnecting Hydraulic Hoses

    5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 15 15 (28) Disconnecting hydraulic hoses: Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the control lever of the auxiliary hydraulics to its neutral position. When uncoupling the attachment, always disconnect the hydraulic couplings before unlocking the quick coupling plate, to prevent hose damage and any oil spills.

  • Page 16: Instructions For Use

    16 (28) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.
  • Page 17 17 (28) Risk of falling from height and crushing under bucket or loader - Never use a bucket as a lifting platform or to carry people. Never use the loader or its attachments to lift WARNING persons or as any kind of work platform even temporarily. Never climb on the attachment.

  • Page 18: Checks Before Use

    18 (28) 6.1 Checks before use Check that the pallet forks and the Log grab are positively attached to the frame of the pallet forks.  Check that the locking bracket of the Log grab is in its place and that the equipment is intact. Before first use, check the hydraulic fittings and all possible movements of the attachment.

  • Page 19: Operating The Log Grab

    19 (28) 6.3 Operating the Log grab Avoid sudden loss of stability - Never drag loads from e.g. a shelf. If the load that you want to lift from height is too heavy, the loader can tip forward when reversing with the loader.

  • Page 20: Maximum Load

    20 (28) Controlling the grapple: Move auxiliary hydraulics control lever towards locking position electric buttons of the optional electric joystick) to close the grapple. The lever should not be left locking position. Move the lever away from the locking position to open the grapple.

  • Page 21: Working On Uneven Ground

    21 (28) 6.5 Working on uneven ground Extra caution is needed when using the equipment on inclined terrains and slopes. Drive slowly especially on inclined, uneven, or slippery surfaces, and avoid sudden changes in speed or direction. Operate the controls of the loader with careful and smooth movements.

  • Page 22: Storage With Pallet Forks

    22 (28) 6.7.1 Storage with pallet forks short term storage attachment can be uncoupled from the loader together with the pallet forks. Place them on blocks of wood or on a pallet, for example. A larger pallet or two pallets may be necessary to ensure the stability of the complex during storage.

  • Page 23: Maintenance And Service

    Repair all leaks immediately after detecting them; a small leak can quickly grow into a big one. Operate the attachment only with type of hydraulic oil that is accepted for use in Avant loaders. Risk of high pressure fluid injection through skin - Release residual pressure before maintenance.

  • Page 24: Cleaning The Attachment

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely.

  • Page 25: End Of Life Disposal

    25 (28) 8. End of life disposal When the attachment is at the end of its useful life recycle and dispose of the attachment properly. Dismantle the attachment and separate the different materials, such as plastic, steel, rubber, and oils, for example. Drain and collect all oils and handle them by following the current local regulations.

  • Page 26: Warranty Terms

    26 (28) 9. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 27 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen puukahmari; Avant-kuormaajan työlaite Hydraulisk Timmergrip; arbetsredskap för Avant lastare A33503 Hydraulic Log grab; attachment for Avant loaders 25.2.2021 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
