AVANT A36841 Operator's Manual For Attachment

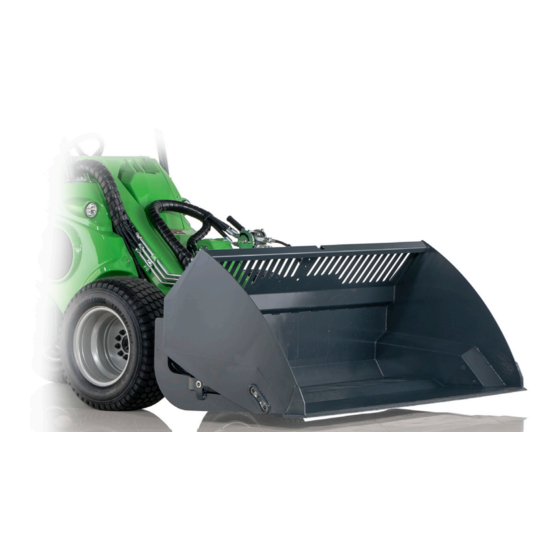

Xl high tip bucket
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English
www.avanttecno.com
A438864 2019 1 EN 2019-
Operator's Manual for Attachment
XL High tip bucket
Product number
1450 mm
A36841
1800 mm
A21273
XL High tip bucket 2019 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A36841 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A36841

Summary of Contents for AVANT A36841

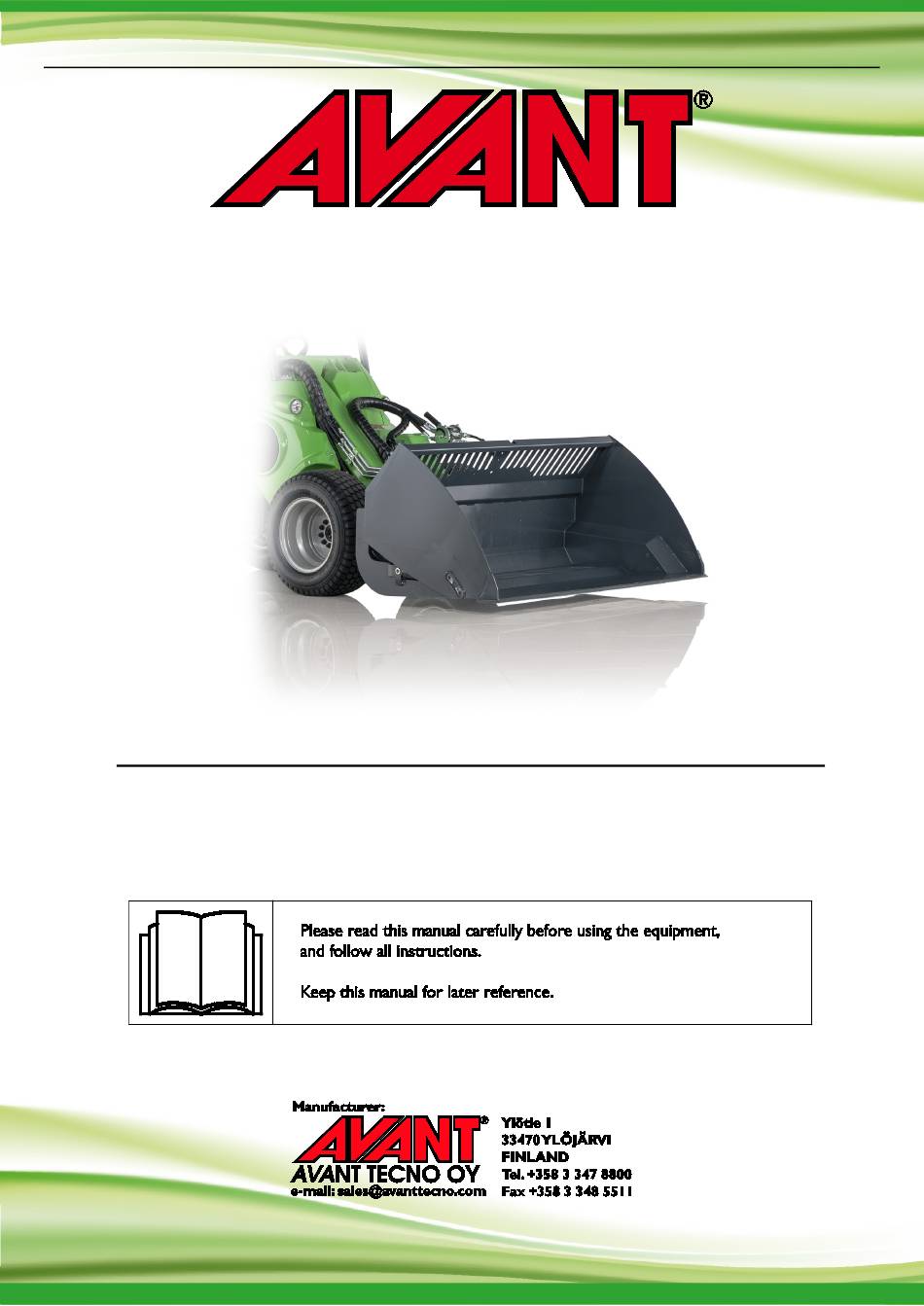

  • Page 1 English XL High tip bucket 2019 1 Operator's Manual for Attachment XL High tip bucket Product number 1450 mm A36841 1800 mm A21273 www.avanttecno.com A438864 2019 1 EN 2019-...
  • Page 2 XL High tip bucket 2019 1...

  • Page 3: Table Of Contents

    XL High tip bucket 2019 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 4. TECHNICAL SPECIFICATIONS ....................... 10 Safety labels and main components of the attachment ..................10 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (24) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

    6 (24) 2. Designed purpose of use The AVANT XL High tip buckets are attachments that are designed and manufactured to suite AVANT multi purpose loaders that are shown in Table 1. They are versatile buckets for earth-moving tasks, material handling, levelling and snow clearing work.

  • Page 7: Safety Instructions For Using The Attachment

    7 (24) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (24)  Make sure that overhead clearance is sufficient. Hitting an overhead obstacle may cause the loader to tip over. Keep a safe distance from electric cables, lamps, or other electric systems; hitting live parts may cause electric shock. ...
  • Page 9 9 (24) Risk of tipping over - Avoid overload. Loader can tip over when handling too heavy loads, or because of dynamic movements caused by driving with and handling of a heavy WARNING load. Do not extend the telescopic boom when the load approaches the lifting capacity of the loader, or when the loader boom is in horizontal position.

  • Page 10: Technical Specifications

    30 l/min Maximum input of hydraulic energy: 22,5 MPa (225 bar) Compatible AVANT loader models: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment.
  • Page 11 11 (24) Table 3 - Decal locations and warning messages Decal Warning message Misuse hazard - Read instructions before 1 A36771 use. Crushing hazard - Do not go under a 2 A36772 raised attachment; stay away from raised equipment. Pinching and cutting hazard, keep clear of moving parts, do not leave the 3 A36803 equipment running.

  • Page 12: Attaching The Attachment

    Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1:  Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.

  • Page 13: Connecting And Disconnecting Hydraulic Hoses

    5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 14 14 (24) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.

  • Page 15: Instructions For Use

    15 (24) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Risk of tipping over - Avoid overload.

  • Page 16: Using A Bucket

    16 (24) 6.2 Using a bucket Correct working method is important when lifting material from a pile, as lifting material from a pile requires the most power from the loader. Use high engine rpm and read the instructions how to operate the loader correctly from the operator’s manual of the loader.
  • Page 17 17 (24) Move auxiliary hydraulics control lever towards locking position electric buttons of the optional electric joystick) to unload the bucket. The lever should not be left locking position. Move the lever away from the locking position to lower the bucket. bucket lowered even...

  • Page 18: Material Handling

    18 (24) If the loader is not equipped with the boom self levelling: Prevent material from falling on you - Monitor the position of the bucket. When lifting material to a high level, the bucket plate must be simultaneously tilted to prevent the load from falling from on the loader or the operator.

  • Page 19: Working On Uneven Ground

    ±45º (model A36505) or ±360º (model A424406). Read the instructions provided with the tilt adapter and in the operator's manual of the loader. More information about the tilt adapters is available from your AVANT retailer or from the AVANT web pages at www.avanttecno.com.

  • Page 20: Maintenance And Service

    Repair all leaks immediately after detecting them; a small leak can quickly grow into a big one. Operate the attachment only with type of hydraulic oil that is accepted for use in Avant loaders. Risk of high pressure fluid injection through skin - Release residual pressure before maintenance.

  • Page 21: Cleaning The Attachment

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely.

  • Page 22: Warranty Terms

    22 (24) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 23 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen kauha; Avant-kuormaajan työlaite Hydraulisk skopa; arbetsredskap för Avant lastare 1450 mm A36841 Hydraulic bucket; attachment for Avant loaders 1800 mm A21273 19.11.2019 Ylöjärvi, Finland...

This manual is also suitable for:

A21273
