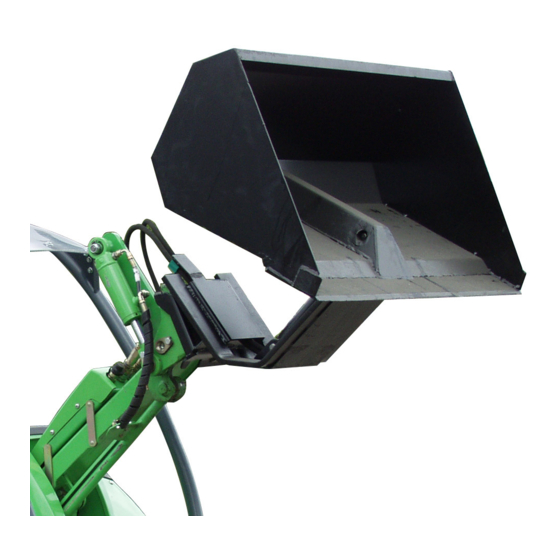

High tip bucket
200-series loaders:
300-700-series loaders:
High tip buckets 2011 1
A21092
A2631
A2824
A21273
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVANT A21092
Summary of Contents for AVANT A21092
- Page 1 Operator’s Operator’s manual for Attachment manual for Attachment High tip bucket Product number: 200-series loaders: A21092 300-700-series loaders: A2631 A2824 A21273 Please read this manual carefully before using the equipment, and follow all instructions. Keep this manual for later reference.
-
Page 2: Table Of Contents
High tip buckets 2011 1 CONTENTS 1. Foreword..........................3 2. Designed purpose of use ......................3 3. Safety instructions for using the buckets ..................3 4. Bucket specifications........................4 5. Assembly of the bucket ......................5 ....................5 5.1. Mounting the bucket to the loader ..............7 5.2. -
Page 3: Foreword
3(12) 1. Foreword Avant Tecno Oy would like to thank you for your purchase of this AVANT attachment. It has been designed and manufactured on the basis of years of product development and experience. By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure the reliable operation and long service life of the equipment. -
Page 4: Bucket Specifications
(528) 300-600 400-700 Suitable AVANT loader 600-700 The suitability recommendations are based on the width of the loader model, its lifting capacity and breakout force. Do not use a bucket that is too wide for the loader when handling heavy materials. As the width of the bucket increases, the available breakout force (tilting power) decreases, making it more difficult to use the bucket effectively. -
Page 5: Assembly Of The Bucket
These instructions are applicable to mounting the bucket to the boom quick attach plate of AVANT loaders that have standard quick attach locking. If your machine is equipped with a hydraulic locking and/or serial quick attach system, refer to the relevant manuals for... - Page 6 6(12) The attachment is mounted to the AVANT loader boom quick attach plate and the counterpart on the attachment. The locking is semi-automatic; the locking latches are released as the locking pins hit the pin guides when the boom front plate is tilted towards the loader (300-700-series) or the locking pin hits the boom (200-series).
-
Page 7: Connecting And Disconnecting The Hydraulic Fittings
7(12) 5.2. Connecting and disconnecting the hydraulic fittings The two hydraulic fittings of the bucket are connected to corresponding fittings on the loader. The hoses should be connected so that the fittings with coloured caps are connected. This way the auxiliary hydraulics control lever will move the bucket the same way every time it is used. -
Page 8: Operation
8(12) At the first use, the hydraulic hoses and the cylinder may have air trapped in them, which causes the bucket to move inaccurately. The hydraulic system will bleed itself, when the bucket is tilted to its extreme positions a few times. 6.1. -
Page 9: Inspections, Maintenance And Servicing
If there are signs of leaking, to check the component, hold up a piece of cardboard in the area where a leak is suspected. Finding any of these faults means that the hydraulic hose or component in question must be replaced. Spare parts are available from your nearest AVANT retailer or service point. -
Page 10: Warranty Terms
10(12) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) for the attachment from the date of purchase. The warranty covers repair costs as follows: • Work costs are covered, if the repair is not performed at the factory. - Page 11 Maschinenrichtlinie (EG-Richtlinie 2006/42/EG mit Änderungen). Die folgende harmonisierte Normen wurden angewandt: SFS-EN ISO 12100-1, SFS-EN ISO 12100-2, SFS-EN 982, SFS-EN 474-1 Kuvaus: Avant-kuormainten kanssa käytettävä hydraulitoiminen kauha Beskrivning: Hydraulisk skopa; arbetsredskap för Avant lastare Description: Hydraulic bucket; attachment for Avant loaders Beschreibung: Hydraulische Schaufel; Anbaugerät für Avant Radlader...
