Installation/User Guide

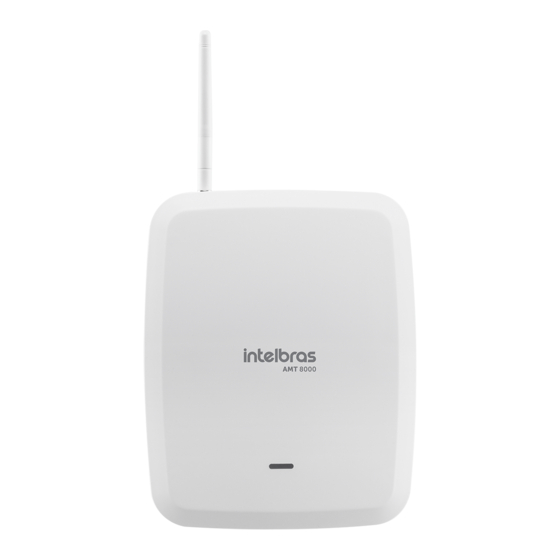

AMT 8000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMT 8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelbras AMT 8000

Summary of Contents for Intelbras AMT 8000

  • Page 1 Installation/User Guide AMT 8000...
  • Page 3 QR Code tag that also contains the MAC. The AMT 8000 central has automatic software update, and in the case of availability of new versions it is not necessary to use recorders or connection to computers to be updated, downloading the new version through Ethernet or Wi-Fi...
  • Page 4 » Perform periodic tests on it to validate weather conditions, battery level and other factors so that the site supervised by the system is always able to operate properly. » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.

  • Page 5: Table Of Contents

    Índice 1. Installation 2. Operation 2.1. Display LCD XAT 8000 ...............7 2.2.

  • Page 6: Installation

    19. Flat cable connector to output the telephone line signal to the alarm center board. 20. Pin-type connector (2 × 5-way) for firmware update of the alarm center. 21. CPU board of the AMT 8000 alarm center. 22. CPU board of the FXO 8000 telephone line module.

  • Page 7: Operation

    Warning: the AMT 8000 alarm system does not have an auxiliary output to feed other devices and no connection point must be used on the alarm center boards (center, GPRS board, telephone line board or source) for this functionality, because in addition to damaging the AMT 8000 alarm center and its accessories, it may damage the devices that are connected due to the alarm center operating at varying voltages.

  • Page 8: Menu

    Activating/deactivating on partitioned systems » Activation by master password or full password » All partitions: enter the password, the output timing will start and at the end, all partitions will be activated. » Only desired partition: press the Active key + (01 to 16 - Partition) + Password. The output timing will start and at the end, the partition chosen in the interval of (01 to 16) will be activated.
  • Page 9 » Cloud: will display whether the center is connected to Intelbras Cloud for remote access and settings through our applications and what type of access is being used, and in case of use of an Ethernt or Wi-Fi network the Eth. marker will remain marked.

  • Page 10: Automatic Update

    2.5. Automatic update The AMT 8000 center has an automatic software update, and in case new versions are available, it is not necessary to use recorders or connect to computers to be updated, downloading the new version through Ethernet or Wi-Fi connections.
  • Page 11 » I = 1: Spanish » I = 2: English Note: functionality available from version 1.0.1 of the XAT 8000 keyboard and Version 1.2.3 of the AMT 8000 control panel. » Wireless keyboard registration Enter + 620 + NT + Enter + Activate the keyboard by pressing the synchronization key.
  • Page 12 » Change messages Enter + GM + Active + User, device, partition or zone + Enter. GM = message group from 1 to 8. User, device, partition or zone = in case of messages for zone 1 to 64, device from 01 to 16, partition from 01 to 16 and in case of user from 00 to 99.
  • Page 13 Atv/Dtv only Partition 4 Atv/Dtv only Partition 5 Atv/Dtv only Partition 6 Atv/Dtv only Partition 7 Atv/Dtv only Partition 8 Atv/Dtv only Partition 9 Atv/Dtv only Partition 10 Atv/Dtv only Partition 11 Atv/Dtv only Partition 12 Atv/Dtv only Partition 13 Atv/Dtv only Partition 14 Atv/Dtv only Partition 15 Atv/Dtv only Partition 16...
  • Page 14 » Wireless infrared sensor adjustment Enter + 66 + ZZ + S + L + M + Enter. Z = zone from 01 to 64. S = Sensitivity from 0 to 3, where 0 = Minimum sensor / 1 = Normal sensor / 2 = Intermediate sensor / 3 = Maximum sensor.

  • Page 15: Ethernet/Wi-Fi/Gprs Connection

    » PGM 8000 actuator functions Enter + 50 + PGM + Enter + M + E + Enter PGM = PGM number from 01 to 16 M = PGM operating mode from 0 to 9 (0 = on / off, 1 to 8 = pulse and 9 = programmed time) E = Event that triggers the PGM from 00 to 13 External drive (applications) Password activation (passwords from 51 PGM01 to 66 PGM16)
  • Page 16 must be placed. To communicate via GPRS, the chip (SIM card) must be enabled for a package data plan. It is not ne- cessary to enable voice service. Consult the operator to acquire the most suitable plan for the information traffic from the alarm center.

  • Page 17: Remote Update

    » Programming the network mask Enter + 8130 + Enter. After the command, type the network mask number and press the Enter key to confirm. » Programming the gateway Enter + 8140 + Enter. After the command, type the network gateway number and press the Enter key to confirm. 4.3.

  • Page 18: Zone Configurations

    » Set permission for Stay mode (Night) Enter + 221 + GS + Enter + Select password + Enter. GS = group of passwords from 0 to 9, with group 0 going from 01 to 10, group 1 from 11 to 20 and so on ending with group 9 from 91 to 97.

  • Page 19: Timings

    Zone partitioning Enter + 01 + ZZ + PP + Enter. ZZ = zone from 01 to 64. PP = partition from 01 to 16. » Set password partition permission Enter + 21 + NU + GP + Enter. NU = user number from 01 to 96. GP = group of partitions, with partitions 01 to 10 in group 0 and partitions 11 to 16 in group 1.

  • Page 20: Periodic Test

    4.9. Periodic test Enable periodic testing by time. Enter + 470 + HH + MM + Enter. HH = hours of 00 to 23. MM = minutes from 00 to 59. Disable periodic testing by time Enter + 470 + Deactivate + Enter. Periodic test by time interval Enter + 471 + HHH + Enter.

  • Page 21: Settings For Monitoring And Sms

    D = days of the week from 1 to 7 (1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday, 5 = Thursday, 6 = Friday, 7 = Saturday). HH = hours of 00 to 23. MM = minutes from 00 to 59. Define holidays for self-activation/self-deactivation Enter + 404 + PP + F + DD + MM + Enter.
  • Page 22 » Reset of pending events Enter + 16 + Enter. » Forced service Enter + 14 + Enter. » Rings to answer Enter + 12 + T + Enter. T = number of rings to answer until the center answer from 0 to 20. Via Ethernet/Wi-Fi »...
  • Page 23 » Center unit IP address Enter + 8120 + Enter. After the command, type the IP address for the center unit. Note: you can only edit/insert the address manually if the DHCP function is disabled, otherwise only the IP address of the center unit will be displayed.
  • Page 24 » Programming domain name system (DNS) If you don’t want to use DNS, go to the next command, otherwise type: Enter + 803 + 1 + Enter. After the command type the DNS domain name and press the Enter key to confirm. »...
  • Page 25 Programming SMS » » Programming GPRS channel options to enable chips and SMS sending/receiving Enter + 832 + Enter. After the command, use the keys on the keyboard to enable options 1 (chip 1), 2 (chip 2), 3 (send SMS), 4 (receive SMS) and press the Enter key to confirm.
  • Page 26 Set Contact-ID code for tamper restoration type events Enter + 912 + ZZ + Enter. ZZ = zone from 01 to 64. After entering the command, enter the event value in hexadecimal format from 000 to FFF (accepts numbers from 0 to 9 and the letters B, C, D, E and F) and press the Enter key to confirm.
  • Page 27 Use to configure the system’s Contact-ID code of the restoration and opening type Table of Contents Internal event Default code Event buffer reset Date and time restarted Tamper/restore sensors Tamper/restoration expansion devices Maintenance request Set Push events code Enter + 92 + EV + Enter + Select event + Enter. EV = events group 0 to 3, group 0 being from 01 to 10 and so on to group 3 being from 31 to 35.

  • Page 28: Functions Activation/Deactivation

    4.12. Functions activation/deactivation Enter + 51 + GF + Enter + FUNCTION + Enter. GF = functions group from 0 to 5. FUNCTION = key corresponding to function. Function group 0 Function group 1 Function group 2 Function group 3 Function group 4 Function group 5 Partitioning...

  • Page 29: Homologation

    5. Homologation This product has passed the tests and certifications required by the Brazilian telecommunications equipment regulatory agency (Anatel), having its approval and results available with the following certification. 05326-18-00160 05326-18-00160 This equipment operates on a secondary basis, i.e., it is not entitled to protection against harmful interference, even from stations of the same type, and may not cause interference to systems operating on a primary basis.

  • Page 30: Warranty Term

    7. Intelbras is not responsible for the installation of this product and also for any attempts of fraud and/or sabotage on its products. Keep software and application updates, if any, up to date, as well as network protections necessary to pro¬tect against hackers.
  • Page 32 Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, nº 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 02.20 CNPJ 82.901.000/0016-03 –...
